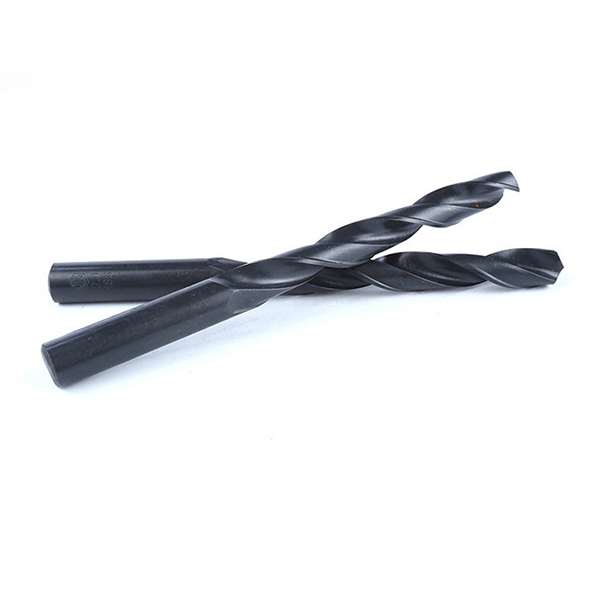

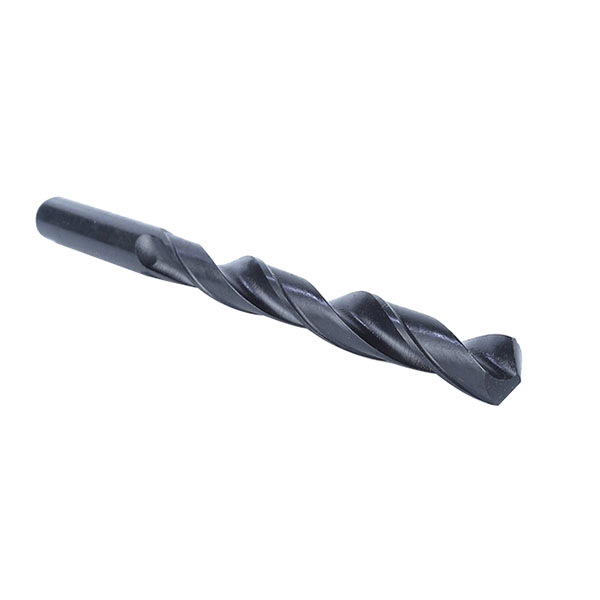

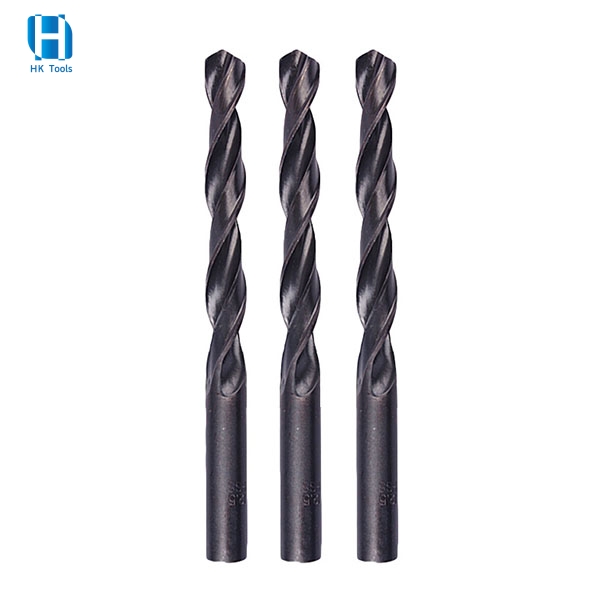

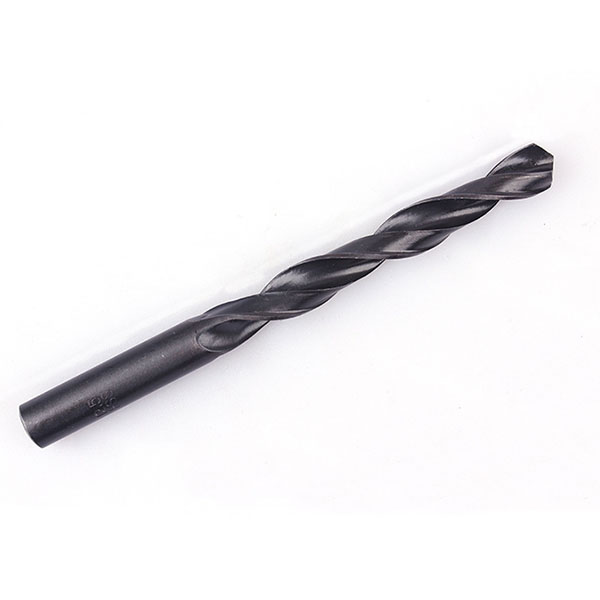

118° HSS4241 Straight Shank Twist Drill Bit For Metal Drilling
Product Information
| Product Name | DIN338 Jobber Length High Speed Steel HSS Twist Drill Bit for Metal Drilling |
| Material | HSS (Cobalt HSS-E is Available) |
| Process | Fully Ground (Rolled, Rolled & Polished, Milled are Available) |
| Standard | DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869,Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)Jobber Length (Stub Screw Machine Length, Long Taper Length,Airctraft Extensoin, Extra Long 12", 18", 24", Silver& Deming 1/2" Reduced Shank are Available) |
| Size | 0.5 - 20mm, 1/16" - 1" , A - Z, 1# - 90# |
| Point Type | 118 Degree Regular Point (135 Degree Split Point, Turbo Max Point, Pilot Point are Available) |
| Shank Type | Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,Threaded Hex Shank, Taper Shank are Available) |
| Helix Angle | Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available) |
| Web & Flute Type | Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available) |
| Surface Finish | Bright (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available) |
| Package | 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell. |
| Features | 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. 2.Universal 118° point shape for drilling a wide selection of materials. 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance. 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit. |
Product Size
DIN338 AND ANSI standard jobber length fraction
|
Diameter |
Overall length |
Flute length |
Diameter |
Overall length |
Flute length |
|
mm |
mm |
mm |
inch |
inch |
inch |
|
0.5 |
22 |
6 |
3/64" |
1-3/4" |
3/4" |
|
1.0 |
34 |
12.0 |
1/16" |
1-7/8" |
7/8" |
|
1.5 |
43 |
20.0 |
5/64" |
2" |
1" |
|
2 |
49 |
24.0 |
3/32" |
2-1/4" |
1-1/8" |
|
2.5 |
57 |
30.0 |
7/64" |
2-5/8" |
1-1/2" |
|
3.0 |
61 |
33.0 |
1/8" |
2-3/4" |
1-5/8" |
|
3.2 |
65 |
36.0 |
9/64" |
2-7/8" |
1-3/4" |
|
3.5 |
70 |
39.0 |
5/32" |
3-1/8" |
2" |
|
4.0 |
75 |
46.0 |
11/64" |
3-1/4" |
2-1/8" |
|
4.2 |
75 |
46.0 |
3/16" |
3-1/2" |
2-5/16" |
|
4.5 |
80 |
47.0 |
13/64" |
3-5/8" |
2-7/76" |
|
4.8 |
86 |
52.0 |
7/32" |
3-3/4" |
2-1/2" |
|
5.0 |
86 |
52.0 |
15/64" |
3-7/8" |
2-5/8" |
|
5.2 |
86 |
52.0 |
1/4" |
4" |
2-3/4" |
|
5.5 |
93 |
57.0 |
17/67" |
4-1/8" |
2-7/8" |
|
6.0 |
93 |
57.0 |
9/32" |
4-1/4" |
2-15/16" |
|
6.5 |
101 |
63.0 |
19/64" |
4-3/8" |
3-1/16" |
|
7.0 |
109 |
69.0 |
5/16" |
4-1/2" |
3-3/16" |
|
7.5 |
109 |
69.0 |
21/64" |
4-5/8" |
3-5/16" |
|
8.0 |
117 |
75.0 |
11/31" |
4-3/4" |
3-7/16" |
|
8.5 |
117 |
75.0 |
23/64" |
4-7/8" |
3-1/2" |
|
9.0 |
125 |
81.0 |
3/8" |
5" |
3-5/8" |
|
9.5 |
125 |
81.0 |
25/64" |
5-1/8" |
3-3/4" |
|
10.0 |
133 |
87.0 |
13/32" |
5-1/4" |
3-7/8" |
|
10.5 |
133 |
87.0 |
27/64" |
5-3/8" |
3-15/16" |
|
11.0 |
142 |
94.0 |
7/16" |
5-1/2" |
4-1/16" |
|
11.5 |
142 |
94.0 |
29/64" |
5-5/8" |
4-3/16" |
|
12.0 |
151 |
101 |
15/32" |
5-3/4" |
4-5/16" |
|
12.5 |
151 |
101 |
31/64" |
5-7/8" |
4-3/8" |
|
13.0 |
151 |
101 |
17/32" |
6-5/8" |
4-13/16" |
|
13.5 |
160 |
108 |
35/64" |
6-5/8" |
4-13/16" |
|
14.0 |
160 |
108 |
9/64" |
6-5/8" |
4-13/16" |
|
14.5 |
169 |
114 |
37/64" |
6-5/8" |
4-13/16" |
|
15.0 |
169 |
114 |
19/32" |
7-1/8" |
5-13/16" |
|
15.5 |
178 |
120 |
39/64" |
7-1/8" |
5-13/16" |
|
16.0 |
178 |
120 |
5/8" |
7-1/8" |
5-13/16" |
|
16.5 |
184 |
125 |
41/64" |
7-1/8" |
5-13/16" |
|
17.0 |
184 |
125 |
21/32" |
7-1/8" |
5-13/16" |
|
17.5 |
191 |
130 |
43/64" |
7-5/8" |
5-5/8" |
|
18.0 |
191 |
130 |
11/16" |
7-5/8" |
5-5/8" |
|
18.5 |
198 |
135 |
|||
|
19.0 |
198 |
135 |
|||
|
19.5 |
205 |
140 |
|||
|
20.0 |
205 |
140 |
Custom-tailor would be available against customers’ requirements
Application
Scope of application
Applicable Machines
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
-
