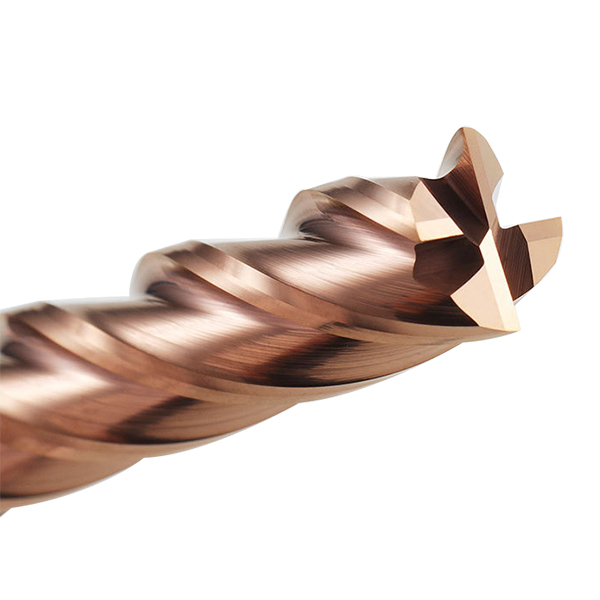

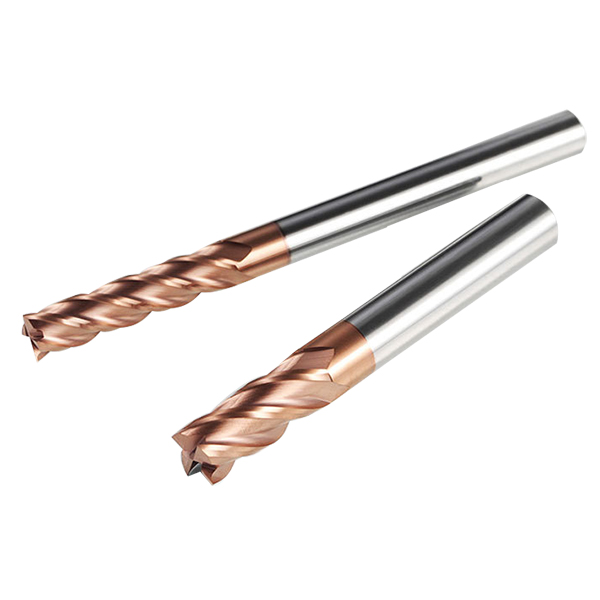

4 Flutes HRC55 Carbide Tungsten Steel Flat End Mills For CNC Tools
Product Information
| Product Name | 55 Tungsten Steel Milling Cutter |
| Type | Flat End Mill |
| Material | Tungsten Steel |
| Coated | NACO4/TiAlN |
| Flute | 2/3/4Flute |
| Helix Angle | 30/45/55 Degree |
| Cutting Hardness | 55 HRC |

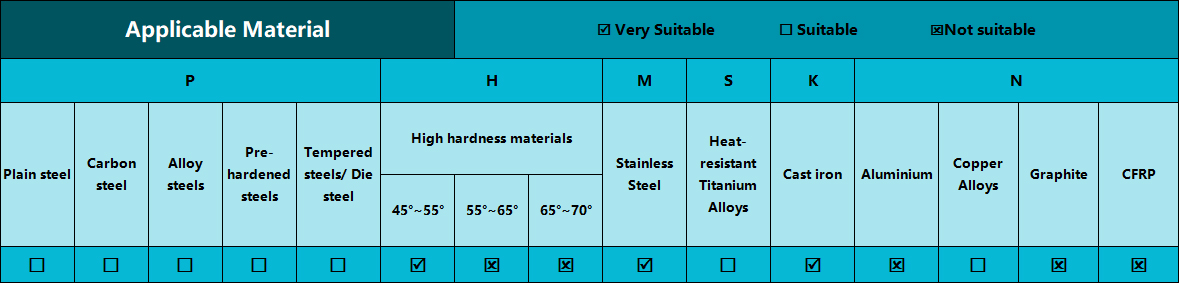

| Applied materials | Stainless Steel, Carbon Steel, Aluminum, Cast Iron etc |
| Applied Machine | Machining centers, CNC milling machines, engraving machines and other high-speed machines |
| Features | 1. Tungsten Steel Alloy: With higher wear resistance and strength, 0.2μm micro-particle tungsten steel raw material, which belongs to the special milling cutter for high-strength and high-speed cutting applications 2.35°Helix Angle: Large chip flute, the edge passes through the center; 35°helix angle is faster for chip removal, smoother cutting, and better processing efficiency. |
Product Size

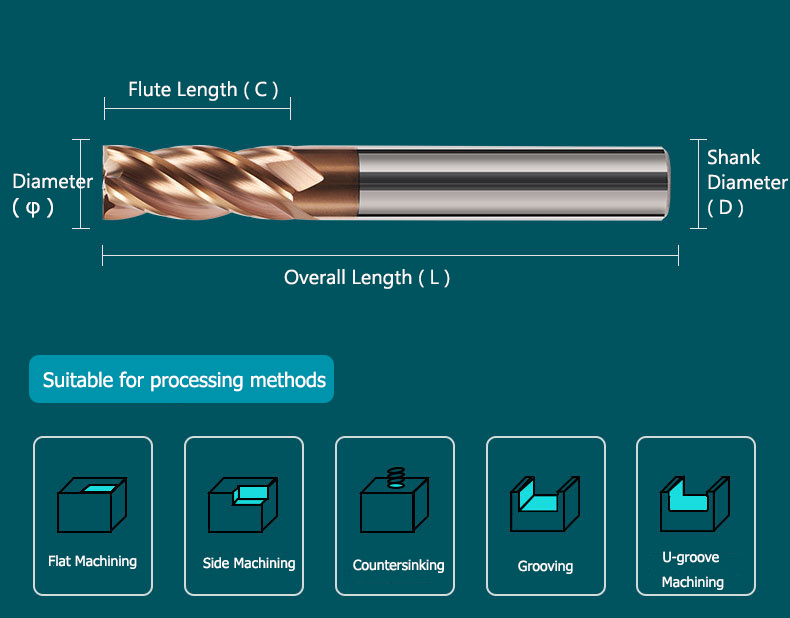

| Item No. | Diameter | Flute Length | Shank Diameter | Overall Length |
| Ф1.0x3Cx4Dx50L | 1 | 3 | 4 | 50 |
| Ф1.5x4Cx4Dx50L | 1.5 | 4 | 4 | 50 |
| Ф2.0x6Cx4Dx50L | 2.0 | 6 | 4 | 50 |
| Ф2.5x7.5Cx4Dx50L | 2.5 | 7.5 | 4 | 50 |
| Ф3.0x8Cx3Dx50L | 3.0 | 8 | 3 | 50 |
| Ф3.0x9Cx4Dx50L | 3.0 | 9 | 4 | 50 |
| Ф3.5x9Cx4Dx50L | 3.5 | 9 | 4 | 50 |
| Ф4.0x12Cx4Dx50L | 4.0 | 12 | 4 | 50 |
| Ф5.0x13Cx6Dx50L | 5.0 | 13 | 6 | 50 |
| Ф5.0*13C*5D*50L | 5.0 | 13 | 5 | 50 |
| Ф6.0*15C*6D*50L | 6.0 | 15 | 6 | 50 |
| Ф7.0*20C*8D*60L | 7.0 | 20 | 8 | 60 |
| Ф8.0*20C*8D*60L | 8.0 | 20 | 8 | 60 |
| Ф9.0*25C*10D*75L | 9.0 | 25 | 10 | 75 |
| Ф10.0*25C*10D*75L | 10.0 | 25 | 10 | 75 |
| Ф11.0*30C*12D*75L | 11.0 | 30 | 12 | 75 |
| Ф12.0*30C*12D*75L | 12.0 | 30 | 12 | 75 |
| Ф13.0*45C*14D*100L | 13.0 | 45 | 14 | 100 |
| Ф14.0*45C*14D*100L | 14.0 | 45 | 14 | 100 |
| Ф15.0*45C*16D*100L | 15.0 | 45 | 16 | 100 |
| Ф16.0*45*16D*100L | 16.0 | 45 | 16 | 100 |
| Ф18.0*45C*18D*100L | 18.0 | 45 | 18 | 100 |
| Ф20.0*45C*20D*100L | 20.0 | 45 | 20 | 100 |
| Ф3.0*8C*3D*75L | 3.0 | 8 | 3 | 75 |
| Ф4.0*16C*4D*75L | 4.0 | 16 | 4 | 75 |
| Ф5.0*18C*5D*75L | 5.0 | 18 | 5 | 75 |
| Ф6.0*24C*6D*75L | 6.0 | 24 | 6 | 75 |
| Ф8.0*25C*8D*75L | 8.0 | 25 | 8 | 75 |
| Ф10.0*30C*10D*75L | 10.0 | 30 | 10 | 75 |
| Ф3.0*12*3D*100L | 3.0 | 12 | 3 | 100 |
| Ф4.0*20C*4D*100L | 4.0 | 20 | 4 | 100 |
| Ф5.0*30C*5D*100L | 5.0 | 30 | 5 | 100 |
| Ф6.0*30C*6D*100L | 6.0 | 30 | 6 | 100 |
| Ф8.0*35C*8D*100L | 8.0 | 35 | 8 | 100 |
| Ф10.0*40C*10D*100L | 10.0 | 40 | 10 | 100 |
| Ф10.0*50C*10D*100L | 10.0 | 50 | 10 | 100 |
| Ф12.0*45C*12D*100L | 12.0 | 45 | 12 | 100 |
| Ф12.0*50C*12D*100L | 12.0 | 50 | 12 | 100 |
| Ф6.0*45C*6D*150L | 6.0 | 45 | 6 | 150 |
| Ф8.0*50C*8D*150L | 8.0 | 50 | 8 | 150 |
| Ф10.0*55C*10D*150L | 10.0 | 55 | 10 | 150 |
| Ф12.0*55C*12D*150L | 12.0 | 55 | 12 | 150 |
| Ф14.0*70C*14D*150L | 14.0 | 70 | 14 | 150 |
| Ф16.0*80C*16D*150L | 16.0 | 80 | 16 | 150 |
| Ф18.0*80C*18D*150L | 18.0 | 80 | 18 | 150 |
| Ф20.0*80C*20D*150L | 20.0 | 80 | 20 | 150 |
| Ф10.0*65C*10D*200L | 10.0 | 65 | 10 | 200 |
| Ф12.0*70C*12D*200L | 12.0 | 70 | 12 | 200 |
| Ф14*75C*14D*200L | 14.0 | 75 | 14 | 200 |
| Ф16*90C*16D*200L | 16.0 | 90 | 16 | 200 |
| Ф20*90C*20D*200L | 20.0 | 90 | 20 | 200 |
| Ф8.0*60C*8D*200L | 8.0 | 60 | 8 | 200 |
Custom-tailor would be available against customers’ requirements
Application
Scope of application
Application Machines
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
-
