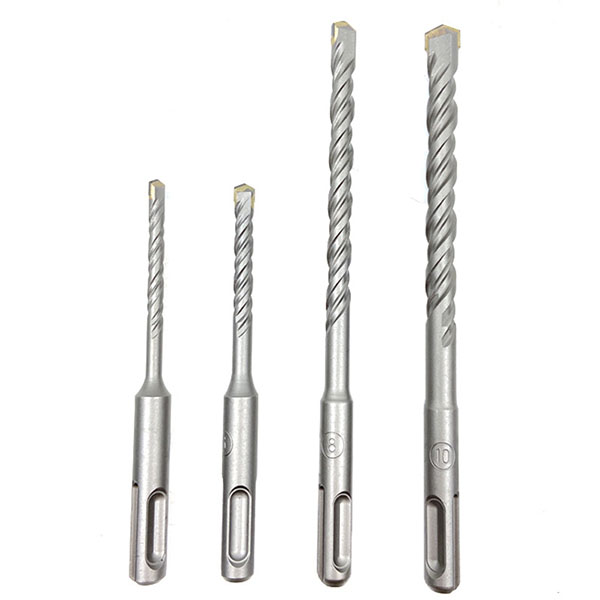

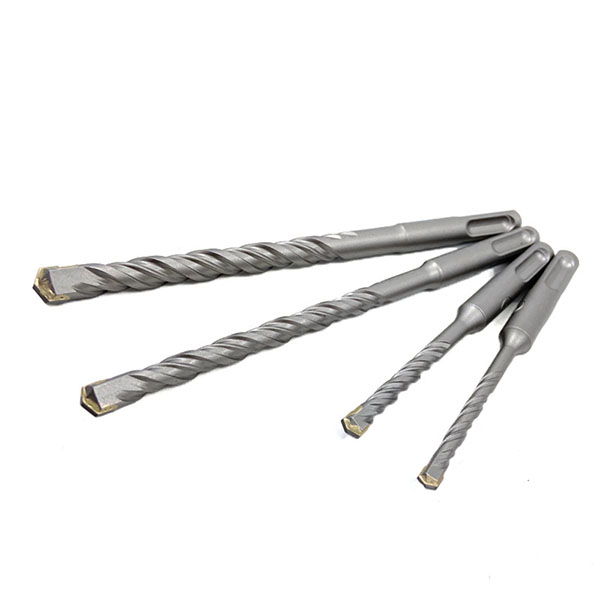

4PCS SDS Plus Hammer Drill Bit Set 5/6/810mm Single Tip For Concrete Stone

Short Description:

1.40CR chromium steel, forged in one piece, quenched at high temperature, with high hardness, good toughness and strong drilling ability

2.YG8 hard tungsten steel alloy cutter head, virgin alloy, high temperature brazing process, durable

3. Double-slot spiral design, rapid chip removal, improving drilling efficiency

4. Scope of application: Suitable for drilling holes in brick walls, marble, cement walls, concrete, stones, etc.

Send email to us

Product Detail

Product Tags

Product Information

Product Name	4PCS SDS Plus Hammer Drill Bit set
Size	5110/6110/8160/10160
Body Material	40Cr Steel with Heat Treatment
Tip Material	Tungsten Carbide
Process	Milled Flutes and Welded Tip
Tip Type	Single Tip
Flute Type	S4 Flute,L Flute, U Flute

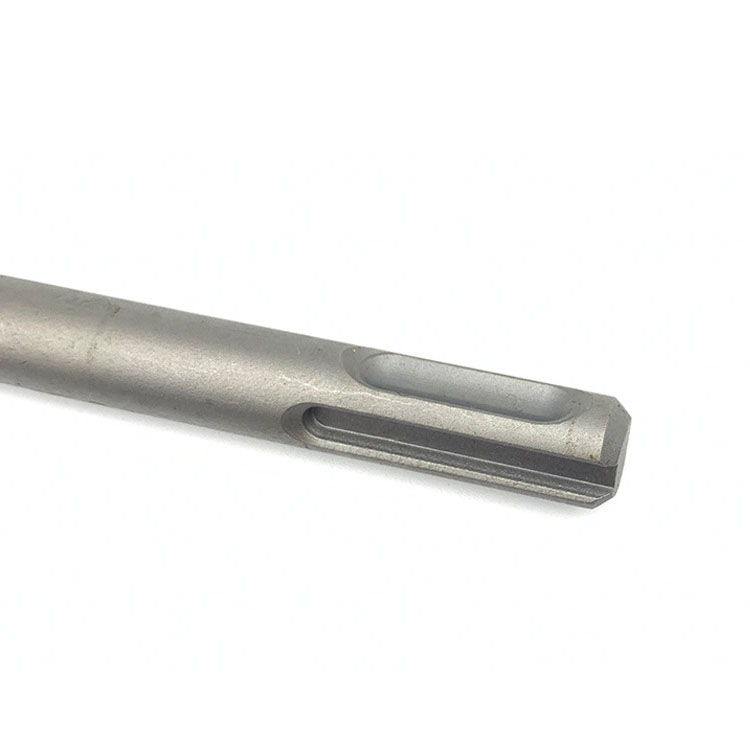

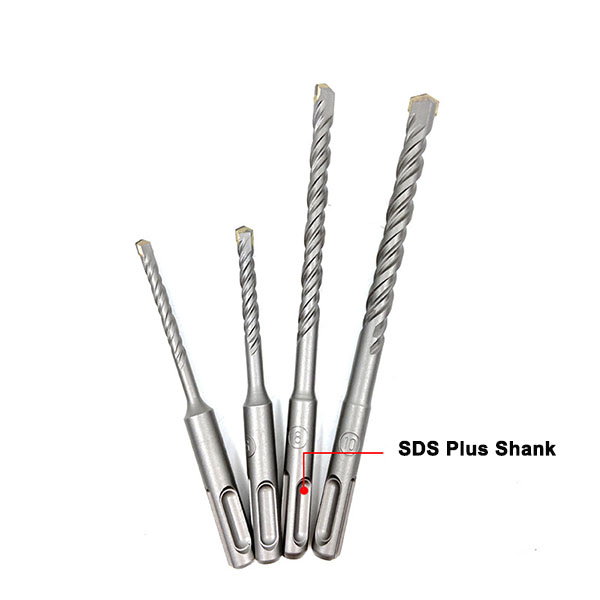

Shank	SDS Plus Shank
Surface Finish	Sand Blasted

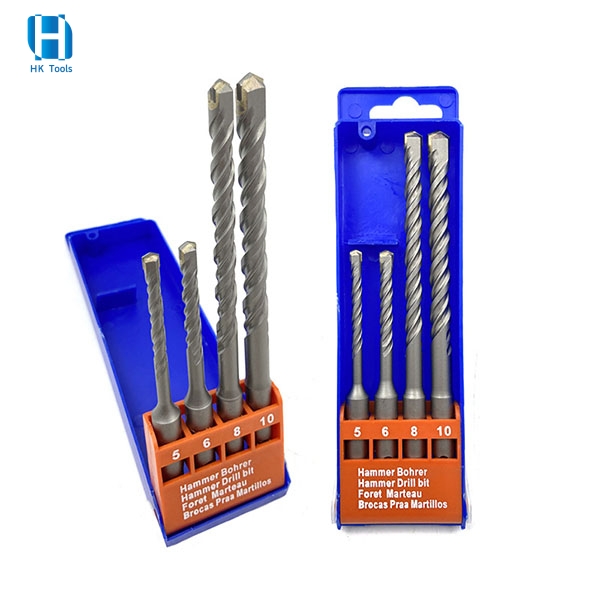

Package	in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell, Metal Box
Features	1.Premium 40Cr steel with heat treatment improves core strength for maximum durability and extended life. 2.Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling.increases strength and durability. 3.Copper braze material gives high heat resistance for reduced tip loss,Carbide tip securely embedded in the steel body. 4.fold spiral flute (S4) for rapid drilling dust removal. With even less vibration and more precise guiding, the stability and service life of the drill bit are increased.

Product Size

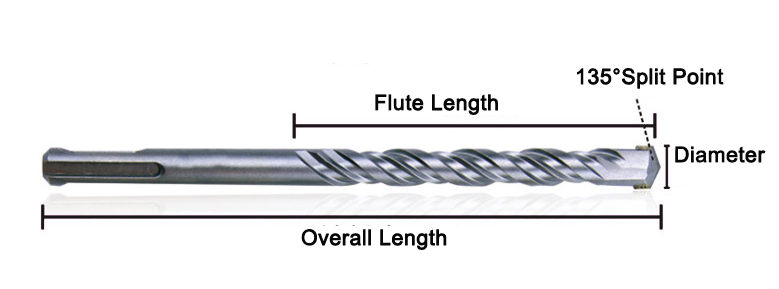

Specification	Diameter	Flute Length	Overall Length
5*110mm	5mm	40mm	110mm
6*110mm	6mm	40mm	110mm
8*110mm	8mm	40mm	110mm
6*160mm	6mm	80mm	160mm
8*160mm	8mm	80mm	160mm
10*160mm	10mm	80mm	160mm
12*160mm	12mm	80mm	160mm
14*160mm	14mm	80mm	160mm
16*160mm	16mm	80mm	160mm

Custom-tailor would be available against customers’ requirements

Application

Applicable Material

Applicable Machine

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
