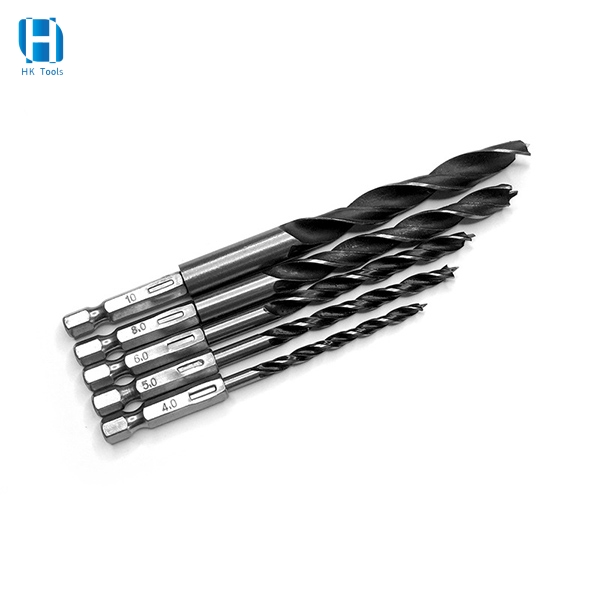

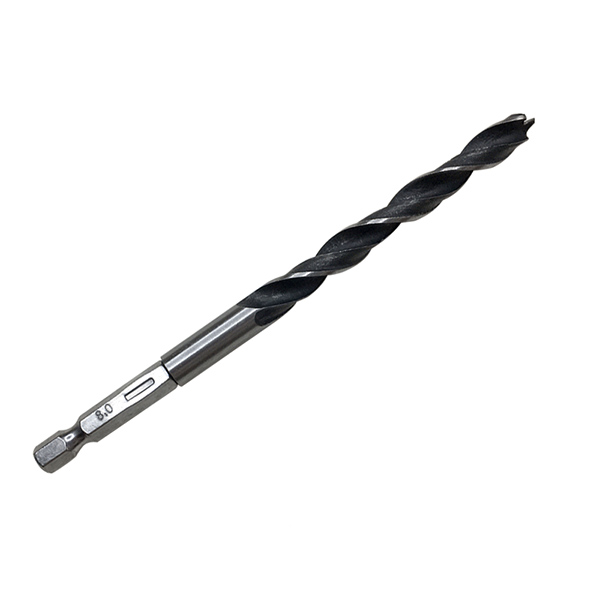

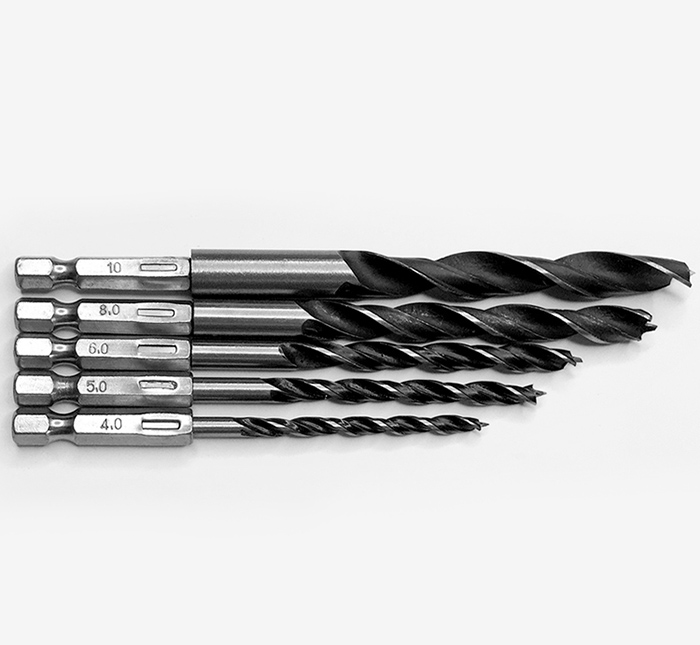

5PCS Hex Shank Woodworking Brad Point Drill Bit Three Tips For Reaming Drilling Tool

Short Description:

Made of high carbon steel with brad point and 2 shouldered cutting spurs.

Centre point enters first; prevents “skating!

Cutting flutes are engineered for optimum chip ejection so drill will not bind and burn out

For driling accurate, splinter-free holes in soft wood, hard wood, plywood and hardboard

Use in hand drils, electric portable drils, drill presses and lathes.

Send email to us

Product Detail

Product Tags

Product Information

Product Name	Wood Brad Point Drill Bits for Wood Precision Dowelling Drilling
Material	Carbon Steel with Heat Treatment (High Speed Steel is available)
Process	Rolled (Edge Ground, Fully Ground are available)
Shank	Round Shank (1/4" Hex Shank is available)
Flute	Double Flutes (Double Margin, Fast Spiral Flutes, Three Flutes are available)
Head Tip	Brad Point with Two Cutting Spurs //three-point (Crown Head is available)
Surface Finish	Black & Bright or White Finish
Package	One Piece in One PVC Pouch or PVC Skin Card or Paper Sandwich or PVC Double Blister or PVC Tube
Features	1.Made from high quality, hardened carbon steel for added durability; Or HSS Material 2.Brad point tip provides accurate positioning for starting the hole; 3.Spur cutting edges reduce splintering and ensure a smooth, clean hole; 4.Wide, smooth flutes give quick ejecting of wood chips; 5.Round shank is designed for use in power drills, drill presses, and boring machines; 6.Bit is precision ground for use in furniture making, doweling, cabinetry, and other woodworking applications where an exact hole size is required.

Product Size

Diameter	Shank Diameter	Flute Length	Overall Length
4mm	6.35mm	48mm	95mm
5mm	6.35mm	55mm	105mm
6mm	6.35mm	65mm	113mm
8mm	6.35mm	76mm	135mm
10mm	6.35mm	82mm	140mm

Custom-tailor would be available against customers’ requirements

Application

Scope of application

Application Machines

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
