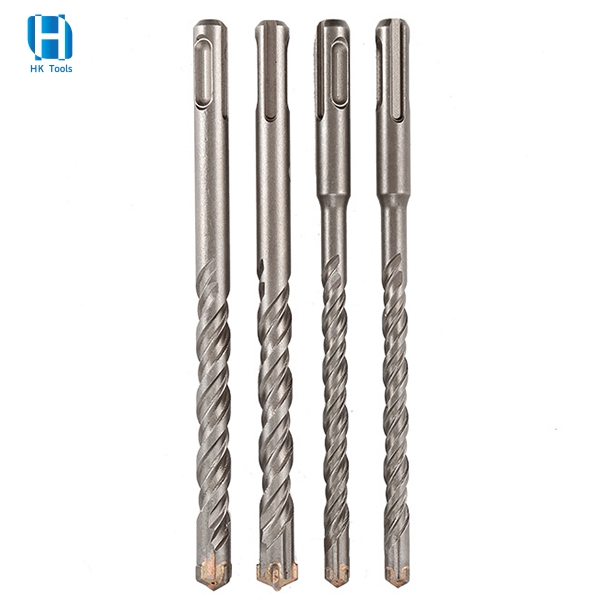

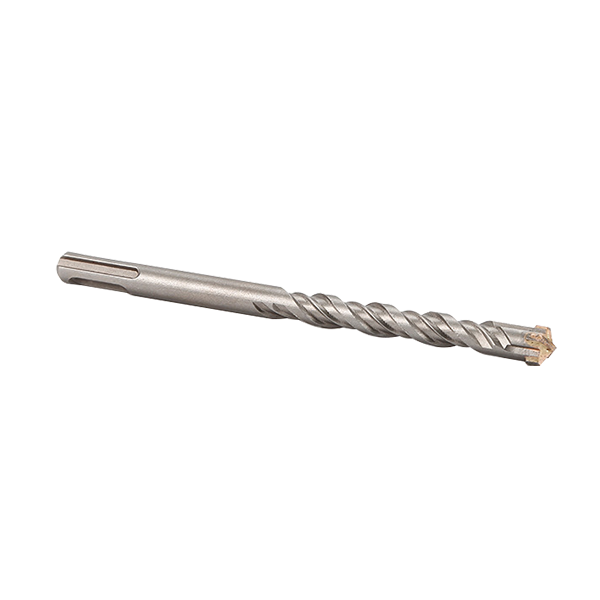

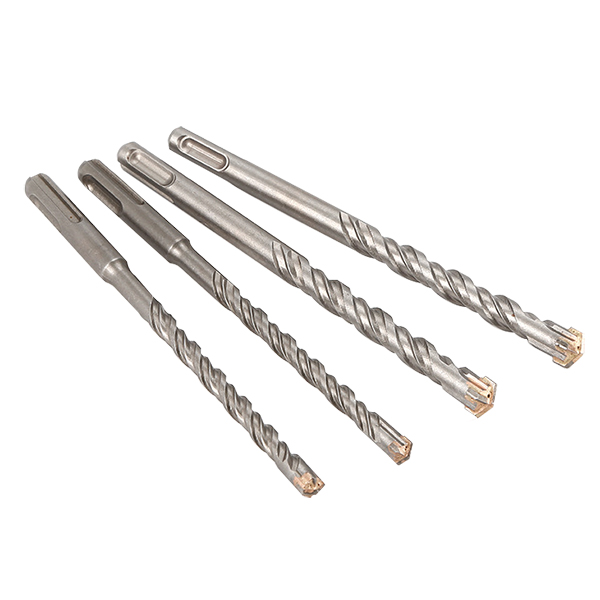

SDS Plus Shank Drill Bits 4 Cutters Cross Tips For Masonry Concrete

Short Description:

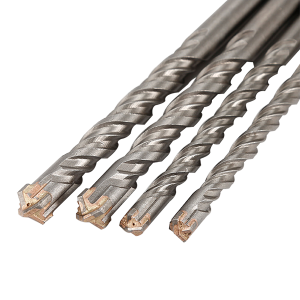

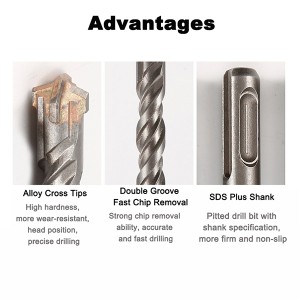

Cross alloy cutter head: high hardness, more wear-resistant, head position, accurate punching

Double slots for fast chip removal: high chip removal capacity, precise and fast drilling

SDS Plus shank: Shank standardised pit and groove process drill bit, more tight and no slip.


Product Detail

Product Tags

Product Information

Product Name Cross Tip 4 Cutters S4 Flute SDS Plus Hammer Drill Bit for Concrete Block Brick Wall Drilling
Body Material 40Cr Steel with Heat Treatment
Tip Material Tungsten Carbide
Process Milled Flutes and Welded Tip (High Quality Auto Welded Tip is available)
Tip Type Cross Head Tip 4 Cutters (Single Tip, Center Tip, X Head are available)
Shank SDS Plus Shank (SDS Max Shank, Spline Shank, Hex Shank and SDS Tapcon Shank are available)
Flute Type S4 Flute (L Flute, U Flute, 4 Flute are available)
Size 4*110mm - 40*1200mm (5/32" * 4" to 1 3/4" * 40")
Surface Finish Sand Blasted
Package One Piece in One PVC Pouch Or Plastic Hanger or PVC Tube or PVC Double Blister
Features 1.Professional quality for efficient and fast hammer drilling in hard materials like concrete, granite, brick and other similar building materials.
2.Copper braze material gives high heat resistance for reduced tip loss,Carbide tip securely embedded in the steel body.
3.Premium carbon steel with heat treatment improves core strength for maximum durability and extended life.
4.4 Cutters head design operates with less noise than standard cutter heads and produces about 60% less vibration while lasting about 50%.
5.4-fold spiral flute (S4) for rapid drilling dust removal. With even less vibration and more precise guiding, the stability and service life.
6.Wear mark identifies when bit has worn to an inappropriate level for precision anchoring
7.Compatible with all SDS Plus style chucks.

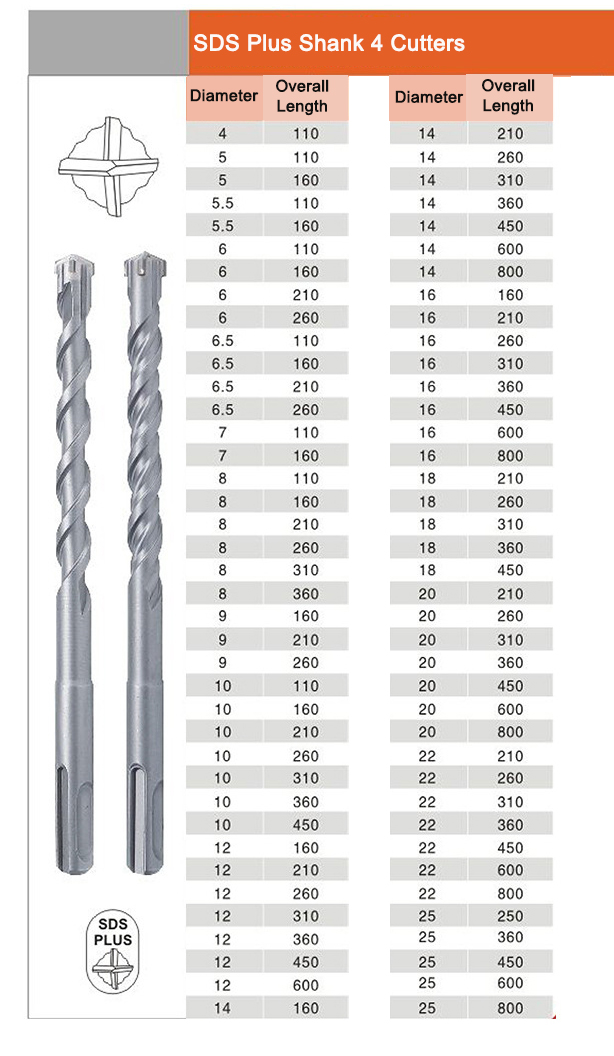

Product Size

parameter

Custom-tailor would be available against customers’ requirements

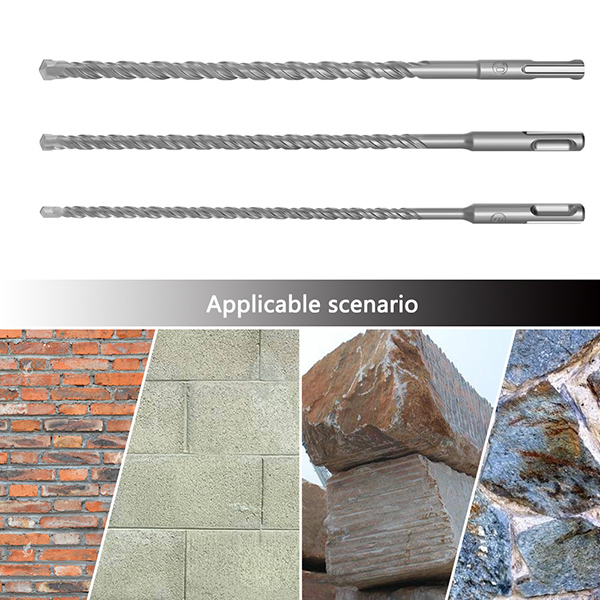

Application

                                 Scope of application

                                        Applicable  Machines

material
machine

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

packing3
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
