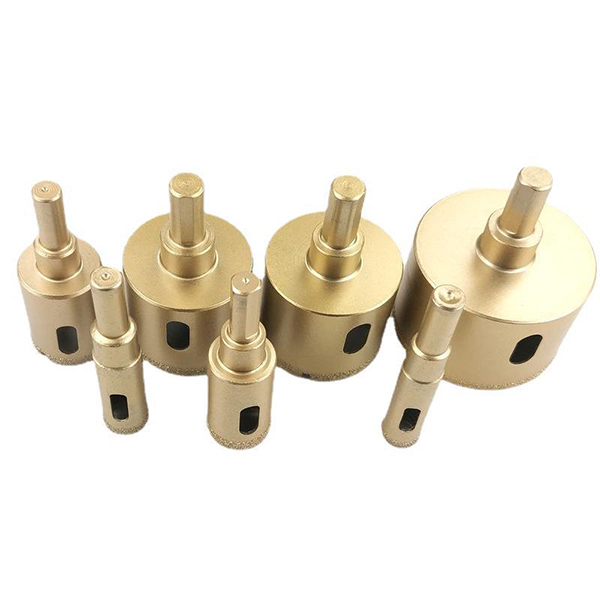

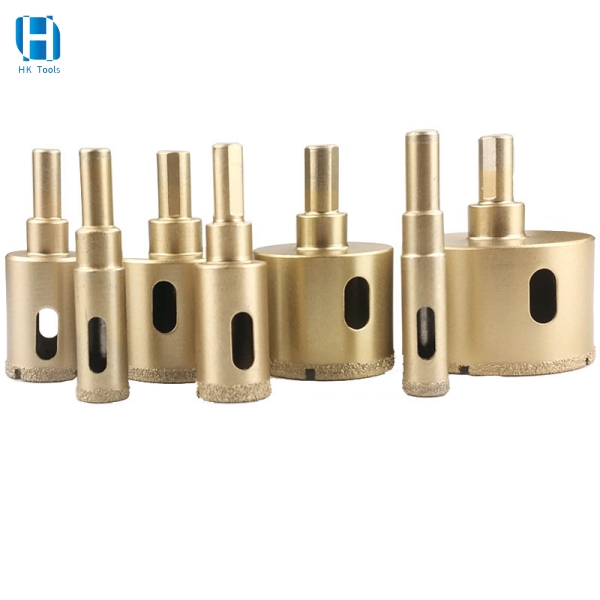

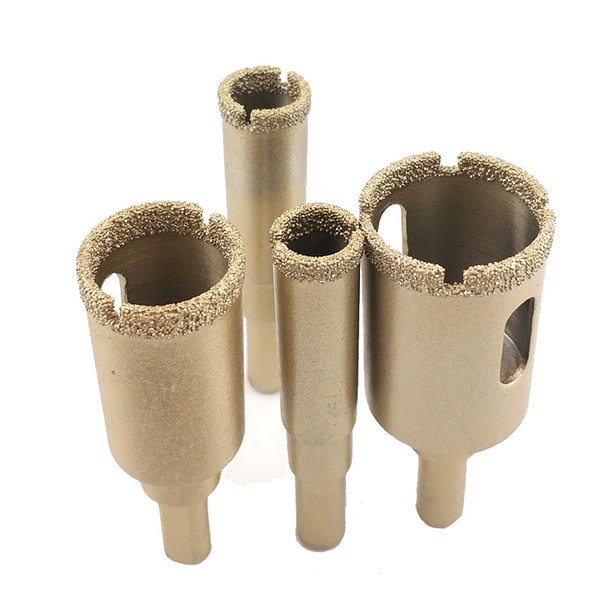

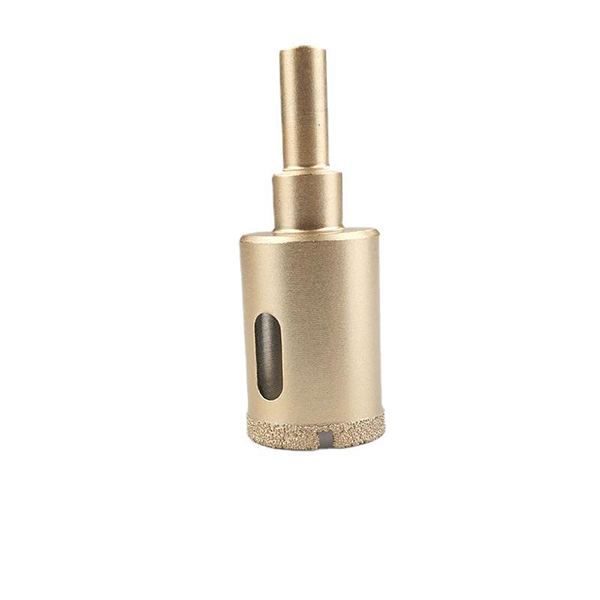

6-60mm Diamond Brazed Core Dry Drill Hole Opener For Porcelain Tiles Marble Hole Saw Cutter
Product Information
| Hole Saw For Porcelain Tile Marble Granite Brocas Para Marmol | |
| Body Material | High Carbon Steel |
| Diameter | 6-100mm |
| Surface | Color Painting |
| Technique | Sintered hot pressing |
| Shank Type | Round、Triangular |
| Package | in Plastic Box |
|
Features |
1. Dry drilling without water feeding, 6mm-12mm bits with Wax inside helps cooling the bits 2. Wide application for drilling tile ceramic granite marble stone.... 3. Vacuum Brazed technology provide much longer working life than electroplated ones (Generally 3-5times) 4. Less Chipping, Minimizing breakage, less heat generation, Better finish quality 5. High diamond exposure rate provides a faster and more aggressive drilling. |

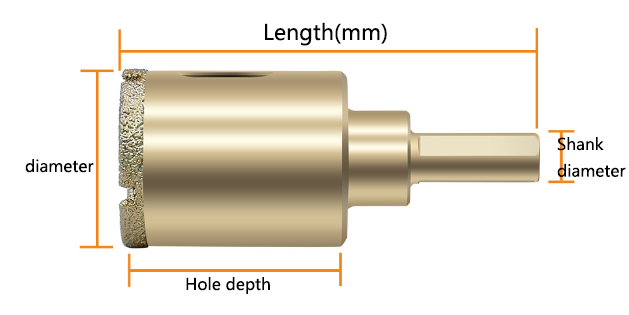

Product Size
|
Size |
Diameter |
Shank Diameter |
Hole depth |
Length |
|
Φ6mm |
6mm |
5mm |
≤35mm |
65mm |
|
Φ8mm |
8mm |
7mm |
≤35mm |
65mm |
|
Φ10mm |
10mm |
8mm |
≤35mm |
65mm |
|
Φ12mm |
12mm |
8mm |
≤35mm |
65mm |
|
Φ14mm |
14mm |
10mm |
≤35mm |
65mm |
|
Φ16mm |
16mm |
8mm |
≤35mm |
65mm |
|
Φ18mm |
18mm |
8mm |
≤35mm |
65mm |
|
Φ20mm |
20mm |
8mm |
≤35mm |
65mm |
|
Φ22mm |
22mm |
8mm |
≤35mm |
65mm |
|
Φ25mm |
25mm |
8.6mm |
≤35mm |
65mm |
|
Φ28mm |
28mm |
8mm |
≤35mm |
65mm |
|
Φ30mm |
30mm |
10mm |
≤35mm |
65mm |
|
Φ32mm |
32mm |
10mm |
≤35mm |
65mm |
|
Φ35mm |
35mm |
10mm |
≤35mm |
65mm |
|
Φ40mm |
40mm |
10mm |
≤35mm |
65mm |
|
Φ45mm |
45mm |
10mm |
≤35mm |
65mm |
|
Φ50mm |
50mm |
10mm |
≤35mm |
65mm |
|
Φ55mm |
55mm |
10mm |
≤35mm |
65mm |
|
Φ60mm |
60mm |
10mm |
≤35mm |
55mm |
Custom-tailor would be available against customers’ requirements
Application
Scope of application
Application Machines
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
