60°Split Point HSS DIN333 Double Ended Centre Self Centre and Spotting Drill Bit For Hole Processing

Short Description:

A double ended center drill has a shorter, thicker shaft and a narrower tapered or cone-shaped end than the drill’s shaft.The center drill works well for metals because, when placed against the metal, it does not quickly go off course. It is shorter and more durable than other bits that could flex or slide away from the drilling target under stress. A dull drill bit will not cut as well and may produce erroneous holes. When completing these activities, using the right drill bit is essential.


Product Detail

Product Tags

Product Information

Product Name

HSS DIN333 Double Ended Center Self Center and Spotting Drill Bit for Hole Processing

Material

HSS M2 M35 M42 4341  (HSS Cobalt is Available)

Process

Fully Ground   (Rolled & Polished, Rolled, Milled are Available)

Standard

 DIN333

Size

0.5-5MM

Point Type

 60Degree Split Point

Helix Angle

Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)

Web & Flute Type

Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)

Surface Finish

Bright  , Amber Color, Titanium,  are Available)

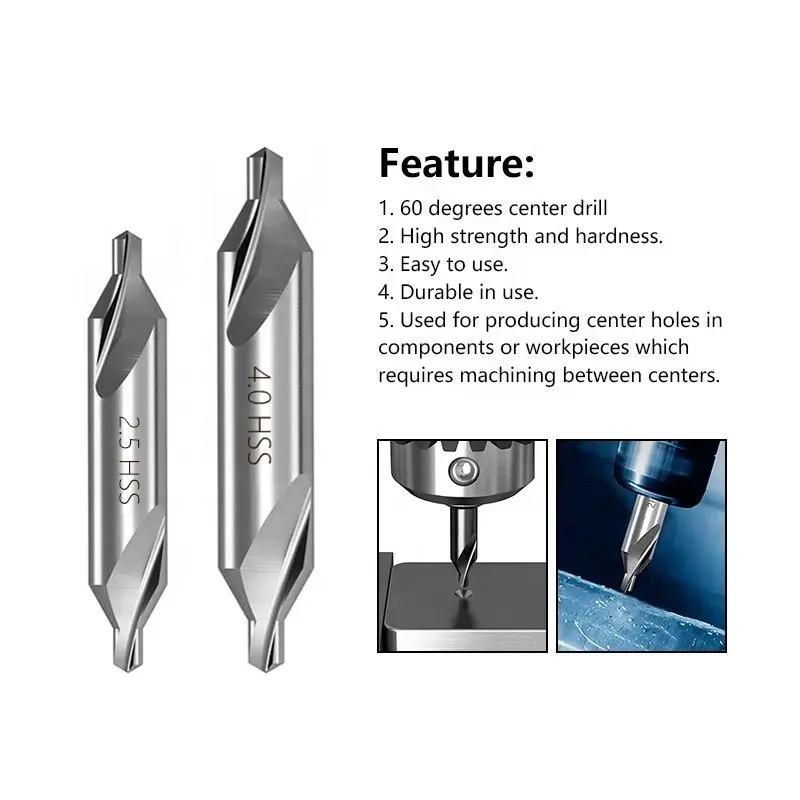

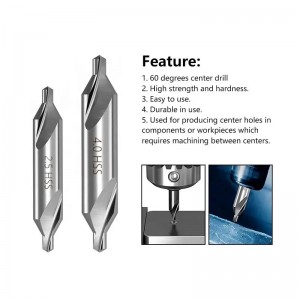

Features

1. 60 degrees center drill2.High strength and hardness

3. Easy to use.

4. Durable in use.

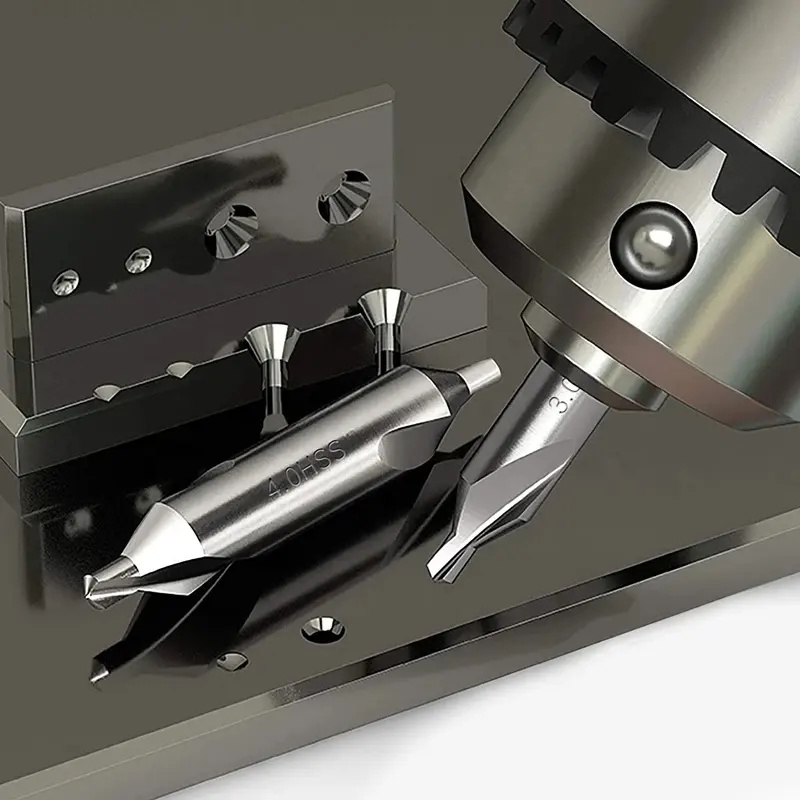

5. Used for producing center holes in components or work pieces which requires machining between centers

Application

Common steel,Aluminum alloy,Cast iron,Copper Unhardened restraint steel,Mould Steel Titanium alloy,Stainless steel.

NOTE

1.Non-standard products are available according to customer's drawing or customer's sample .2.We also design and manufacture products,according to the request of customer's.

Price

Our price is reasonable, we purpose a high-volume, low-margin business

Payment terms


We accept West Union.T/T. Paypal.



Product Size

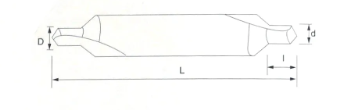

size drawing

Diameter(D)

Shank Diameter (l)

Overall Length(L)

1.0mm

3.15mm

32.0mm

1.5mm

4.0mm

36.0mm

2.0mm

5.0mm

40.0mm

2.5mm

6.3mm

45.0mm

3.0mm

8.0mm

50.0mm

4.0mm

10.0mm

56.0mm

5.0mm

12.5mm

63.0mm

6.0mm

14.0mm

65.0mm

Product Details

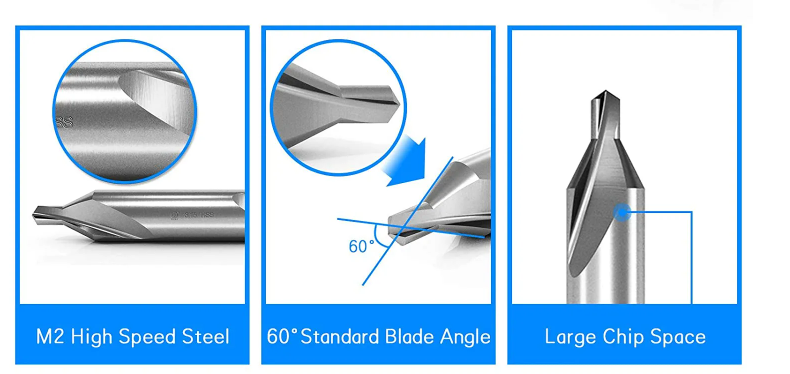

details photo-1
