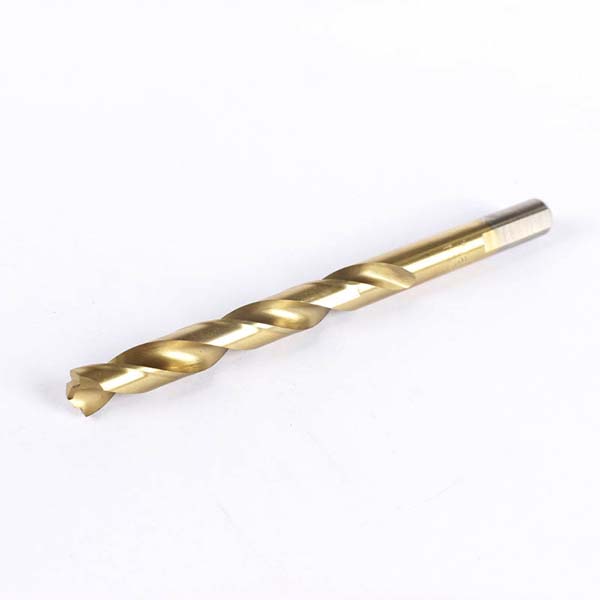

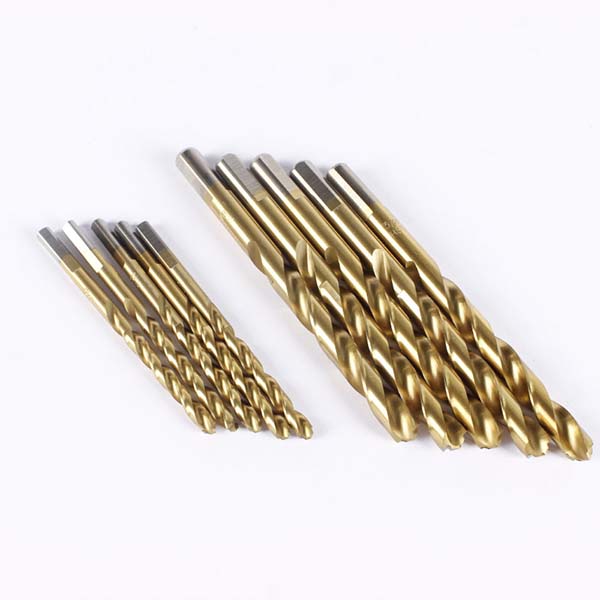

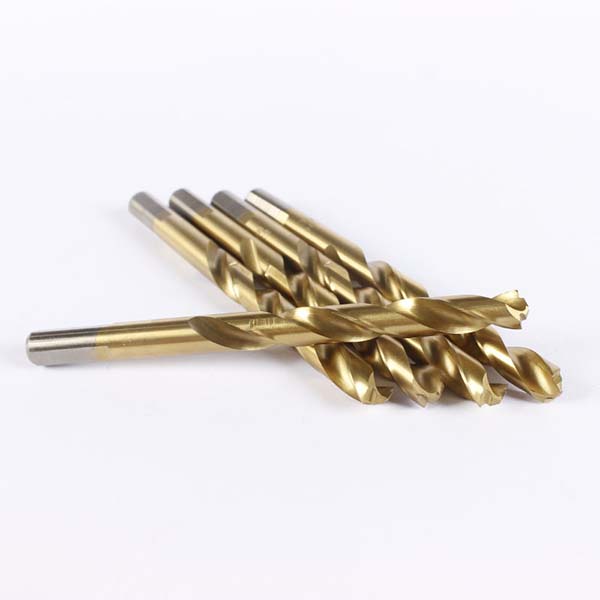

6542 HSS Pilot Point Twist Drill Bit Titanium Coated Fully Groud For Metal Alloy Drilling Featured Image
  • 6542 HSS Pilot Point Twist Drill Bit Titanium Coated Fully Groud For Metal Alloy Drilling
  • 6542 HSS Pilot Point Twist Drill Bit Titanium Coated Fully Groud For Metal Alloy Drilling
  • 6542 HSS Pilot Point Twist Drill Bit Titanium Coated Fully Groud For Metal Alloy Drilling
  • 6542 HSS Pilot Point Twist Drill Bit Titanium Coated Fully Groud For Metal Alloy Drilling

6542 HSS Pilot Point Twist Drill Bit Titanium Coated Fully Groud For Metal Alloy Drilling

Short Description:

  • 1. Pilot Point Tip starts on contact for clean, accurate holes and reduces lock-up on breakthrough.
  • 2. No-Spin Shank eliminates the frustration of bit spinning in the chuck.
  • 3. Tapered web provides greater durability to reduce breaking.
  • 4. Reinforced housing and metal impact plate for blade hook protection and longer life.


Product Detail

Product Tags

Product Information

Procuct Name Fully Ground Three Flats Shank Parabolic Flute Titanium HSS Pilot Point Drill Bit for Metal
Material HSS   (HSS Cobalt M35 is Available)
Process Fully Ground  (Rolled & Polished, Rolled, Milled are Available)
Standard Jobber Length     (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

DIN338     (Stub DIN1897, Long DIN340, Extra Long DIN1869,Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)
Size 1/16"-1/2"
Point Type Pilot Point   (118 Degree Regular Point, 135 Degree Split Point, Turbo Max Point are Available)
Shank Type Tri-Flats Shank     (Striaght Shank, Hex Shank, Double R Hex Shank, Reduced Shank, Threaded Shank, Taper Shank are Available)
Helix Angle Regular Spiral Type N    (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)
Web & Flute Type Heavy Duty with Parabolic Flute    (Heavy Duty Web with Regular Flute isAvailable)
Surface Finish Titanium    (Bright, Black Oxide, Amber Color, Black & Gold, Black & Bright are Available)
Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.
Features 1. Pilot Point Tip starts on contact for clean, accurate holes and reduces lock-up on breakthrough.
2. No-Spin Shank eliminates the frustration of bit spinning in the chuck.
3. Tapered web provides greater durability to reduce breaking.
4. Reinforced housing and metal impact plate for blade hook protection and longer life.



Product Size

size

DIN338 AND ANSI standard jobber length fraction

Diameter

Overall length

Flute length

Diameter

Overall length

Flute length

mm

mm

mm

inch

inch

inch

0.5

22

6

3/64"

1-3/4"

3/4"

1.0

34

12.0

1/16"

1-7/8"

7/8"

1.5

43

20.0

5/64"

2"

1"

2

49

24.0

3/32"

2-1/4"

1-1/8"

2.5

57

30.0

7/64"

2-5/8"

1-1/2"

3.0

61

33.0

1/8"

2-3/4"

1-5/8"

3.2

65

36.0

9/64"

2-7/8"

1-3/4"

3.5

70

39.0

5/32"

3-1/8"

2"

4.0

75

46.0

11/64"

3-1/4"

2-1/8"

4.2

75

46.0

3/16"

3-1/2"

2-5/16"

4.5

80

47.0

13/64"

3-5/8"

2-7/76"

4.8

86

52.0

7/32"

3-3/4"

2-1/2"

5.0

86

52.0

15/64"

3-7/8"

2-5/8"

5.2

86

52.0

1/4"

4"

2-3/4"

5.5

93

57.0

17/67"

4-1/8"

2-7/8"

6.0

93

57.0

9/32"

4-1/4"

2-15/16"

6.5

101

63.0

19/64"

4-3/8"

3-1/16"

7.0

109

69.0

5/16"

4-1/2"

3-3/16"

7.5

109

69.0

21/64"

4-5/8"

3-5/16"

8.0

117

75.0

11/31"

4-3/4"

3-7/16"

8.5

117

75.0

23/64"

4-7/8"

3-1/2"

9.0

125

81.0

3/8"

5"

3-5/8"

9.5

125

81.0

25/64"

5-1/8"

3-3/4"

10.0

133

87.0

13/32"

5-1/4"

3-7/8"

10.5

133

87.0

27/64"

5-3/8"

3-15/16"

11.0

142

94.0

7/16"

5-1/2"

4-1/16"

11.5

142

94.0

29/64"

5-5/8"

4-3/16"

12.0

151

101

15/32"

5-3/4"

4-5/16"

12.5

151

101

31/64"

5-7/8"

4-3/8"

13.0

151

101

17/32"

6-5/8"

4-13/16"

13.5

160

108

35/64"

6-5/8"

4-13/16"

14.0

160

108

9/64"

6-5/8"

4-13/16"

14.5

169

114

37/64"

6-5/8"

4-13/16"

15.0

169

114

19/32"

7-1/8"

5-13/16"

15.5

178

120

39/64"

7-1/8"

5-13/16"

16.0

178

120

5/8"

7-1/8"

5-13/16"

16.5

184

125

41/64"

7-1/8"

5-13/16"

17.0

184

125

21/32"

7-1/8"

5-13/16"

17.5

191

130

43/64"

7-5/8"

5-5/8"

18.0

191

130

11/16"

7-5/8"

5-5/8"

18.5

198

135



19.0

198

135



19.5

205

140



20.0

205

140



Custom-tailor would be available against customers’ requirements

Application

                                 Scope of application

                                Applicable Machines

material

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

packing
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
