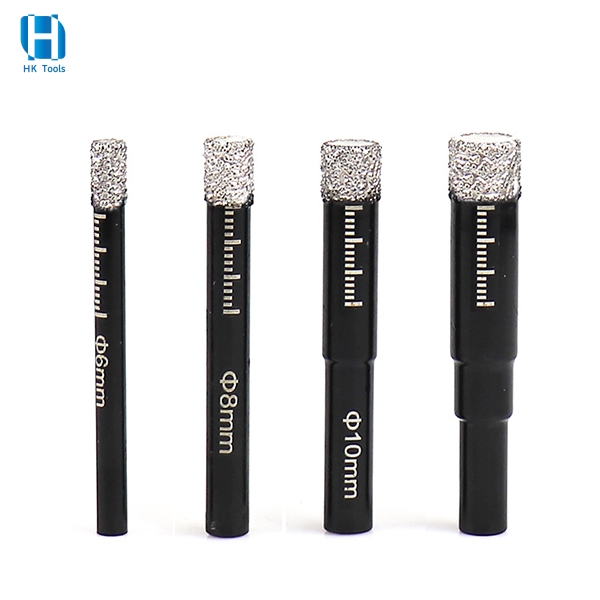

5-16mm Brazed Diamond Hole Saw Dry Use Drill Bit For Tile Marble Glass

Short Description:

Features:

*Brazed Diamond drilling bits Dry drilling for stone masonry ceramic tile.

*For drilling granite, marble masonry, concrete, tile, ceramic.

*Wax inside for cooling Dry drilling without water.

*Very high efficiency, multi-purpose drilling, Long life drilling.

Send email to us

Product Detail

Product Tags

Product Information

Product Name	Brazed Diamond Core Drill Bit
Material	Emery, HCS
Production process	Brazing
Color	Black, Silver
Size	5/6/8/10/12/14/16mm
Diamond Length	8-11mm
Shank Diameter	5-8mm
Shank Type	Round shank(Hex shank, Triangle shank are available)
Suitable for	Drilling granite, marble masonry, concrete, tile, ceramic
Feature	Brazed Diamond drilling bits Dry drilling for stone masonry ceramic tile. For drilling granite, marble masonry, concrete, tile, ceramic. Wax inside for cooling Dry drilling without water. Very high efficiency, multi-purpose drilling, Long life drilling.

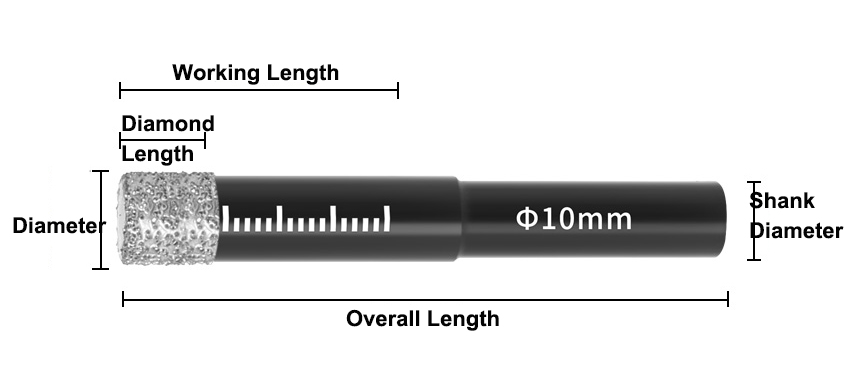

Product Size

Diameter	Diamond Length	Working Length	Shank Diameter	Overall Length
5mm	11mm	28mm	5mm	66mm
6mm	10mm	28mm	5.5mm	66mm
8mm	10mm	28mm	7mm	66mm
10mm	8mm	28mm	8mm	66mm
12mm	10mm	22mm	8mm	66mm
14mm	10mm	22mm	8mm	66mm
16mm	10mm	22mm	8mm	66mm

Custom-tailor would be available against customers’ requirements

Application

Scope of application

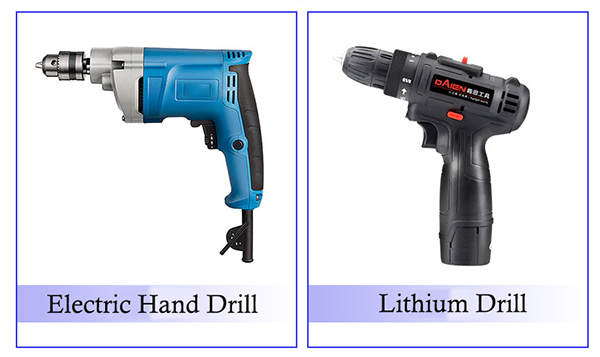

Application Machines

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
