6pcs HSS Combination Screw Tap Set With Chamfering Function M3-M10 Drill Bits Box Kit Package Thread Tap Featured Image
  • 6pcs HSS Combination Screw Tap Set With Chamfering Function M3-M10 Drill Bits Box Kit Package Thread Tap
  • 6pcs HSS Combination Screw Tap Set With Chamfering Function M3-M10 Drill Bits Box Kit Package Thread Tap
  • 6pcs HSS Combination Screw Tap Set With Chamfering Function M3-M10 Drill Bits Box Kit Package Thread Tap
  • 6pcs HSS Combination Screw Tap Set With Chamfering Function M3-M10 Drill Bits Box Kit Package Thread Tap

6pcs HSS Combination Screw Tap Set With Chamfering Function M3-M10 Drill Bits Box Kit Package Thread Tap

Short Description:

  • 1.Taps are designed with spiral flutes and the chip clearing process would be better.
  • 2. Hole tapping chamfering in one, easy to operate, hand drill, bench drill, hex chuck tapping machine available.
  • 3. Processing: wood, plastic, aluminum, tin alloy, magnesium alloy, workpiece thickness less than 5mm.
  • 4. There are total 6 pieces of taps in different sizes from M3 to M10 that you can use for tapping various threads.


Product Detail

Product Tags

Product Information

Product Name 6pcs Combination Hex Twist Tap Drill HSS M3-M10 Bit Screw Countersink Hexagonal Handle Metric Taps Titanium Plated
Material HSS4341，4241，M2,M35
Surface Finish blue or  rainbow
Point Angle Spiral Point 8°
Process Fully Ground，
Standard DIN352 ,DIN338，DIN340， DIN1897， DIN1869，Jobber Length，Aircraft Extension
Hardness 61-65HCR
Application： his product is suitable for rapid drilling, tapping processing
Size M3-M10

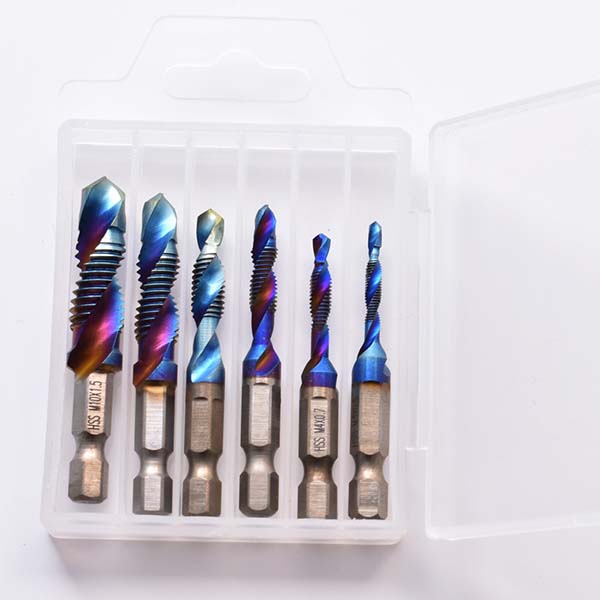

Package Plastic snap box /Metal box/Quadro box/Customied package

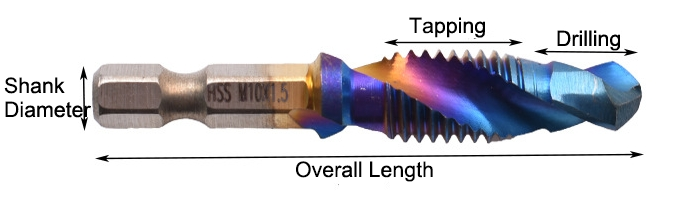

Product Size

SIZE

Unit:mm

Item No.

Overall Length

Drill Length

Tap Length

Shank Diameter

M3*0.5

53

5

12

1/4

M4*0.7

53

6

10

1/4

M5*0.8

56

7

10

1/4

M6*1.0

56

8

10

1/4

M8*1.25

59

9

17

1/4

M10*1.5

59

10

16

1/4



Custom-tailor would be available against customers’ requirements

Application

                                              Applicable Materials

                                             Application Equipment

application material
euipment

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

packing
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
