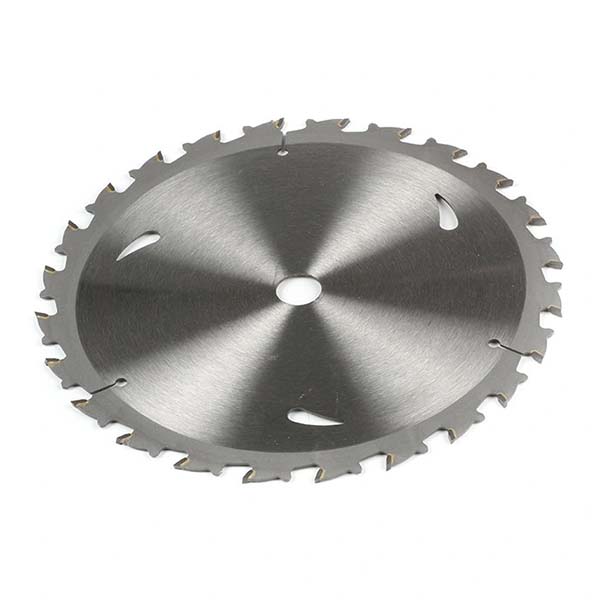

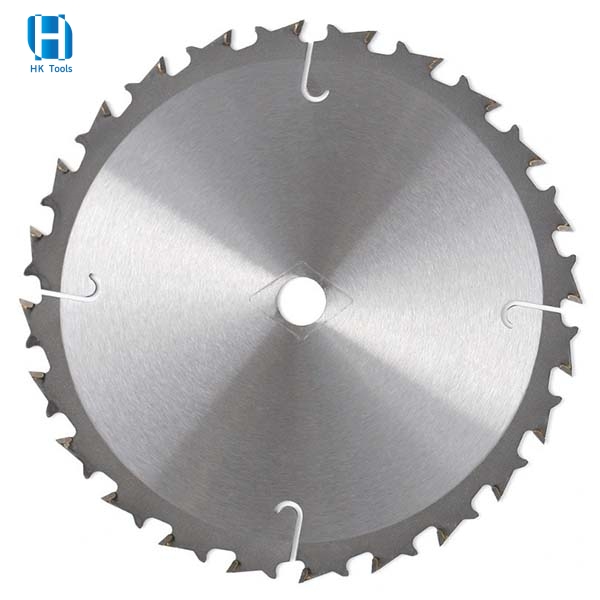

7-1/4 Inch Circular Saw Blade 7.25 Inch 24 Tooth TCT Carbide Saw Blades For Cutting Wood Featured Image
  • 7-1/4 Inch Circular Saw Blade 7.25 Inch 24 Tooth TCT Carbide Saw Blades For Cutting Wood
  • 7-1/4 Inch Circular Saw Blade 7.25 Inch 24 Tooth TCT Carbide Saw Blades For Cutting Wood
  • 7-1/4 Inch Circular Saw Blade 7.25 Inch 24 Tooth TCT Carbide Saw Blades For Cutting Wood

7-1/4 Inch Circular Saw Blade 7.25 Inch 24 Tooth TCT Carbide Saw Blades For Cutting Wood

Short Description:

Tungsten carbide teeth provide excellent wear and heat resistance. positive cutting angle which provides fast and efficient removal of chips and swarf

Applications:suitable for cross cutting softwwod,hardwood, plywood, chipboard, multi-board, panels, MDF,plated&counted-plated panels, laminated&Bi-laminate plastic and FRP


Product Detail

Product Tags

Product Description

Product Name Tungsten Carbide Tipped Wood Cutting TCT Circular Saw Blade for Wood Chipboard
Material Teeth Material: Tungsten Carbide
Body Material: 50# Carbon Steel ( 65Mn Steel is available )
Process High-Frequency Welded
Teeth Type ATB Teeth  ( ATB Teeth with anti-kick back , FT Teeth, TCG Teeth, ATBR Teeth are available)
Arbor Hole Size All size is available upon request,such as 5/8'', 1'' 20mm, 22.23mm, 25mm, 30mm, 35mm...etc
Teeth Design Teeth number Could be adjusted upon request, Hook Angle could be adjusted upon request
Package One piece in one PVC double blister, paper box or PVC Skin Card
Features 1.This TCT Circular saw blades are designed as general cross cut blades,suitable for cross cutting softwood,hardwood, plywood, chipboard, multi-board, panels, MDF,plated&counted-plated panels, laminated&Bi-laminate plastic and FRP. Providing a high degree of finish edge. The blades also can rip cut along the grain.

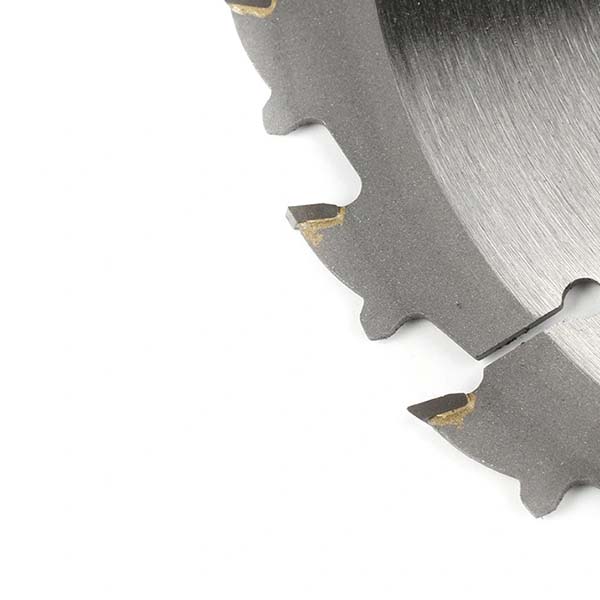

2.Incorporates an ATB (Alternating Top Bevel) offset tooth design,  The angle of the tooth scores the surface of the wood in advance of the cut, cleanly cutting the wood fibers, before the following teeth remove the chip. This provides for a much smoother cut, with much less chance of splintering the surface of the wood.

3.Tungsten carbide teeth provide excellent wear and heat resistance. positive cutting angle which provides fast and efficient removal of chips and swalf.

4.Fully hardened steel blade body – delivers accuracy and resists bending and deflection for true cuts.

5.Heat expansion slots allow the blade rim to expand and contract without warping for straight and accurate cuts.

6.Equipment use with Circular Saw, Miter Saw, Table Saw, Radial Arm Saw, etc.

Product Size

Outer Diameter

   Thick*Kerf*Hole(mm)

Teeth Amount

Inch

Metric(mm)

4"

100mm

1*1.8*20

24T

4-3/8"

110mm

1.2*1.8*20

24T/40T

4-1/2"

115mm

1.2*1.8*22.23

24T/30T/40T

5"

125mm

1.2*1.8*22.23

24T/30T/40T

6"

150mm

1.3*2.0*20/25.4

24T/30T

7"

180mm

1.5*2.2*25.4

40T/60T

7-1/4"

185mm

1.4*2.2*22.23

20T/36T/40T

8"

200mm

1.6*2.2*25.4

40T/60T

8-1/4"

210mm

1.6*2.2*25.4

40T/60T

9"

230mm

1.6*2.3*22.23

20T/40T/60T/80T

10"

250mm

1.8/2.0*3.0*25.4

40T/60T/80T/100T

12"

300mm

2.0*3.0*25.4/30

40T/60T/80T/100T

14"

350mm

2.2*3.2*25.4/30

40T/60T/80T/100T/120T

16"

400mm

2.5*3.5*25.4/30/32

80T/100T/120T/140T

Types and Designs of Teeth and Shoulder

types and designs of teeth and shoulder

Recommend Cutting Materials

recommend cutting materials
