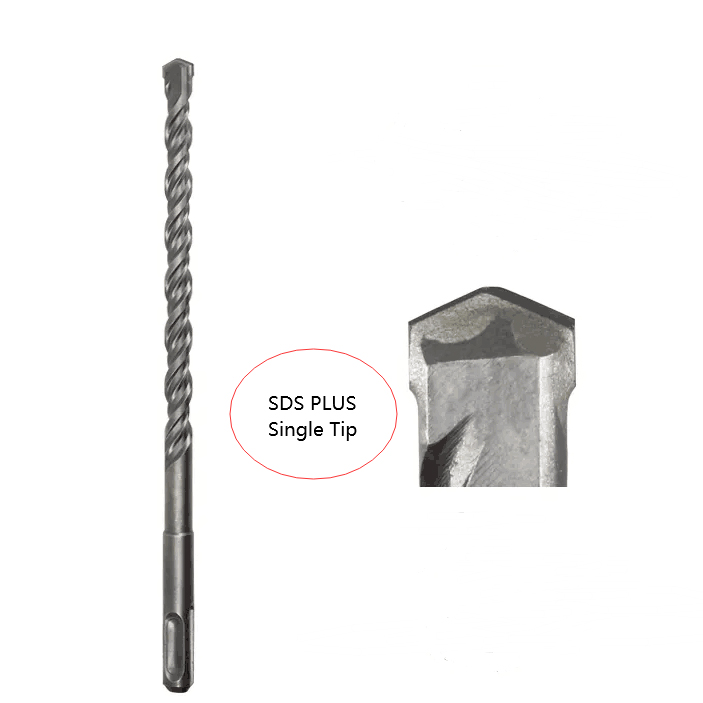

Carbide Single Tip Long SDS Plus Hammer Drill Bit for Concrete Stone Wall Tool

Short Description:

1,Tungsten carbide-tipped masonry drill bits for easy drilling of holes into bricks, masonry block and light concrete.

2,Works with electric and cordless hammer drills

3,Carbide tip provides maximum surface contact and added strength for longer bit life

4,Professional quality for efficient and fast hammer drilling in hard materials like concrete, granite, brick and other similar building materials.

Send email to us

Product Detail

Product Tags

Product Parameters

Product Name	Carbide Single Tip Long SDS Plus Hammer Drill Bit for Concrete Stone Wall Tool
Body Material	40Cr Steel with Heat Treatment
Tip Material	Tungsten Carbide
Process	Milled Flutes and Welded Tip
Tip Type	Single Tip
Flute Type	S4 Flute,L Flute, U Flute
Shank	SDS Plus Shank
Surface Finish	Sand Blasted
Package	in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell, Metal Box
Features	1.Premium 40Cr steel with heat treatment improves core strength for maximum durability and extended life. 2.Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling.increases strength and durability. 3.Copper braze material gives high heat resistance for reduced tip loss,Carbide tip securely embedded in the steel body. 4.fold spiral flute (S4) for rapid drilling dust removal. With even less vibration and more precise guiding, the stability and service life of the drill bit are increased.

Product Size

Diameter	Flute Length	Overall Length	Diameters	Flute Length	Overall Length
mm	mm	mm	inch	inch	inch
4.0-10.0	50	110	5/32"-3/8"	2"	4"
4.0-16.0	100	160	5/32"-5/8"	4"	6"
5.0-26.0	150	210	3/16"-1"	6"	8"
6.0-26.0	200	260	1/4"-1"	8"	10"
6.0-26.0	250	310	1/4"-1"	10"	12"
6.0-26.0	290	350	1/4"-1"	12"	14"
6.0-26.0	350	410	1/4"-1"	10"	12"
8.0-30.0	390	450	5/16"-1-1/8"	12"	14"
8.0-30.0	540	600	5/16"-1-1/8"	14"	16"
10.0-30.0	740	800	3/8"-1-1/8"	16"	18"
10.0-30.0	940	1000	3/8"-1-1/8"	22"	24"
10.0-40.0	1140	1200	3/8"-1-3/4"	24"	26"
The Sizes are available,Contact Us to Learn More.

Our Advantages

-We have larger warehouse to shock products for delivery on time.

-We have professional sale and technology team to serve our customers to ensure your shopping experience

-Stable quality and widely use for hole drilling in hard material;

-Because our is factory,we can supply competitive price.

-The samples are free,freight is collected.If we can have your order ,we will decrease the freight cost from our first order.

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Are you professional manufacturer of HSS twist drill bits?
A: Yes,JIANGSU HAOKE MATERIAL TECH CO.,LTD is a professional factory that main products is HSS TWIST DRIL BITS.Following took a few photos of our workshop production and warehouse.

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
