Products

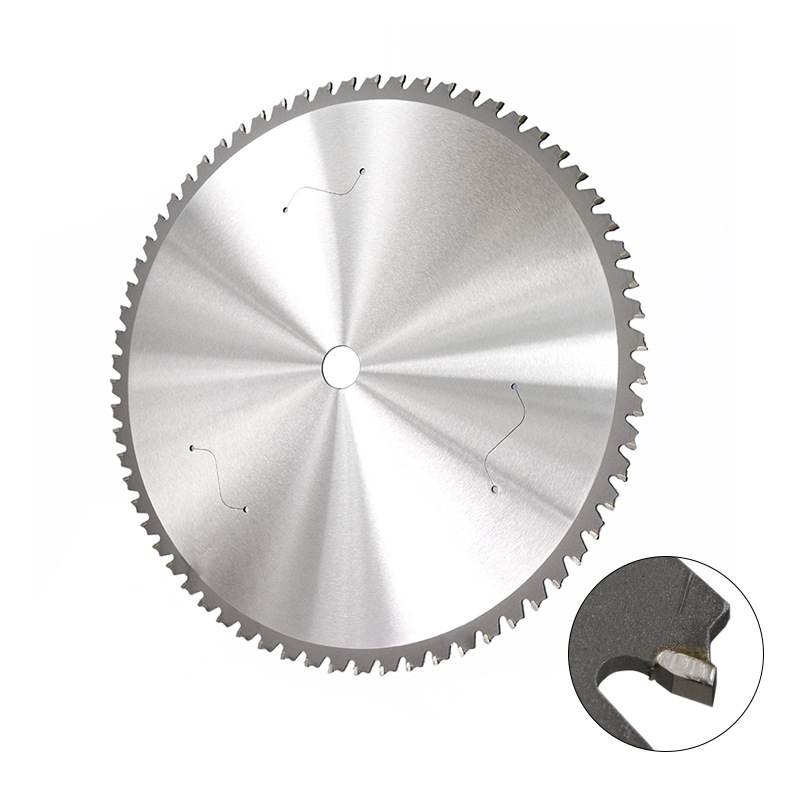

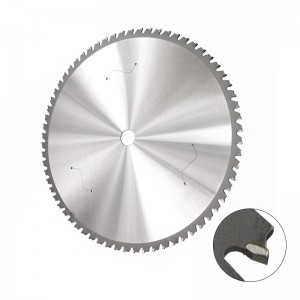

Circular Saw Blades for Aluminium Metal Cutting Disc Carbide Tipped
Product Information
| Product Name | Circular Saw Blades For Aluminium Metal Cutting Disc Carbide Tipped |
| Material | Teeth Material: Tungsten Carbide Body Material: 65Mn Steel |
| Process | High-Frequency Welded |

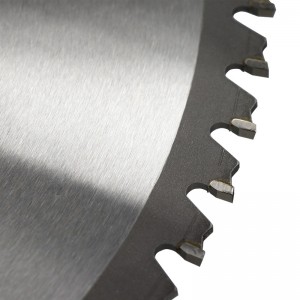

| Teeth Type | FT Teeth (ATB Teeth, ATB Teeth with Anti-Kick Back, ATBR Teeth, TCG Teeth are available) |

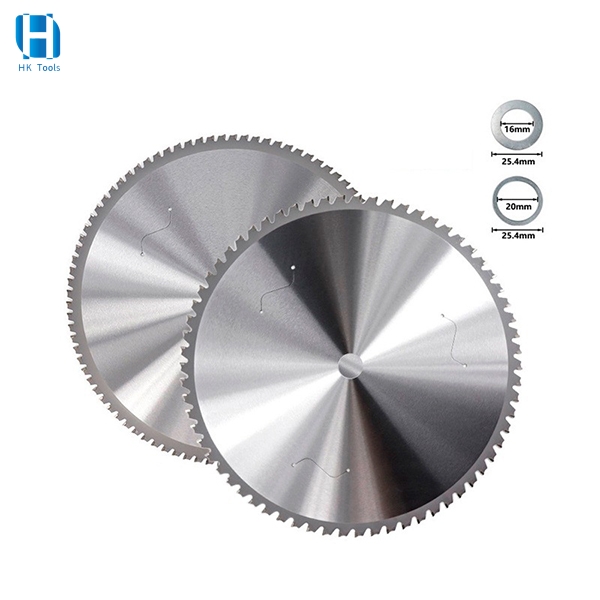

| Arbor Hole Size | All size is available upon request,such as 5/8'', 1'', 20mm, 22.23mm, 25mm, 30mm, 35mm...etc |
| Teeth Design | Teeth number could be adjusted upon request; Hook angle could be adjusted upon request |
| Package | One piece in one PVC double blister, paper box or PVC Skin Card |
| Features | 1.This TCT Circular Saw Blades are designed as ferrous metal cutting blades that suitable for cutting steel and iron profiles, such as steel. 2.Flat-top (FT) teeth cut the entire kerf using both sides to remove material quickly and efficiently without creating too many chips or splinters. 3.Tungsten carbide teeth provide excellent wear and heat resistance. positive cutting angle which provides fast and efficient removal of chips and swarf. 4.Fully hardened steel blade body – delivers accuracy and resists bending and deflection for true cuts. 5.Heat expansion slots allow the blade rim to expand and contract without warping for straight and accurate cuts. 6.Equipment use with Circular Saw, Miter Saw, Table Saw, Radial Arm Saw, etc. |

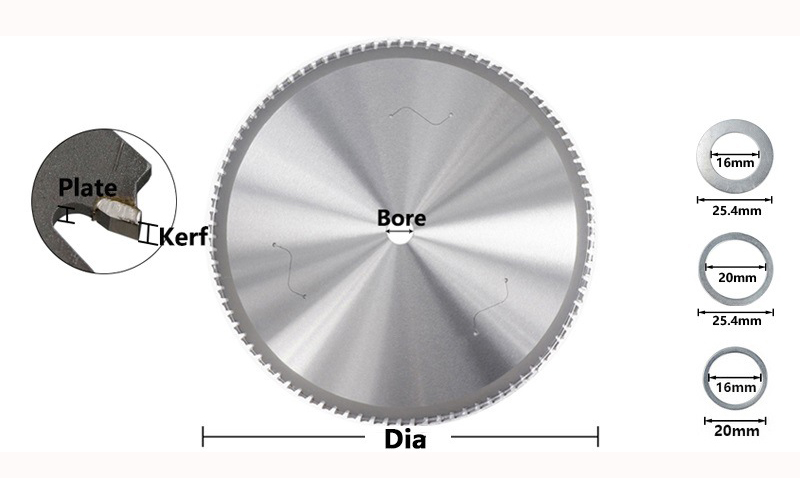

Product Size
|
Specification |
Diameter |
Teeth No. |
Bore |
Kerf |
Plate |
|
180*2.0*1.5*20*36T |
180mm |
36T |
20mm |
2.0mm |
1.5mm |
|
230*2.0*1.5*25.4*48T |
230mm |
48T |
25.4mm |
2.0mm |
1.5mm |
|
305*2.4*1.8*25.4*60T |
305mm |
60T |
25.4mm |
2.4mm |
1.8mm |
|
305*2.4*1.8*25.4*80T |
305mm |
80T |
25.4mm |
2.4mm |
1.8mm |
|
355*2.6*2.0*25.4*66T |
355mm |
66T |
25.4mm |
2.6mm |
2.0mm |
|
355*2.6*2.0*25.4*80T |
355mm |
80T |
25.4mm |
2.6mm |
2.0mm |
|
355*2.6*2.0*25.4*90T |
355mm |
90T |
25.4mm |
2.6mm |
2.0mm |
|
4”*1.2*1.6*20*20T |
4inch |
20T |
20mm |
1.6mm |
1.2mm |
|
7”*1.5*1.9*20*32T |
7icnh |
32T |
20mm |
1.9mm |
1.5mm |
Custom-tailor would be available against customers’ requirements
Application
Scope of application

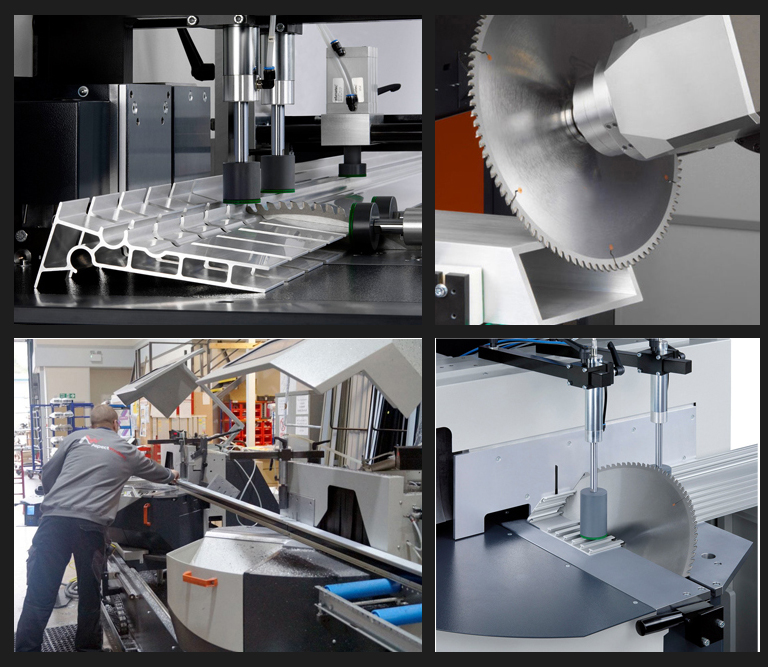

Application Machines

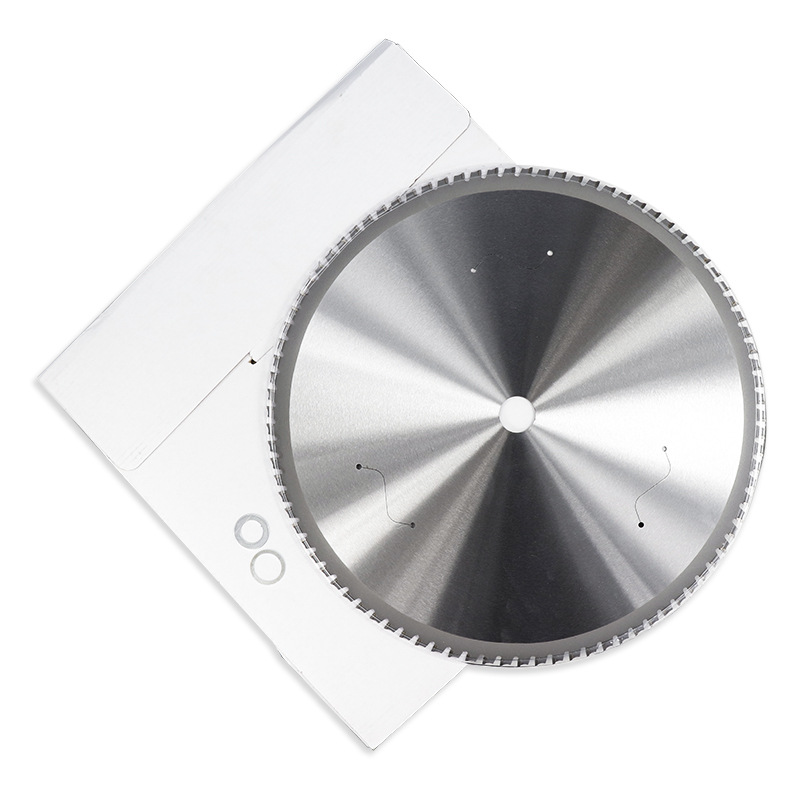

Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
