Customized Two Heads HSS Double Ended Drill Bits For Metal Thin Sheet Drilling

Short Description:

Double ended or sheeter drill bits are excellent for thin gauge materials such as sheet metal.

Commonly used in automotive and truck body fabrication as well as truck and trailer repair.

The short overall length provides added rigidity and the double cutting ends allows for twice the longevity of a single ended drill bit.

When the first cutting edges dull on one side, simple flip over to use the sharp side.

Send email to us

Product Detail

Product Tags

Product Information

Product Name	Double Ended Drill Bit
Material	HSS 6542
Size	3.0 - 5.2mm
Machining Process	Through high-precision CNC machine tools and strict Heat treated full grinding
Use	Drilling of stainless steel, iron, aluminum alloy, wood, plastic, etc.
Applicable Equipment	Drilling of drilling machines, bench drills, hand drills and other tools Work
Features	1. Sharp blade: The cutting edge adopts full grinding process, which is sharp and wear-resistant, and the hole cutting is fast 2. Deepened chip removal groove: double thread chip removal groove, smooth chip removal and improved work efficiency 3. High-quality material selection: high-quality drilling performance comes from the use of high-performance and high-quality 6542 high-speed steel

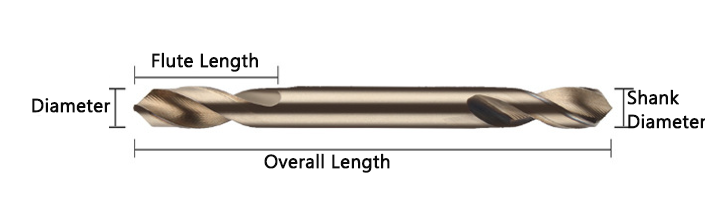

Product Size

Diameter	Flute Length	Shank Diameter	Overall Length
3.0mm	10.0mm	3.0mm	46.8mm
3.2mm	15.0mm	3.2mm	48.9mm
3.5mm	14.0mm	3.5mm	51.7mm
4.0mm	16.0mm	4.0mm	54.9mm
4.2mm	16.0mm	4.2mm	54.3mm
4.5mm	16.0mm	4.5mm	55.2mm
5.0mm	16.0mm	5.0mm	56.1mm
5.2mm	16.5mm	5.2mm	56.8mm

Custom-tailor would be available against customers’ requirements

Application

Scope of application

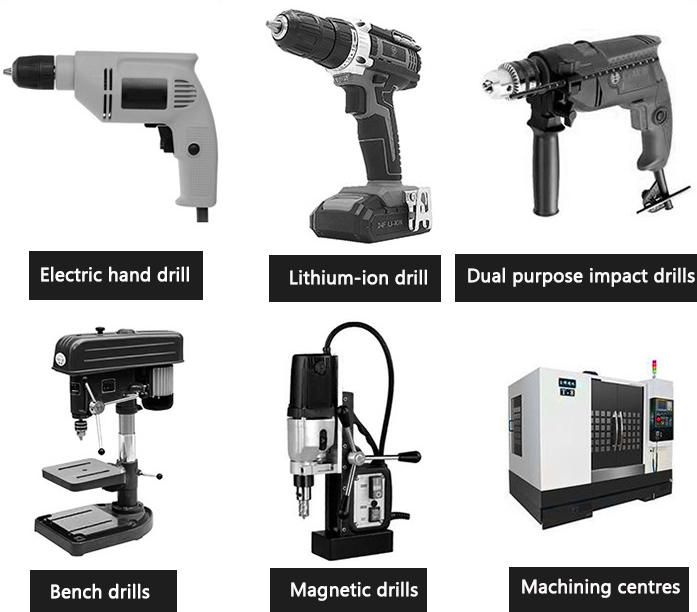

Application Machines

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
