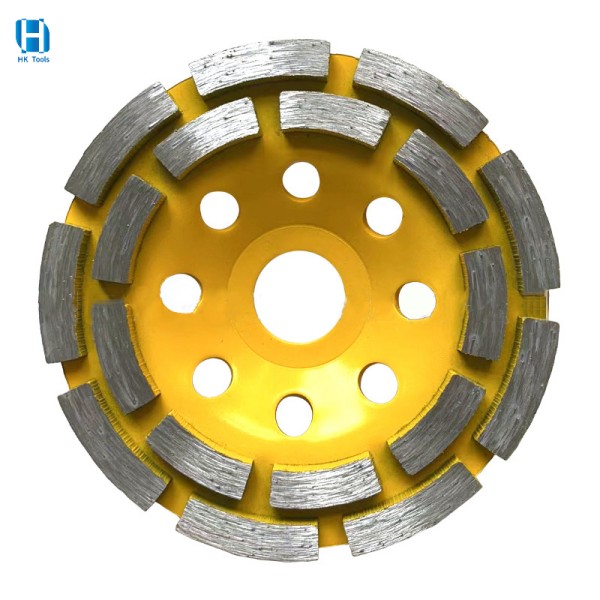

Diamond double row cup grinding wheel for stone grinding Concrete Construction Material

Short Description:

Wide Applications :Common used for dry/wet grinding of concrete, granite, stone, marble, tile, masonry and some other construction material to smooth uneven surfaces and remove flashing.


Product Detail

Product Tags

Product Information

Product name
Diamond cup wheel
Blade material
Diamond
Process
Hot Pressed Sintered
Size
80-180mm
Surface Finish
Color painting
Segment Teeth thickness
5mm
Feature
1.The high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer blade life.

2.The double row of diamonds on these blades provides for heavy material removal and provides longer life.
3.Grinding segments with heat treated steel bodies which provide increases durability and wheel life.
4.Venting holes for fast, dry or wet grinding with long life.
5.Suitable for use on grinding on marble, tile, concrete, and rock.

Product Size

Type
Inch
Seg. Dimension (mm)
Segments
Double Row
diamond wheel
4"
(O)30x8x5
(I)20x8x5
16
4.5"
(O)30x8x5
(I)20x8x5
16
5"
(O)31x8x5
(I)22x8x5
18
6"
(O)31x8x5
(I)22x8x5
20
7"
(O)31x8x5
(I)28x8x5
24
7"
24x5
40

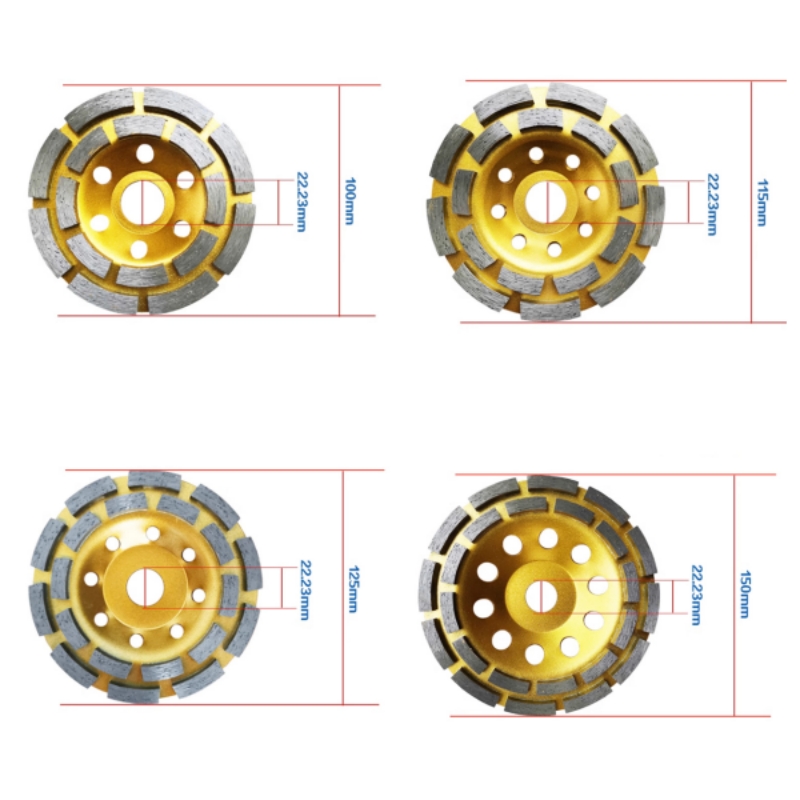

diamond cup wheel size

Custom-tailor would be available against customers’ requirements

Application

                                              Application Range

 Display of various products

application range

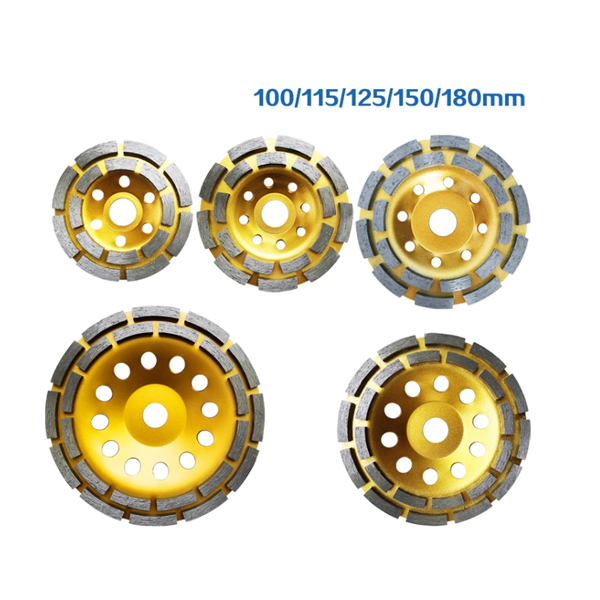

grinding wheel product display

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

grinding wheel package
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
