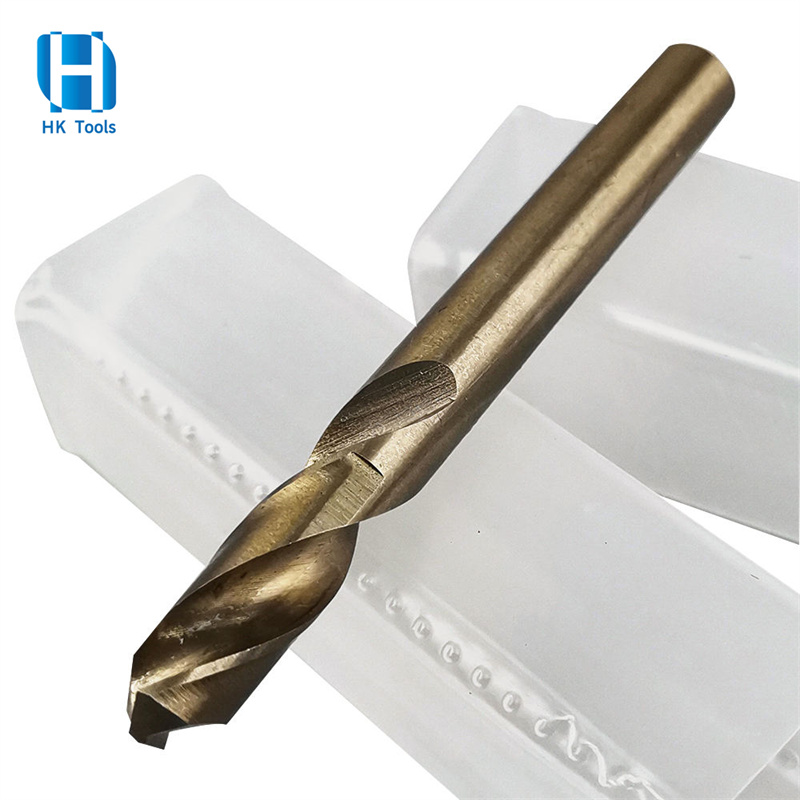

DIN 1897 Extra Short HSS Straight Shank Stub Twist Drill Bits
Product Description
| Product Name | DIN1897 extra short HSS Stub Drill Bit |
| Material | HSS 4241/4341/6542/M35/M42 |
| Process | Milled/Roll forged/Fully ground |
| Standard | DIN 1897 |
| Shank type | Straight shank /round shank is widely used on electric hand drills bench drills and drilling machines |
| Size | 1mm-20mm /3/64”-1/2” |

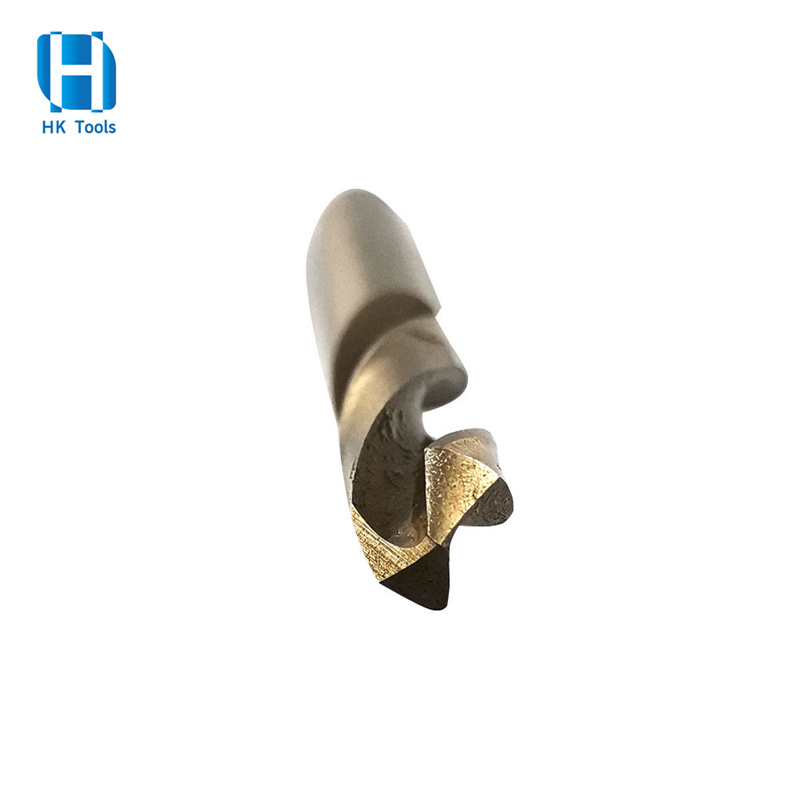

| Point Angle | 118° / 135° or split point |
| Surface Finish | Black Oxide/Polish white/Tin-coated/Amber/Black & White |
| Packing | 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister |
| Payment term | T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances |
| Features | 1.Withstands high drill point pressure due to short overall length.
2.Excellent concentric. Polished type N flute with right hand cutting edge, eliminates binding for faster chip removal and faster cutting with less effort. 3.Application: Most suited for drilling sheet and thin walled materials. Suitable for drilling in sheet steel, thin alloyed and non-alloyed material up to 900 N/mm².Also suitable for wood and plastics. |
Product Size

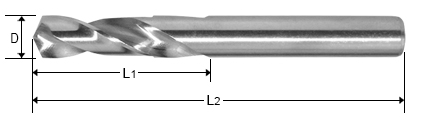

DIN 1897 Standard HSS twist drill bits sizes
| Diameter | Flute Length | Overall Length | Diameter | Flute Length | Overall Length |
| D(mm) | L1(mm) | L2(mm) | D(mm) | L1(mm) | L2(mm) |
| 1 | 6 | 26 | 14.25 | 56 | 111 |
| 1.5 | 9 | 32 | 14.5 | 56 | 111 |
| 2 | 12 | 38 | 14.75 | 56 | 111 |
| 2.5 | 14 | 43 | 15 | 56 | 111 |
| 3 | 16 | 46 | 15.25 | 58 | 115 |
| 3.5 | 20 | 52 | 15.5 | 58 | 115 |
| 4 | 22 | 55 | 15.75 | 58 | 115 |
| 4.5 | 24 | 58 | 16 | 58 | 115 |
| 5 | 26 | 62 | 16.25 | 58 | 119 |
| 5.5 | 28 | 66 | 16.5 | 58 | 119 |
| 6 | 28 | 66 | 16.75 | 58 | 119 |
| 7 | 34 | 74 | 17 | 58 | 119 |
| 7.5 | 34 | 74 | 17.25 | 62 | 123 |
| 8 | 37 | 79 | 17.5 | 62 | 123 |
| 8.5 | 37 | 79 | 17.75 | 62 | 123 |
| 12.7 | 51 | 102 | 18 | 62 | 123 |
| 12.8 | 51 | 102 | 18.25 | 62 | 127 |
| 12.9 | 51 | 102 | 18.5 | 62 | 127 |
| 13 | 51 | 102 | 18.75 | 62 | 127 |
| 13.5 | 54 | 107 | 19 | 62 | 127 |
| 14 | 54 | 107 | 19.25 | 66 | 131 |
| 14.25 | 56 | 111 | 19.5 | 66 | 131 |
| 14.5 | 56 | 111 | 19.75 | 66 | 131 |
| 14.75 | 56 | 111 | 20 | 66 | 131 |
