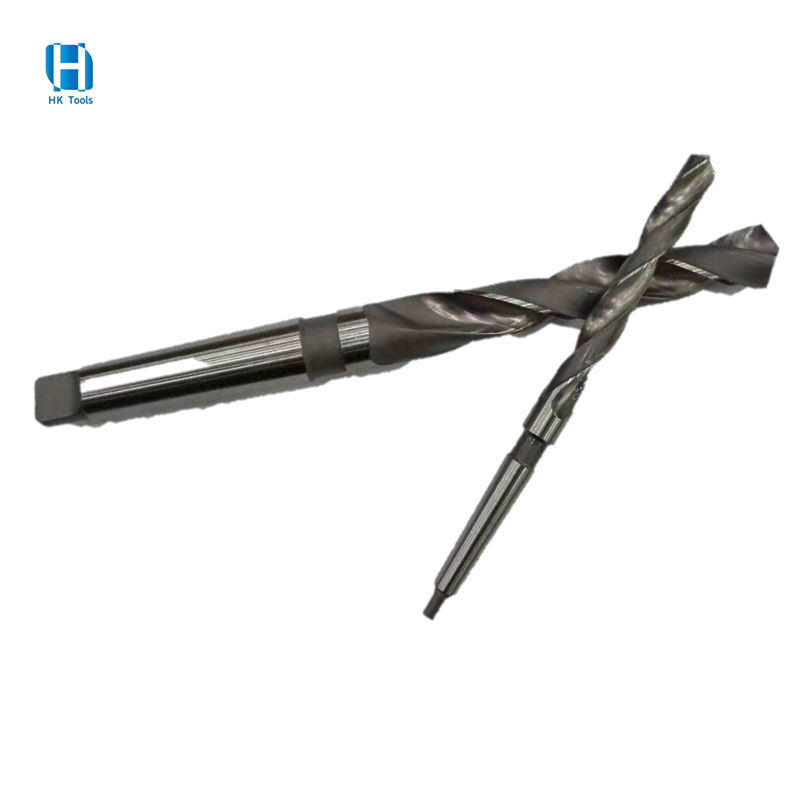

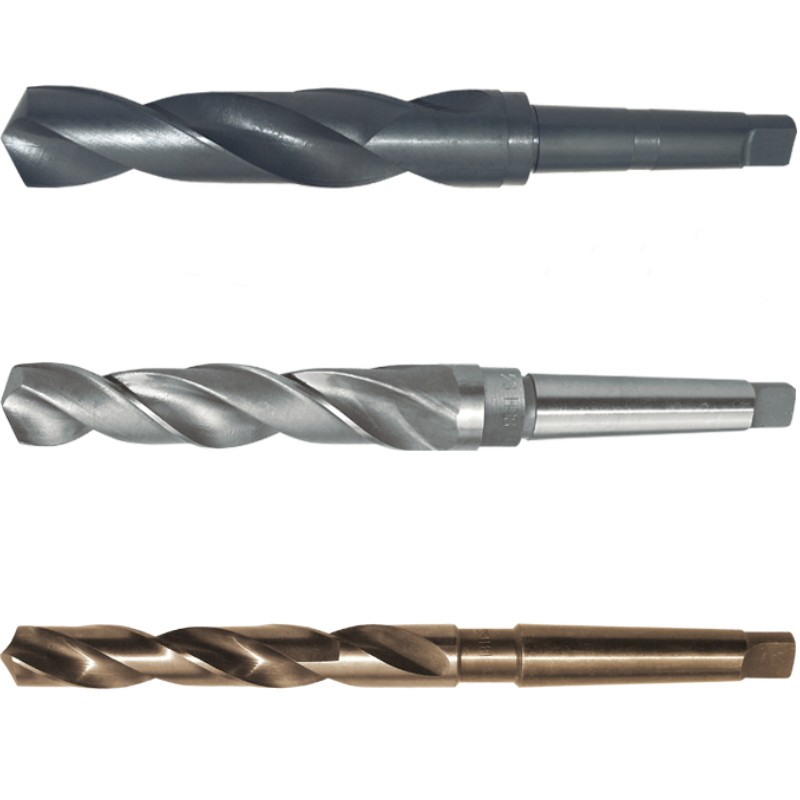

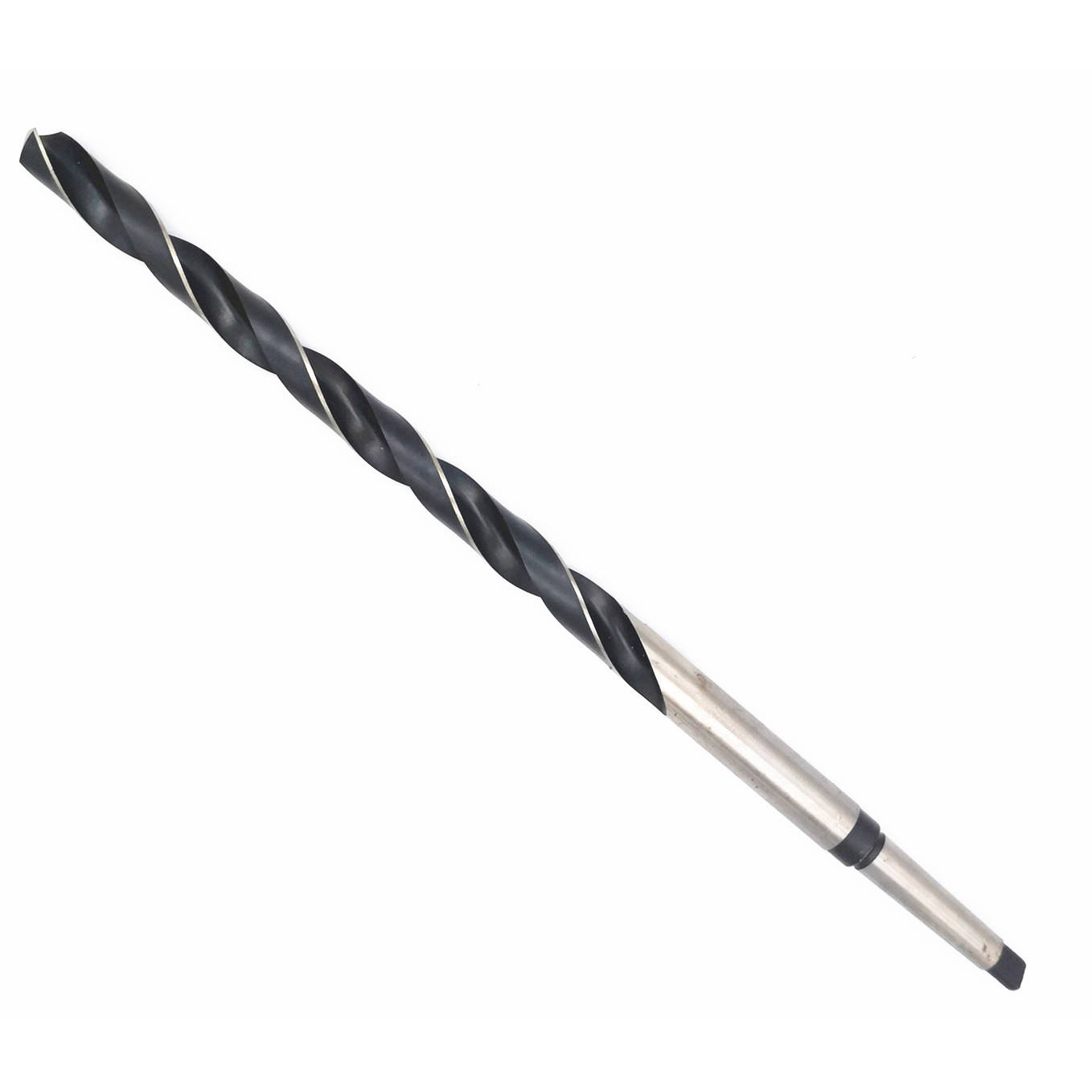

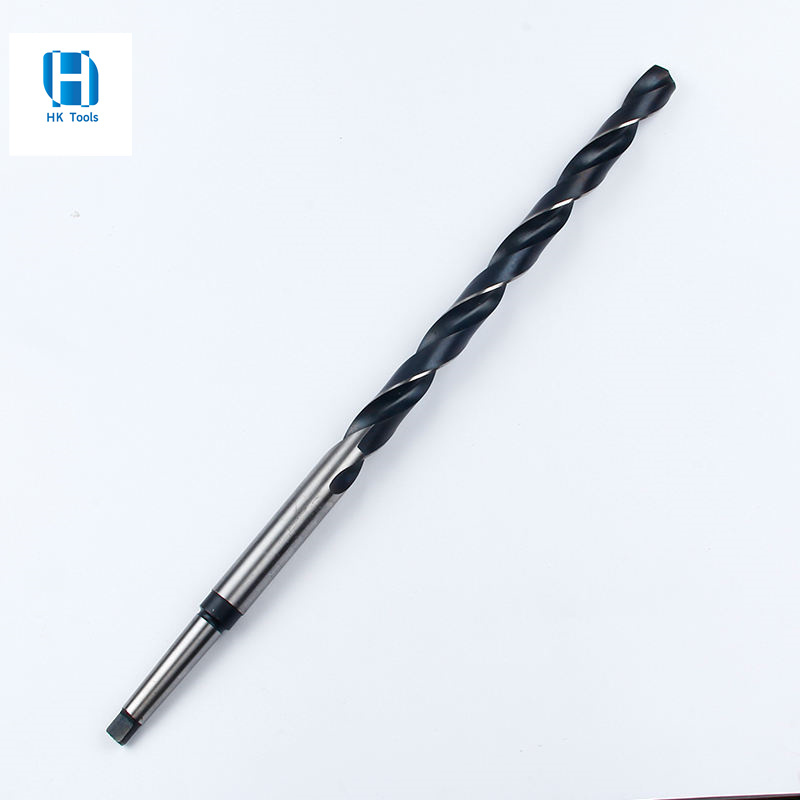

DIN1870 Extra Long HSS Morse Taper Shank Twist Drill Bit for Metal Drilling

Short Description:

Our extra Long taper shank twist drill bits for drilling metal that come with a nitride and tin finish giving your drill bit the perfect coverage for years to come. This general-purpose drill can easily drill through a number of lengthy bases. Such as stainless steel, iron, alloy, and other general steels you might come into contact with.


Product Detail

Product Tags

Product Information

Product Name

HSS DIN 1870 Extra Long Morse Taper Shank Drill Bit for Metal Drilling

Material

HSS 4241 4341 6542-M2

Process

Fully Milled

Standard

DIN1870

MT No.

No.1 to No.4

Size

6.5mm - 100mm

Flute Type

Type N, Right Hand Cutting

Point Angle

118 Degree

Surface Finish

Black & White (Black Oxide, Gray & Bright, Bright, Amber Color, Titanium Coating are Also available)

Package

One Piece in Paper Box, Plastic Box, or Wooden Box

Features

1. Extra-long flute is ideal for deep hole drilling of difficult-to-cut materials and efficient machining of deep holes
2. High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
3. Taper shank drills are designed to give maximum performance in drilling many different materials, under a wide range of applications.
4. High performance HSS special drill bit with MORSE  taper shank for high precision drilling of larger bore diameter
5. Black oxide treatment adds lubricity and creates small pockets on the surface of the tool that act to hold coolant near the cutting edge.
6. Usage for Metal Drilling, cast steel, grey cast iron, malleable iron, sintered metal and low hardness alloyed materials

Product Size

DIN1870 twist drill bit size
DIN1870 drill bit size

Other Sizes are available,Contact Us to Learn More.

Application

Suitable for drilling stainless steel, heat-resistant steel, alloy steel, cast steel and difficulty cutting materials of HRC32-38.

Taper shank drill bit applications
