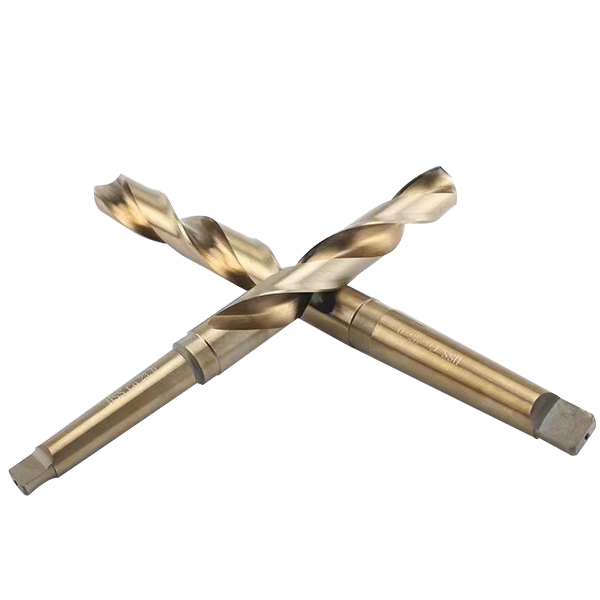

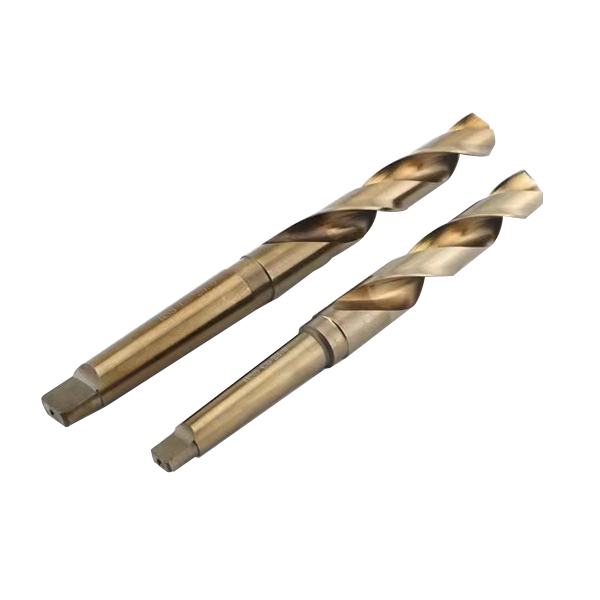

DIN345 HSS-Co Taper Shank Drill Bit M35 For Metal Drilling

Short Description:

HSS Cobalt: Extremely hard and dissipate heat quickly. They are most commonly used for boring in stainless steel and other metals.

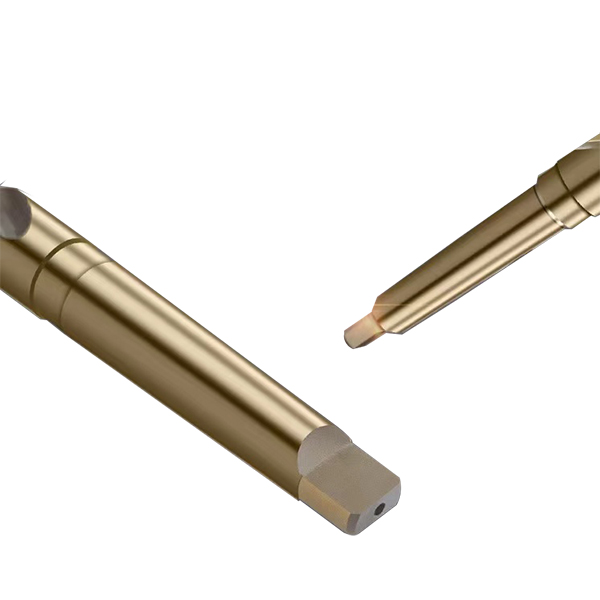

Morse taper shank allows the tool to be inserted directly into the machine’s spindle to facilitate high-torque applications such as large cut diameters.

Designed to perform in a broad range of materials in the iron and steel families.

Send email to us

Product Detail

Product Tags

Product Information

Procuct Name	DIN345 HSS Cobalt M35 Morse Taper Shank Drill Bit for Stainless Steel and Matel Drilling
Material	Cobalt 5% M35 (HSS 4241 4341 6542-M2 is Available)
Process	Milled (Roll Forged is Available)
Standard	DIN345 (ANSI, DIN341, DIN1870 are Also Available)
MT No.	No.1 to No.6
Size	7.5mm-100mm and 3/8" to 4"
Flute Type	Type N, Right Hand Cutting

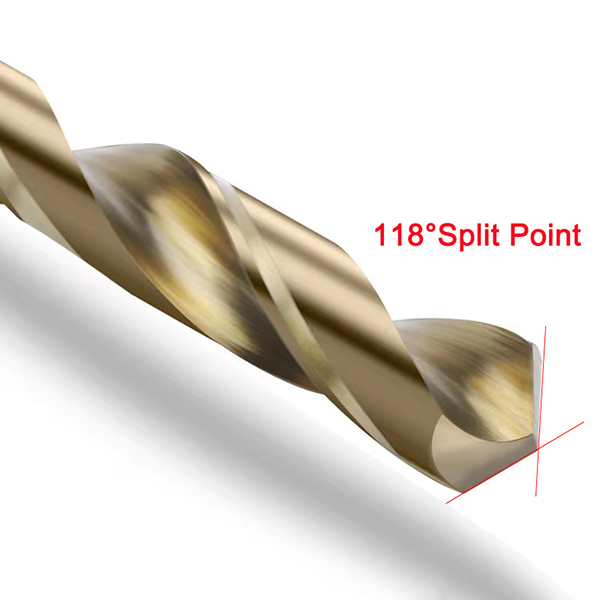

Point Angle	118 Degree (135 Degree Split Point, Thinning Point are Available)
Surface Finish	Amber Color (Black Oxide, Gray & Bright, Black & White, Bright, Titanium Coating are Also available)

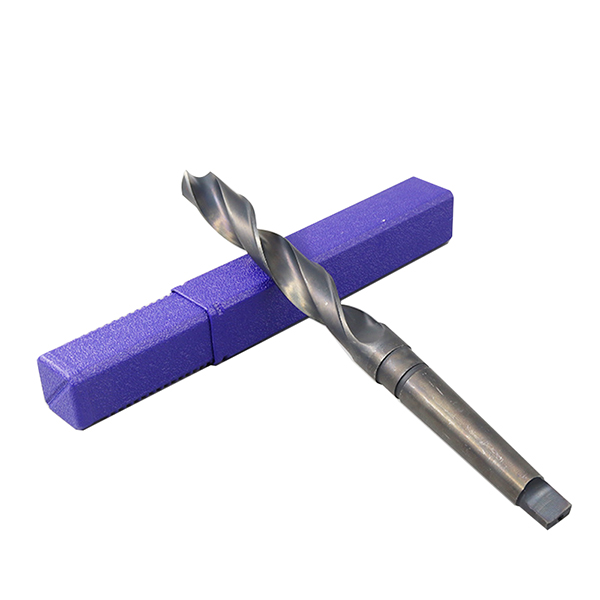

Package	One Piece in Paper Box,Plastic Box,Wood Box.
Features	1. Precise dimension,long life and high efficiency. 2. High-speed steel (HSS) provides hardness for wear resistance. 3. HSS Cobalt: Extremely hard and dissipate heat quickly. They are most commonly used for boring in stainless steel and other metals. 4. Self-centering 118-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge. 5. Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters. 6. When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging. 7. Designed to perform in a broad range of materials in the iron and steel families.

Product Size

Custom-tailor would be available against customers’ requirements

Application

Scope of application

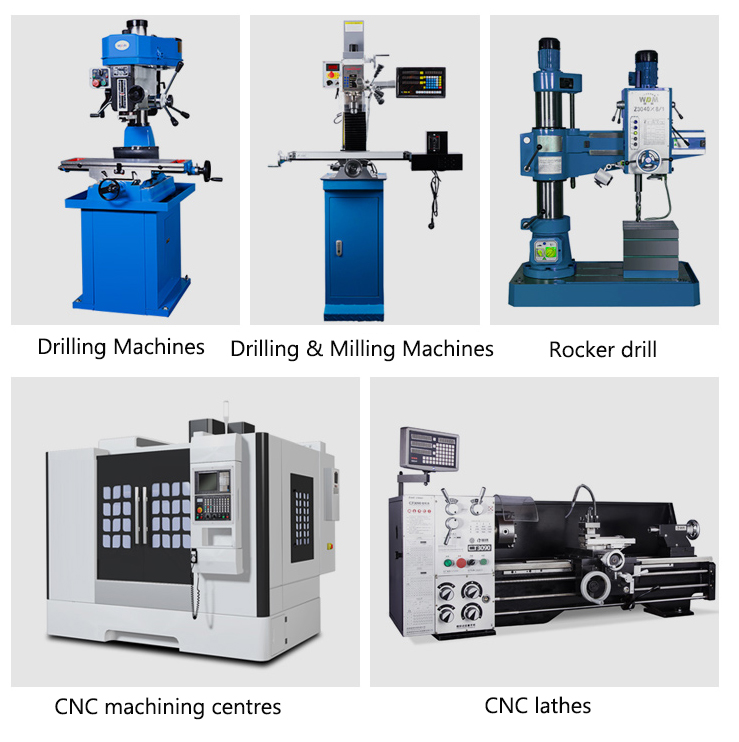

Applicable Machines

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
