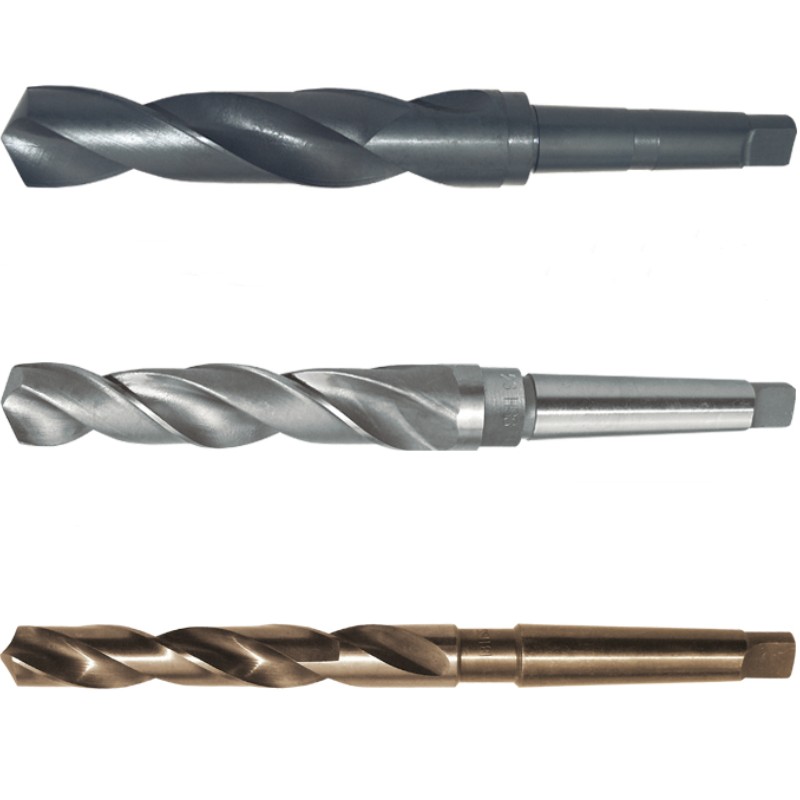

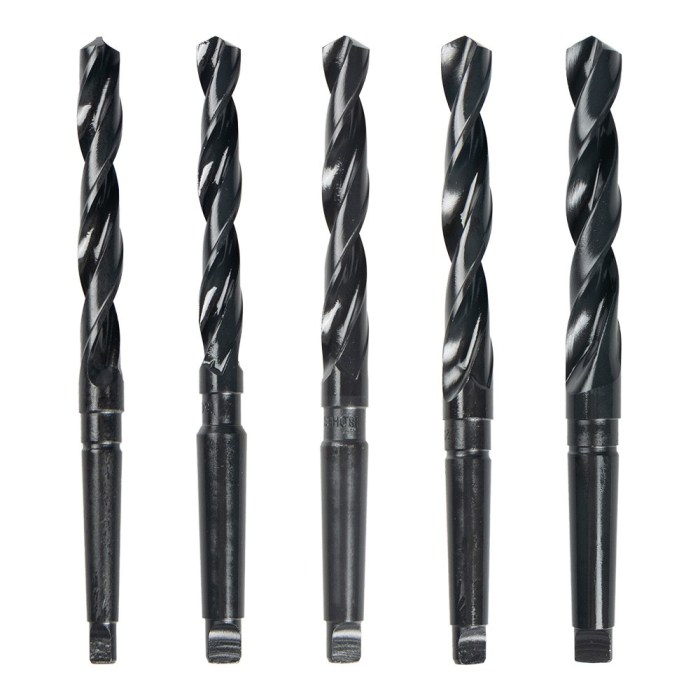

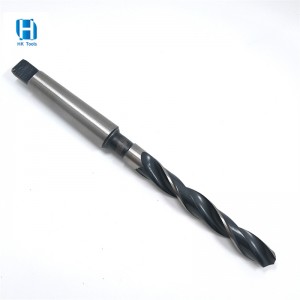

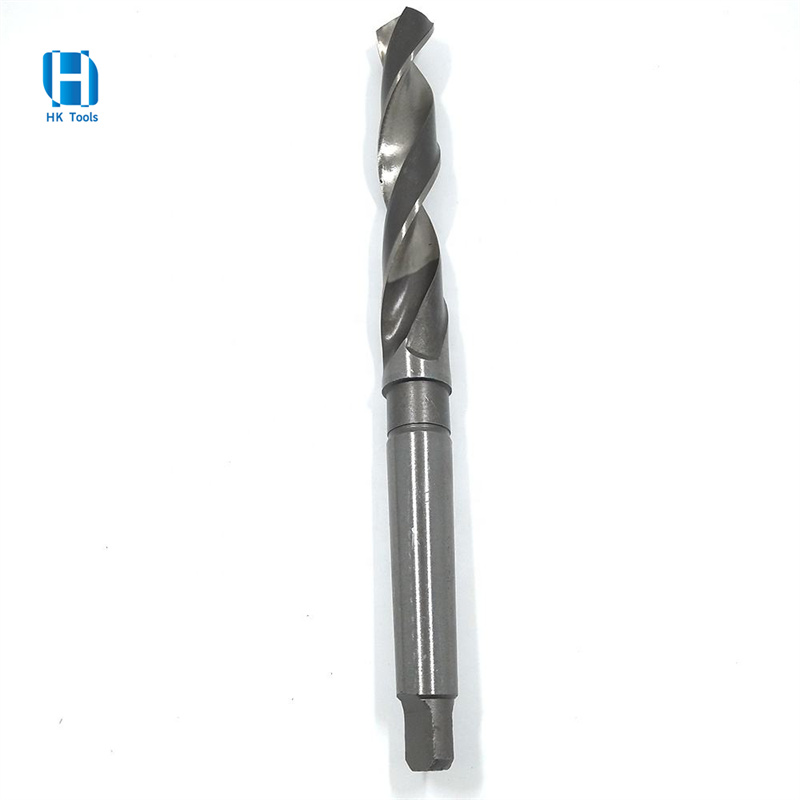

DIN345 HSS Morse Taper Shank Twist Drill Bit For Stainless Steel

Short Description:

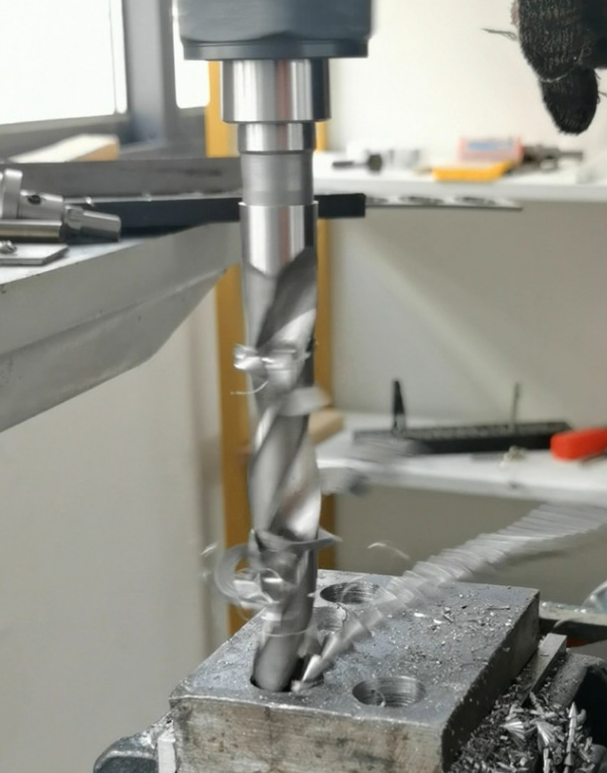

Most all taper shank drill bits have a tang at the base of the shank for holding and removing the bit.The shank of the drill bit tapers towards the cutting edge, providing a secure fit and minimizing the tendency to slip when drilling into hard materials. A taper shank drill (high-speed steel) is a cutting tool that is attached to a drill press, a milling machine, a lathe, etc. and used to drill holes. The base metal, high-speed steel is a material with metal components such as tungsten, molybdenum, and chrome added, and has excellent abrasion resistance and toughness.

Send email to us

Product Detail

Product Tags

Product Information

Material	HSS,HSS Co,Tungsten Carbide,M42,M35,6542(M2),9341,4341,4241
Standard	DIN 345 (jobber series)/DIN 340 (long series)/DIN 1897 (stub series)
Shank	Straight shank drills,taper shank drills,1/2 shank drills
Degree	1)118 degree point angle design for general purpose,
Degree	2)135 double angle facilitates rapid cutting and reduce the working time

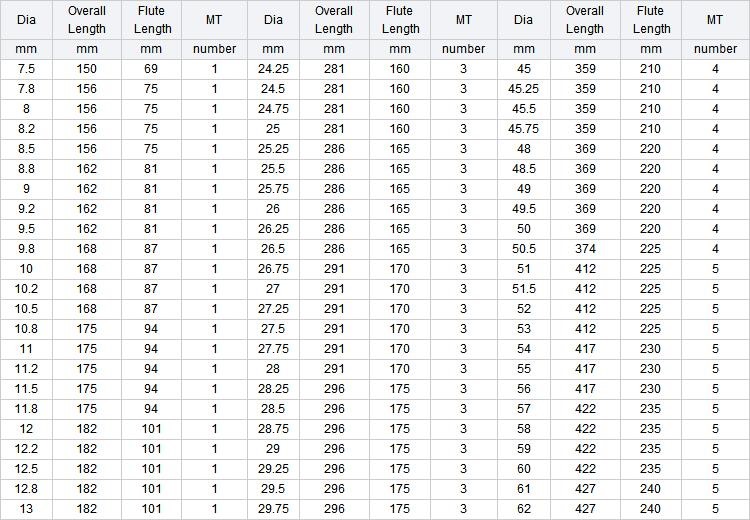

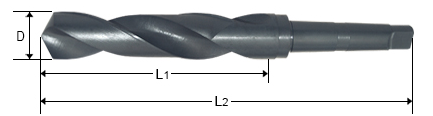

Size	7.5-100mm
Process	Roll forged,edge ground,fully ground,milled
Surface finish	Black finish,TIN Coated,bright finished,black oxide,rainbow,nitriding etc.
Hardness	58-66HRC
Specification	Normal standard:0.5-23mm,or as your requirement.
Color	White,yellow,black, etc.
Usage	Metal Drilling,Stainless steel,aluminum etc.
Customize	Accept
Function	Suitable for drilling metal, iron,stainless steel ,steel and wood
Features	Quality HSS ensures sharp, fast in any material, offers good hardness, toughness, wear resistance Premium Heat treated HRC63-66 is durable and can withstand heavy duty operation for a long tool life Black Oxide Surface holds up lubricant better and lead coolant near the cutting edge for smoother drilling MT shank allows drills installed directly into the machine’s spindle for high-torque applications
