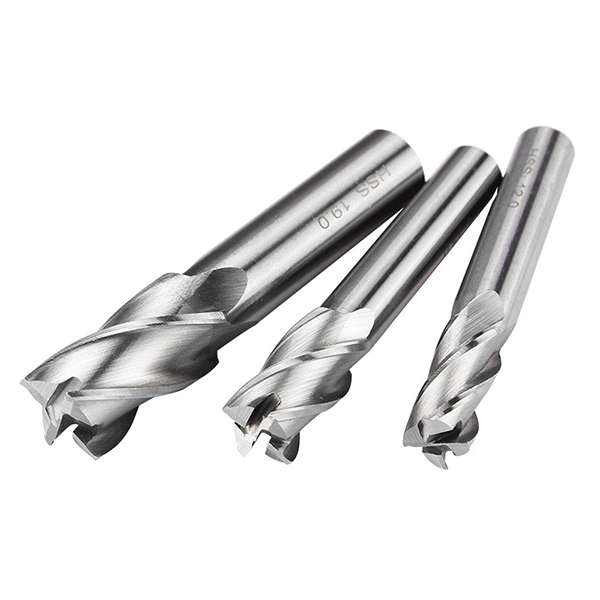

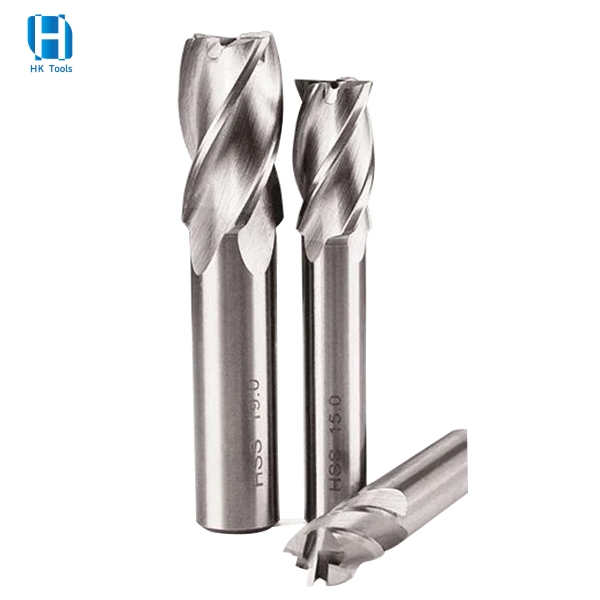

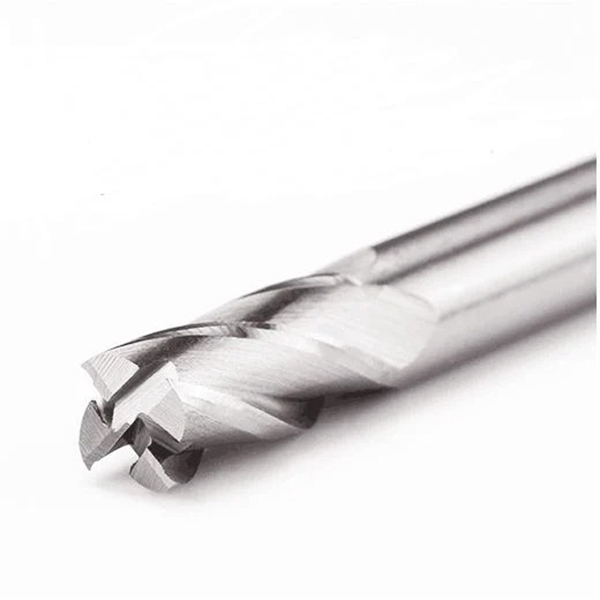

DIN844 Straight Shank HSS End Mill With 4 Flutes
Product Information
| Procuct Name | DIN844 4 Flutes HSS End Mill |
| Material | HSS |
| Process | Milled |
| Flute Type | 4 Flutes |
| Size | 1.5mm - 32mm |
| Surface Finish | Bright Finish |
| Package | One Piece in One Plastic Calm Shell |
| Features | 1.Suitable for milling lateral face, end face, flute and step face. Also for two vertical planes and form plane. To passing core end edgeend mill, also used for drilling and insertion milling. In structural steels with resistance 1200 N/mm². 2.Having an excellent self-centering capability, can processing H7 workpiece efficiently. 3.Processed holes can achieve high position and have a good straightness and surface finish. 4.For materials with short chips such as cast iron, silicon-aluminum alloy, etc 5.Designed for a general performance to carbon steel ,tool steel, alloy steel and stainless steel |

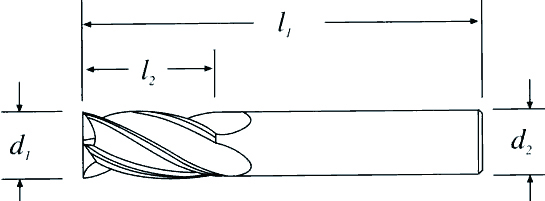

Product Size
|
d1 |
d2 |
L2 |
L1 |
|
1.5 |
6 |
7 |
51 |
|
2 |
6 |
7 |
51 |
|
3 |
6 |
8 |
52 |
|
4 |
6 |
11 |
55 |
|
5 |
6 |
13 |
57 |
|
6 |
6 |
13 |
57 |
|
7 |
10 |
16 |
66 |
|
8 |
10 |
19 |
69 |
|
9 |
10 |
19 |
69 |
|
10 |
10 |
22 |
72 |
|
11 |
12 |
22 |
79 |
|
12 |
12 |
26 |
83 |
|
13 |
12 |
26 |
83 |
|
14 |
12 |
26 |
83 |
|
15 |
12 |
26 |
83 |
|
16 |
16 |
32 |
92 |
|
17 |
16 |
32 |
92 |
|
18 |
16 |
32 |
92 |
|
20 |
20 |
38 |
104 |
|
21 |
20 |
38 |
104 |
|
22 |
20 |
38 |
104 |
|
23 |
20 |
38 |
104 |
|
24 |
25 |
45 |
121 |
|
25 |
25 |
45 |
121 |
|
26 |
25 |
45 |
121 |
|
28 |
25 |
45 |
121 |
|
30 |
25 |
45 |
121 |
|
32 |
32 |
53 |
133 |
Custom-tailor would be available against customers’ requirements
Application
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

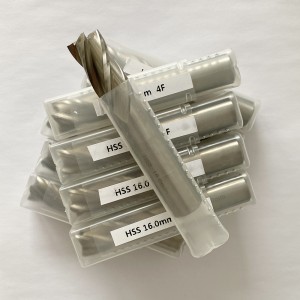

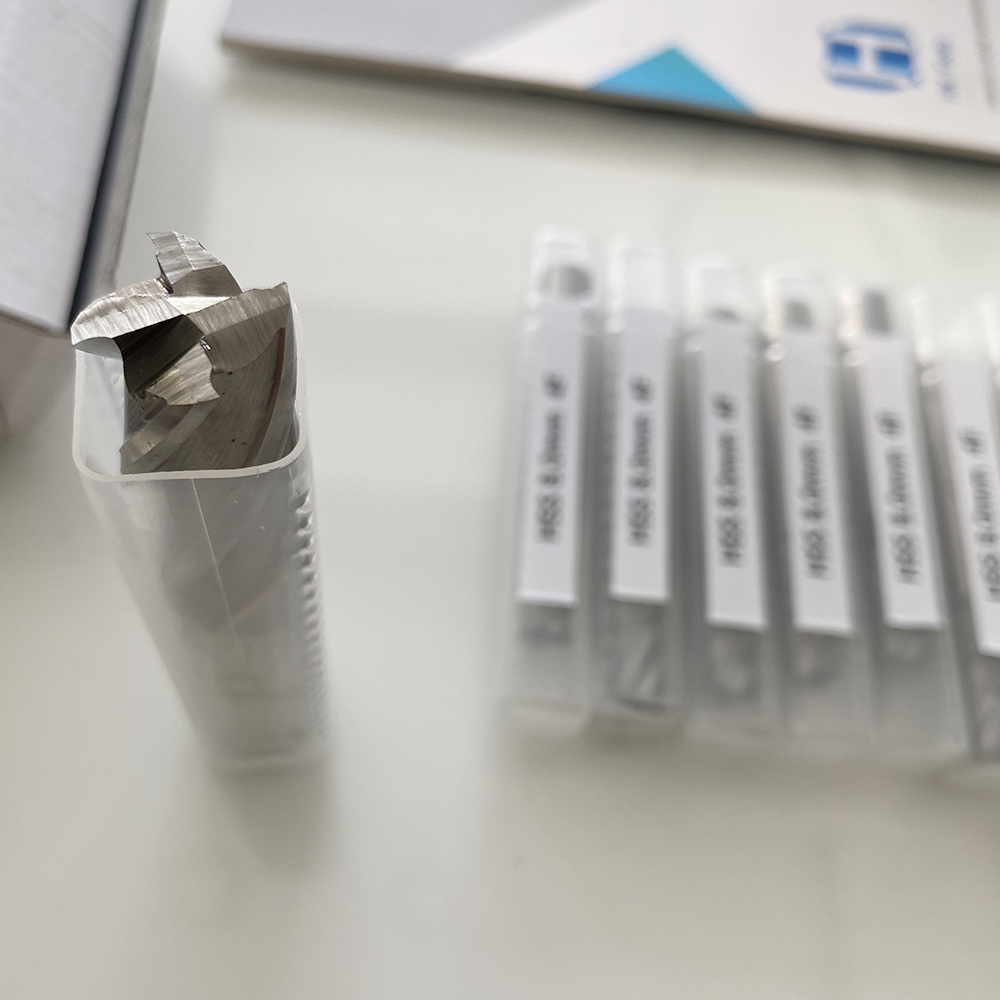

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
-
