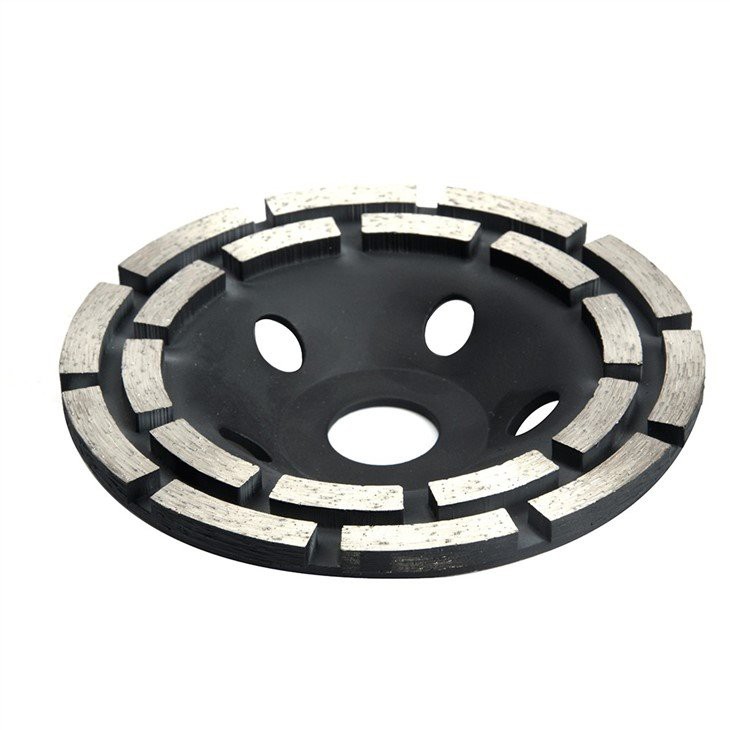

Double Row Cup Wheel Grinding Wheel for Granite Marble Concrete Floor

Short Description:

1. This product is the most efficient tool applied in fast-grinding,edge-trimming, repairing and maintenance of concrete, stone and other similar materials

2. It is applied on angle grinder and pneumatic power tools,

3. Regular diameter: (80mm),(100mm),(125mm),(150mm),(180mm)

4. Size: 125mm double row grinding cup wheel, Body thickness:2.5 mm


Product Detail

Product Tags

Product Information

Size 125mm double row grinding cup wheel
Cup wheel Diameter 125mm
Body thickness 2.5 mm
Core diameter 22.23mm
Segment Teeth thickness 5mm
Process type Cold press sintered
Place of Origin Jiangsu,China
Brand HAOKE/OEM
Finishing painting
Body material A3 steel
Application Grinding concrete granite marble.
Features 1.Diamond Cup Grinding Wheel:Provides for very fast cutting action on masonry, stone,and concrete.
2.Hole Design:Air holes designed to aid in maintaining and cooling the cutting pattern and reducing wear

Product Specifications

Diameter
Inch/mm

Connection

Thickness(mm)

Segment
Number

Grit

Model

3"/75

22.23/5/8"-11 M10/M12/M14/M16

5

14

30/40#、40/50#、60/80#、100/120#etc

DOUBLE ROW CUP WHEEL

4"/100

22.23/5/8"-11 M10/M12/M14/M16

5

14

30/40#、40/50#、60/80#、100/120#etc

DOUBLE ROW CUP WHEEL

5"/125

22.23/5/8"-11 M10/M12/M14/M16

5

14

30/40#、40/50#、60/80#、100/120#etc

DOUBLE ROW CUP WHEEL

6"/150

22.23/5/8"-11 M10/M12/M14/M16

5

14

30/40#、40/50#、60/80#、100/120#etc

DOUBLE ROW CUP WHEEL

7"/175

22.23/5/8"-11 M10/M12/M14/M16

5

14

30/40#、40/50#、60/80#、100/120#etc

DOUBLE ROW CUP WHEEL

Product Application

APPLIED MATERIALS:Grinding and polishing,Concrete, Masonry, Granite,Marble and some other construction material.

double row cup wheel application

Application Machine

Marble/bench machine, angle grinder,etc.

double row cup wheel application-1
