Factory High Quality DIN345 M35 HSS Co Morse Taper Shank Twist Drill Bit For Metal Drilling

Short Description:

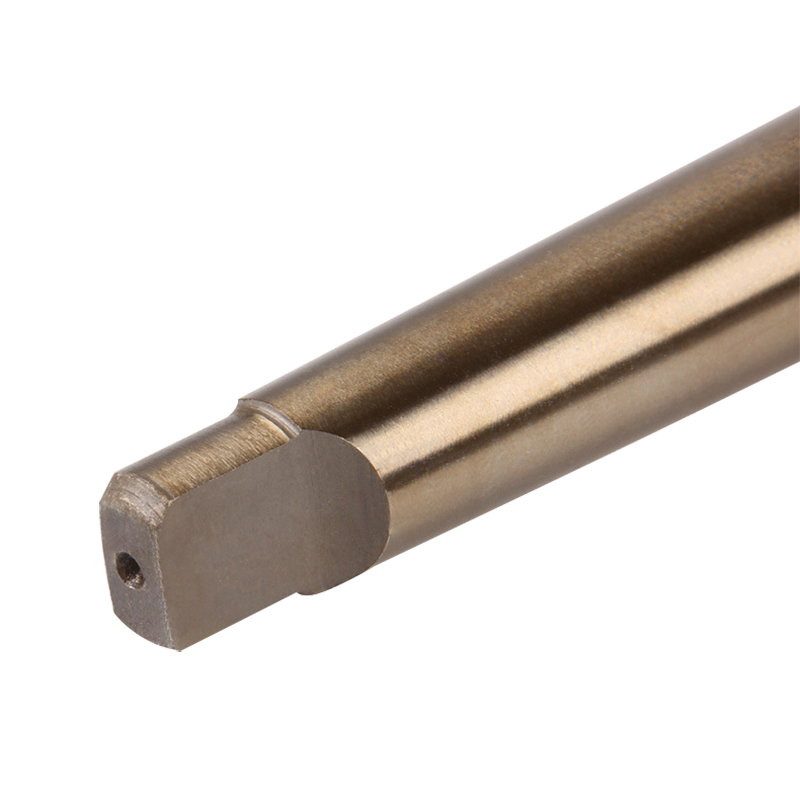

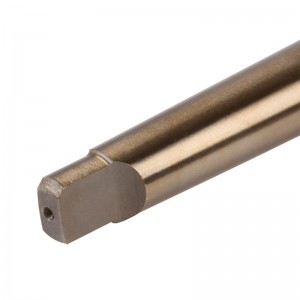

The shank is tapered, which allows for a self-locking fit into corresponding Morse Taper spindles or sleeves. This design ensures a secure, wobble-free connection.
The self-locking taper design can handle high torque without slipping, making these bits suitable for heavy-duty and high-torque applications.
Designed to fit directly into the spindle of a drill press, lathe, or other machine tools equipped with Morse Taper sockets, eliminating the need for a drill chuck.

Send email to us

Product Detail

Product Tags

Product Information

HSS Twist Drill Bits
Manufacturing	Surface Finish						Sharpening
Manufacturing	White	Black	Black&White	TIN Coated	Amber	Black&Gold	118°	135°
Roll Forged		√	√				√	√
Rolled Polished	√	√	√	√	√		√	√
Fully Ground	√	√	√	√	√	√	√	√
Milled	√	√	√	√		√	√
Standards	DIN338, DIN340, DIN1897, DIN1869, DIN345, DIN341
Standards	Jobber Length, Taper Length, Screw Machine Length, Aircraft Extension, Taper Shank(ANSI)
Material	HSS4241, HSS4341, HSS9341, HSS6542(M2), HSS CO5%(M35), HSS CO8%(M42)
Shank	Straight Shank, Taper Shank, Three Flats Shank, Hexagonal Shank, 1/2" 3/8" Reduced Shank
Helix Angle	Type N, Type W, Type H
Rotating	Right Hand, Left Hand
Flute	Normal Parabolic

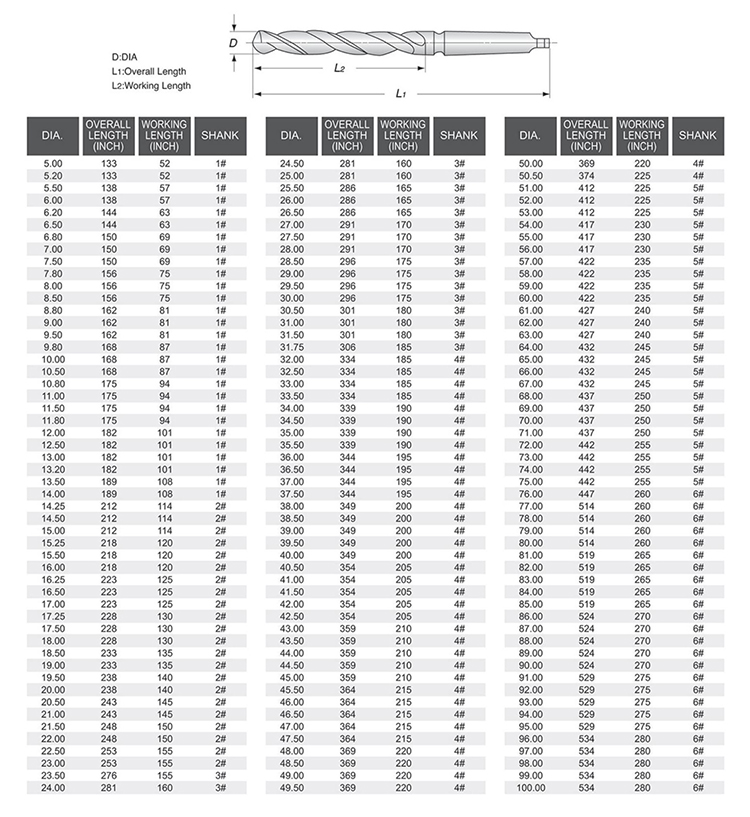

Product Size

Custom-tailor would be available against customers’ requirements

Application

Applicable Materials

Applicable Machines

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
