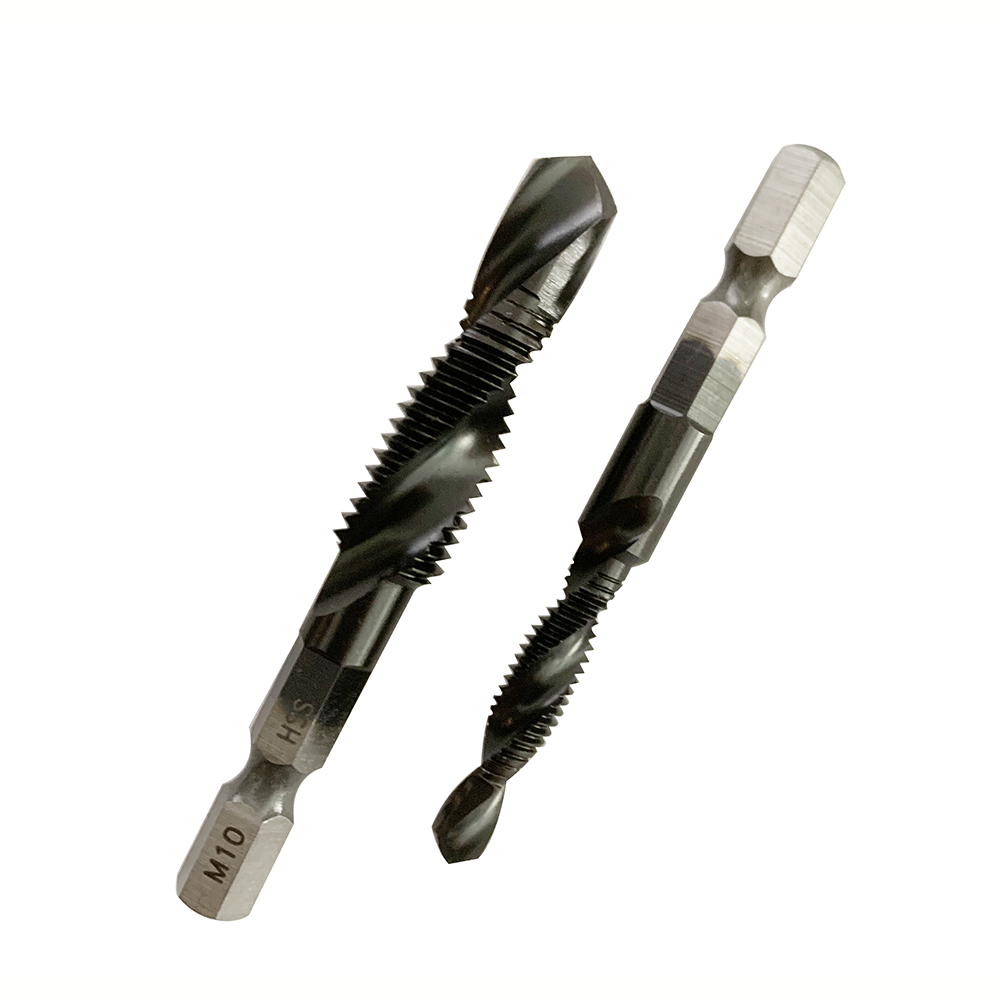

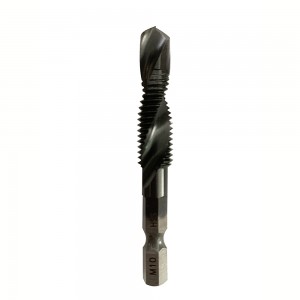

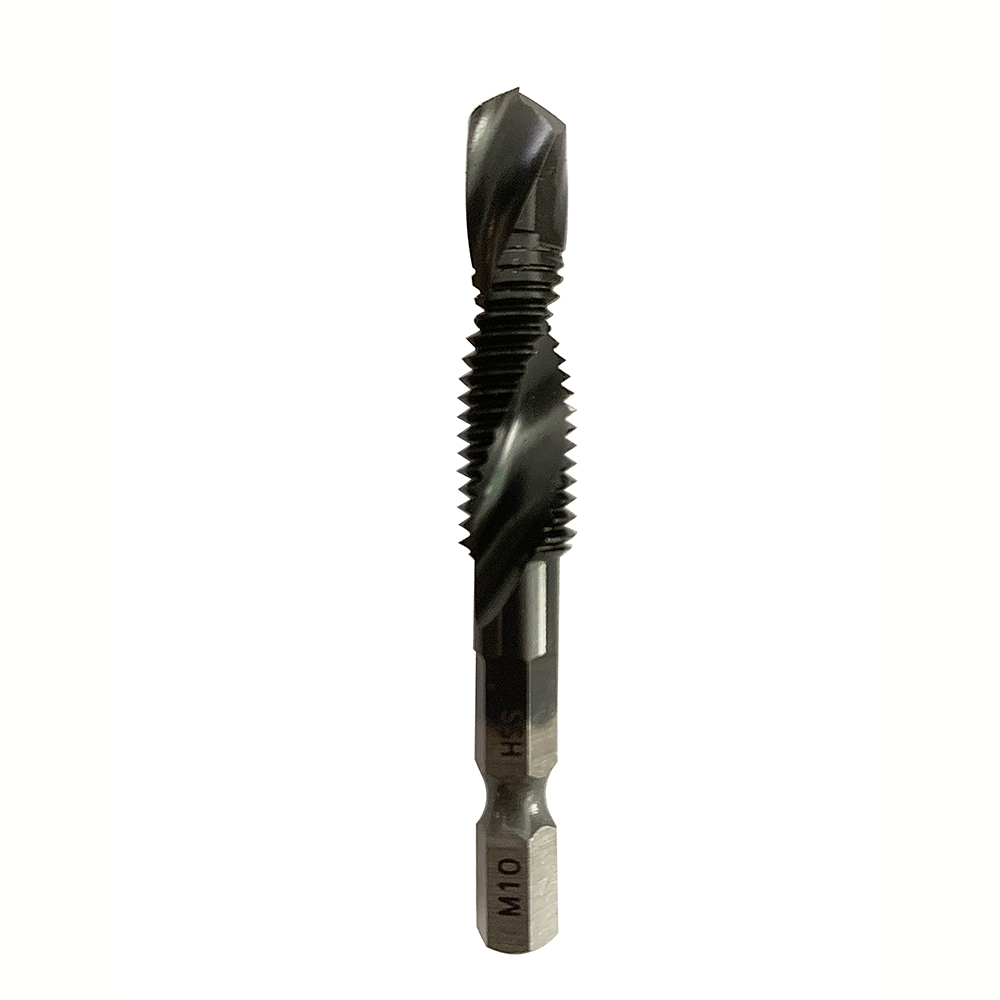

Factory Supply Hex Shank HSS M35 Combination Drill Bit Taps TiAlN Coated For Thread Tools
Product Information
| Product Name | HSS Combination Drill Tap Bit Set |
| Material | HSS or HSS Cobalt |
| Surface Finish | Black Oxide/Titanium/Bright/Black&Gold /Amber/ |
| Shank Type | 1/4" Quick Change Hex Shank |
| Flute Type | Spiral Flute Right Hand Cutting |

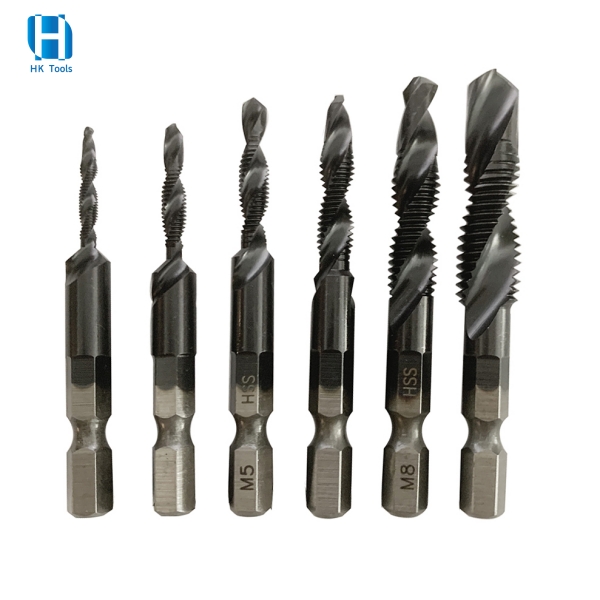

| Size | M3,M4,M5,M6,M8,M10,M12 |
| Features | 1.Complete hole drilling, tapping, deburring and countersinking in one operation with power drill saves labor and time. 2.Self-centering point, do not need assistant center drilling or center punching. 3.Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. 4.Modified bottoming chamfer has additional length to reduce chip load, add tool life, and permit higher tapping speeds. 5.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. 6.Made from HSS with titanium coated, high hardness and rust resistance, durable and long service life. 7.Suitable for drilling, tapping, cutting on soft metal, aluminum plate, iron, etc. |
Product Size
| Specification | Total length(mm) | Length of Drill(mm) | Length of flute(mm) | Net Weight(g/pc) |
| M3 | 65 | 7.5 | 13.5 | 12.5 |
| M4 | 65 | 8.5 | 14.5 | 12.6 |
| M5 | 69 | 9.5 | 15.5 | 12.8 |
| M6 | 69 | 10 | 17.5 | 13.6 |
| M8 | 72 | 14.5 | 20 | 15.2 |
| M10 | 72 | 14.5 | 22 | 17.8 |
Custom-tailor would be available against customers’ requirements
Application
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

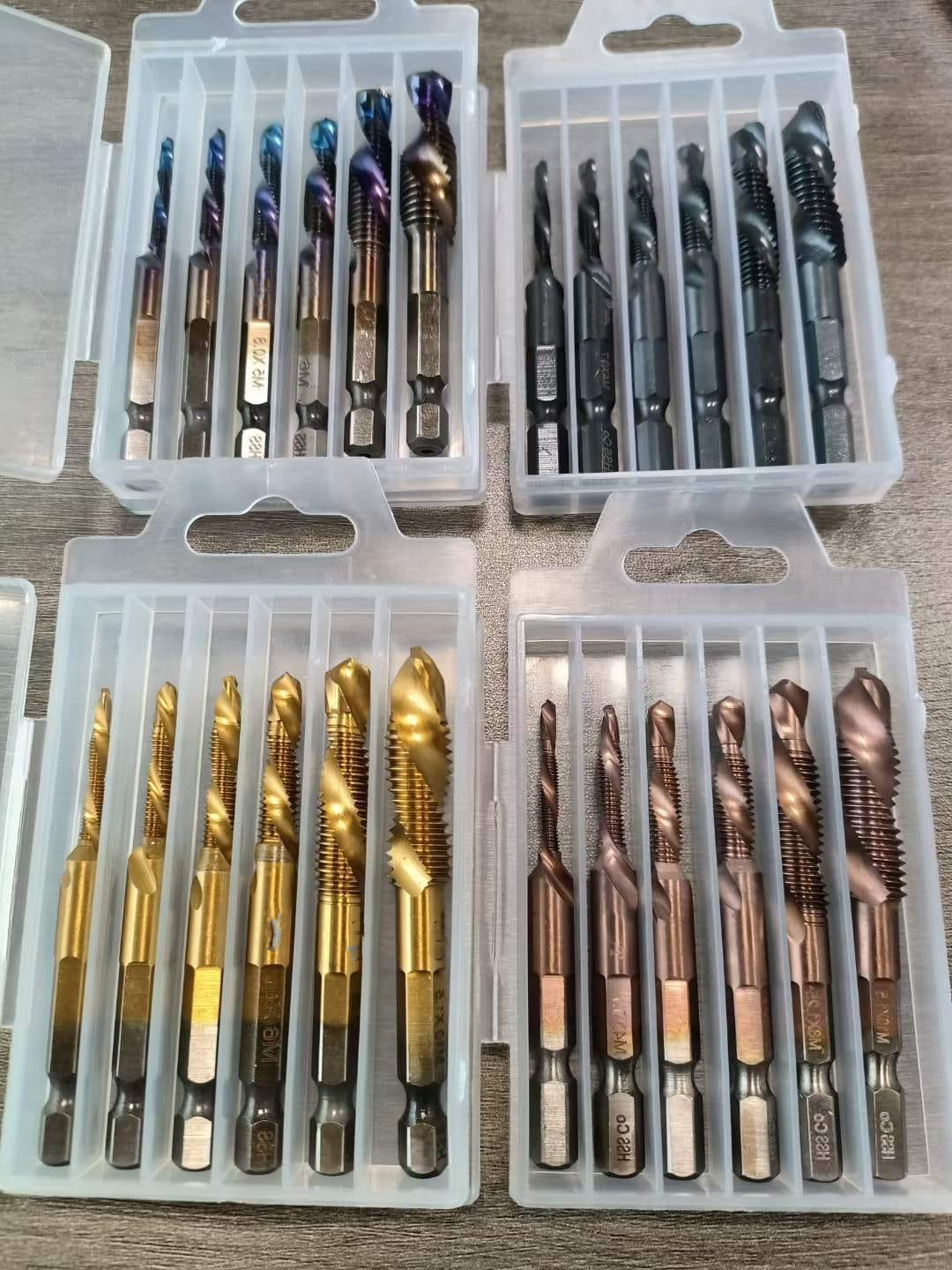

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
-
