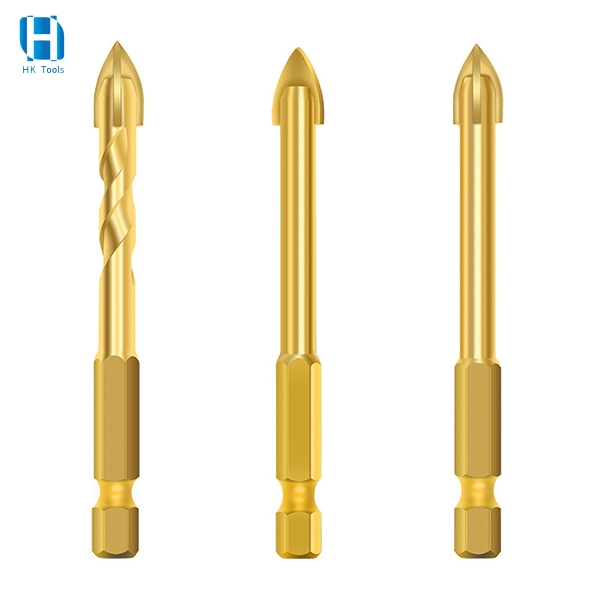

Hexagonal Shank Cross Twist Triangle Drill Bits Carbide For Glass Tile
Product Information
| Product name | Glass drill bit |
| Type | Core Drill Bit |
| Diameter | 4mm/5mm/6mm/8mm/10mm/12mm |
| Overall Length | 72-86mm |
| Finish | Titanium Coated |
| Shank Type | Round Shank |
| Tip type | “+”tip cross tip ; “-” Single Tip |
| Material | Carbon Steel, Carbide |
| Application | Suitable for drilling ceramics, ceramic tiles, glass, brick walls, etc. Be sure to add water to cool the drill when operating. |
| Advantage | High-efficiency,drilling process easier, faster, and more precise. |
| Package | Plastic Bag(Also can be Customized) |
| Features | 1.The classic drilling tool for glass machining. Drills precise and exact holes in sensitive and hard materials 2.The specially ground cutting edges allow a careful drilling process 3.The tool life can be considerably prolonged by means of regrinding 4.During drilling process sufficient cooling an slow rotation speed is needed |

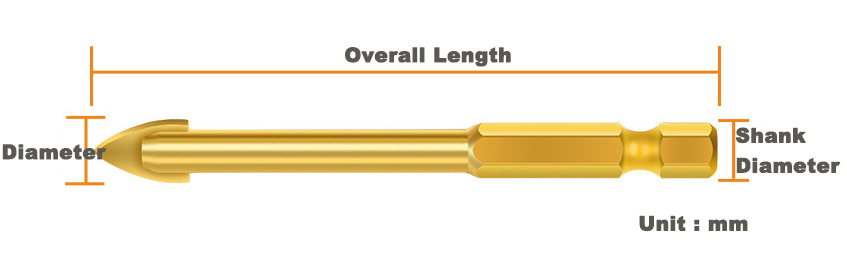

Product Size
|
Item |
Diameter |

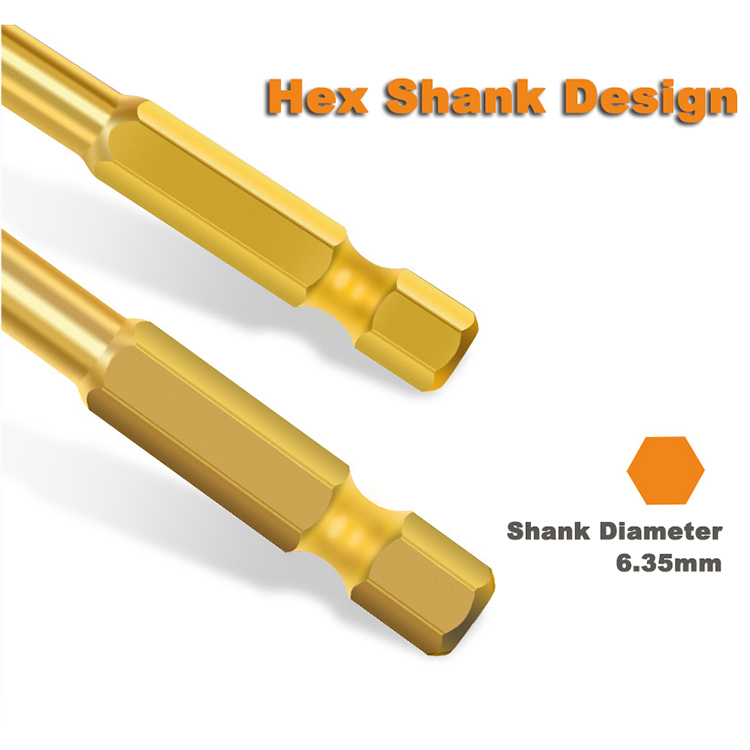

Shank Diameter |
Overall Length |
|

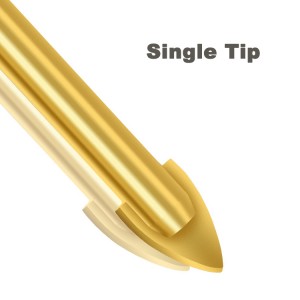

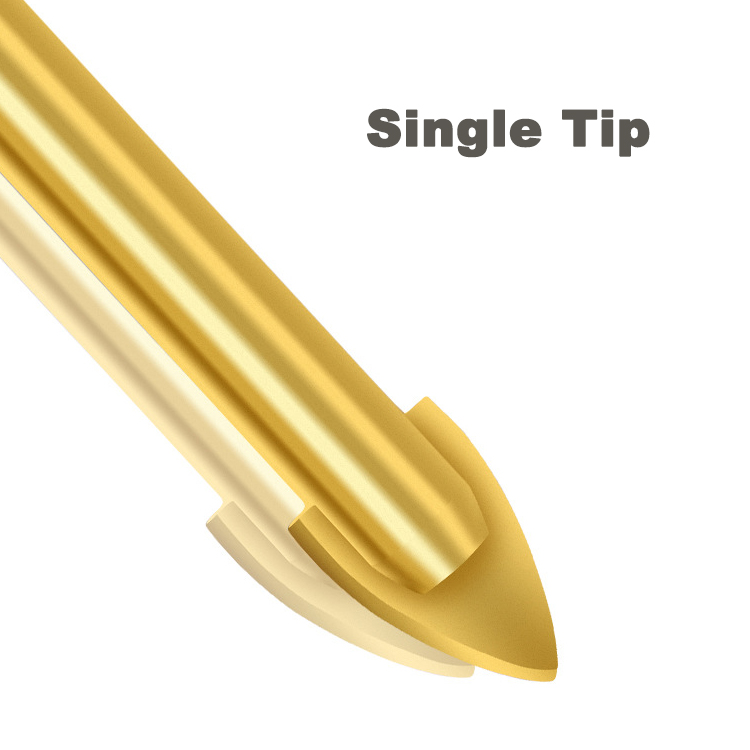

Single Tips |
3mm |
6.35mm |
72mm |
|
4mm |
6.35mm |
73mm |
|
|
5mm |
6.35mm |
75mm |
|
|
6mm |
6.35mm |
76mm |
|
|
8mm |
6.35mm |
78mm |
|
|
10mm |
6.35mm |
82mm |
|
|
12mm |
6.35mm |
86mm |
|
|

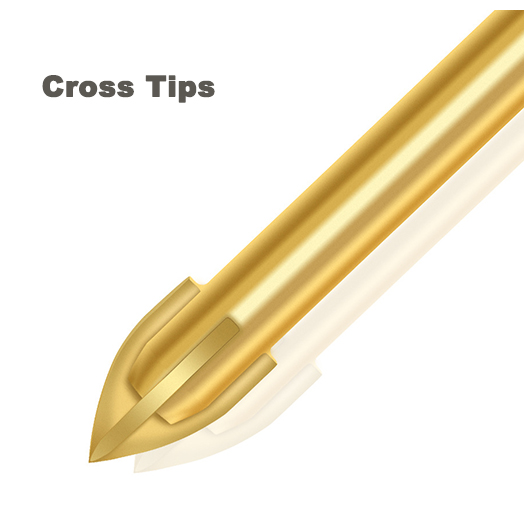

Cross Tips |
4mm |
6.35mm |
75mm |
|
5mm |
6.35mm |
75mm |
|
|
6mm |
6.35mm |
80mm |
|
|
8mm |
6.35mm |
80mm |
|
|
10mm |
6.35mm |
82mm |
|
|
12mm |
6.35mm |
88mm |
|
|

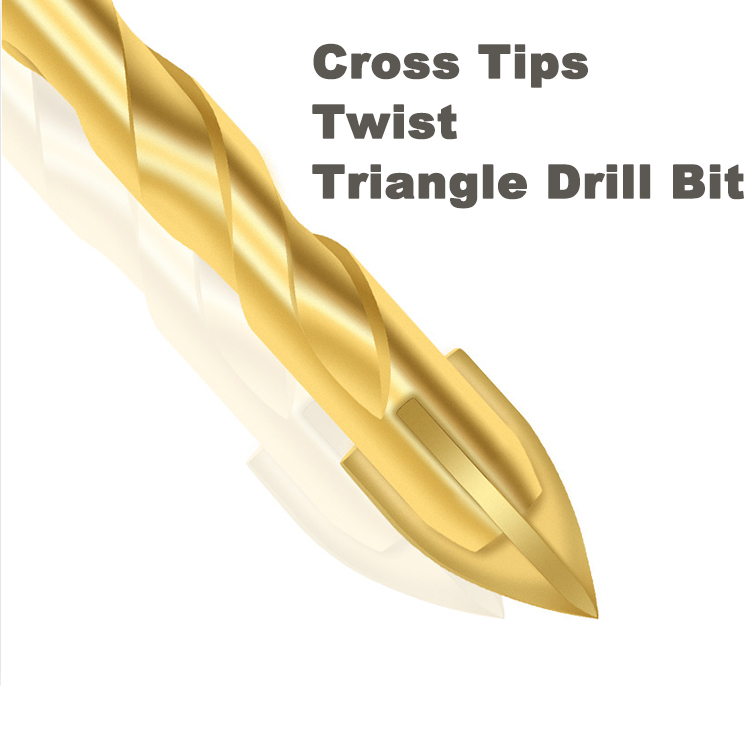

Cross Tips Twist Triangle Drill Bit |
6mm |
6.35mm |
76mm |
|
8mm |
6.35mm |
80mm |
|
|
10mm |
6.35mm |
82mm |
|
|
12mm |
6.35mm |
85mm |
Custom-tailor would be available against customers’ requirements
Application
Scope of application
Application Machines
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
-
