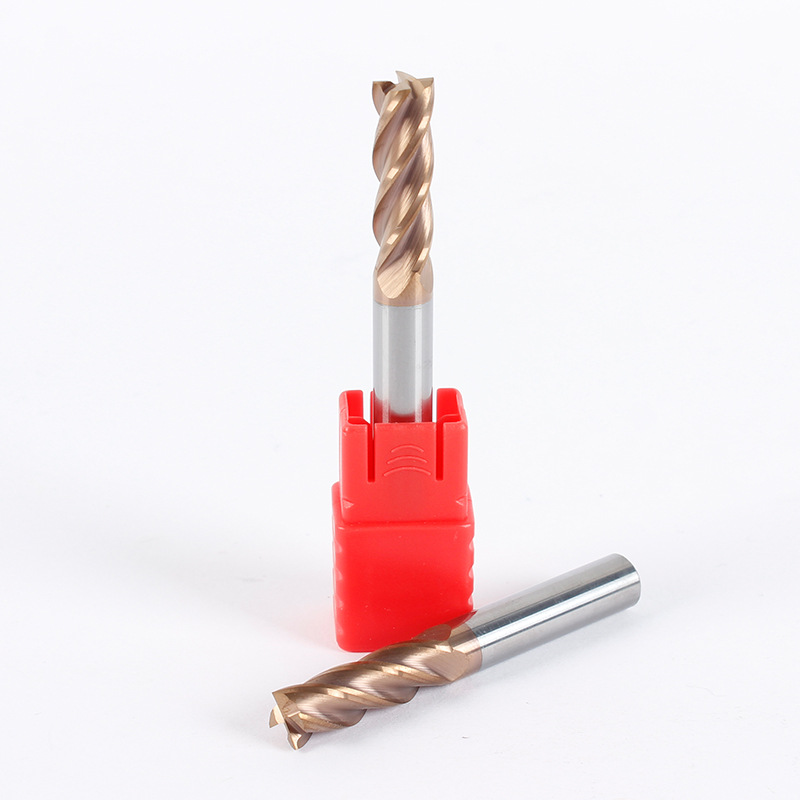

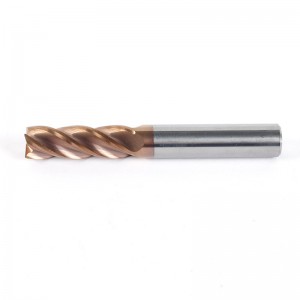

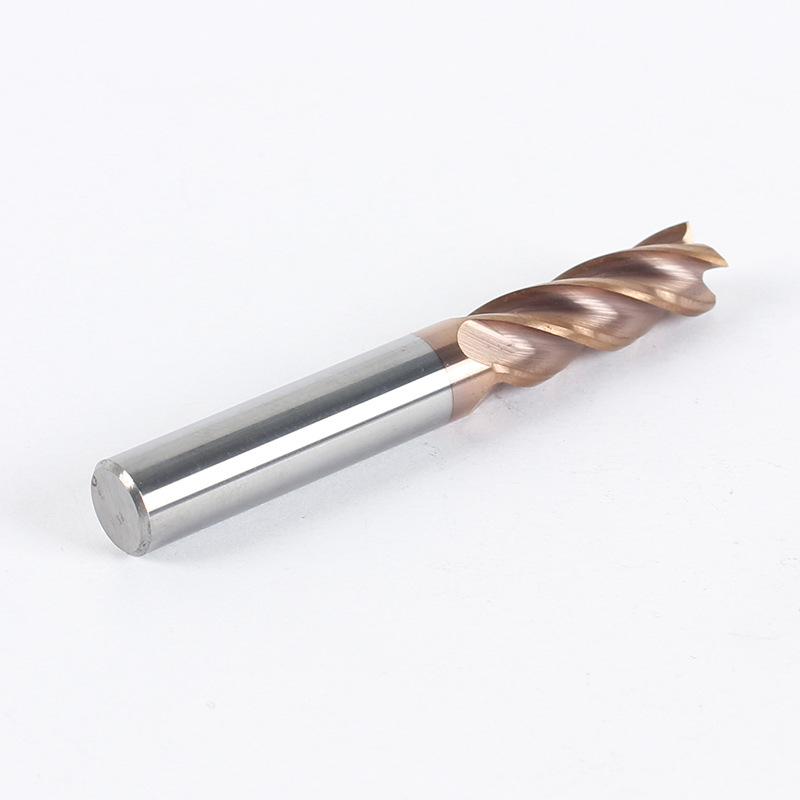

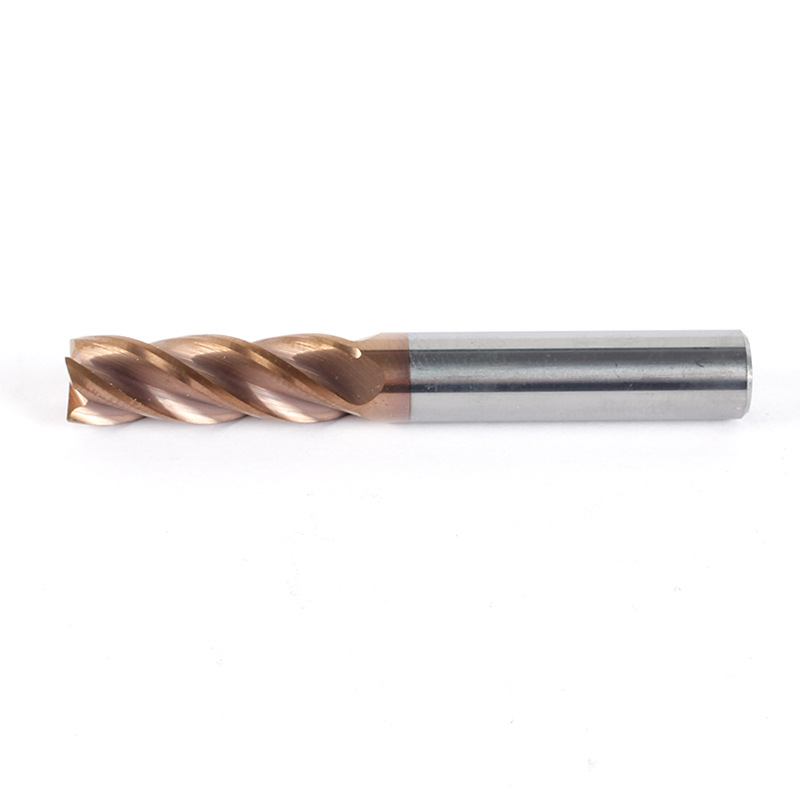

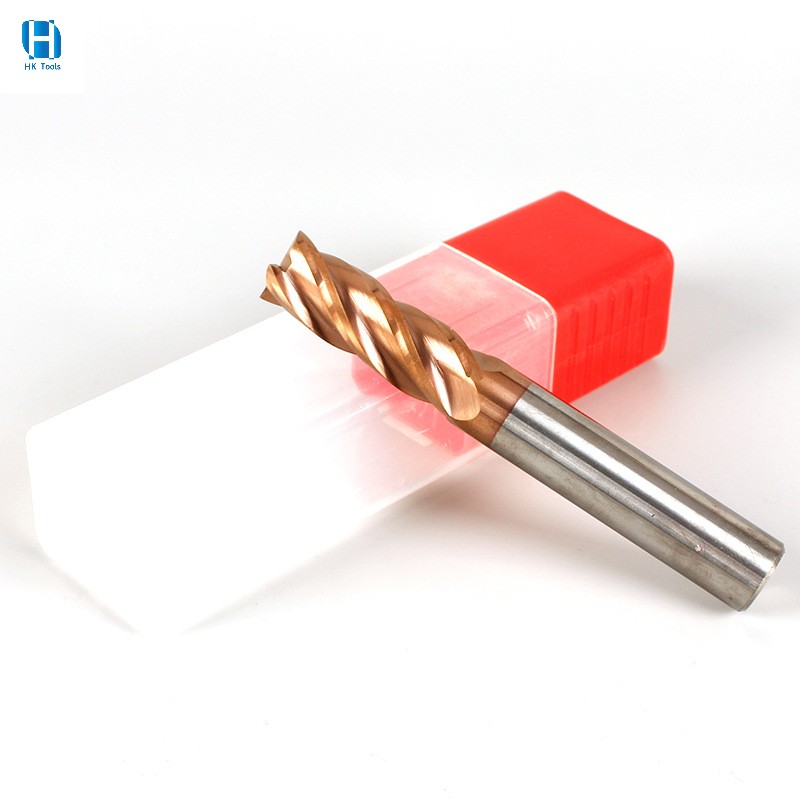

High Quality 60 HRC 4 Flute Flat Square End Mill Stainless Steel Processing
Product Information
|
Product Name |
High quality 60 HRC 4 Flute flat Square End mill Stainless Steel Processing |
 |
|
Material |
Carbide. |
|
|
Process |
Milled |
|
|
Flute Type |
4Flutes | |
|
Size |
Shank diameter: 4-12mm, Overall length: 50-120mm |
|
|
Surface Finish |
Bright Finish (AlTiN, Tin, are Available) |
|
|
End type |
Flat square |
|
|
Payment term |
T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances. |
|
|
Features |
1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer2. Smooth And Wide Flute: Smooth and wide flute will remove the cuttings more easily
3. Heat-resistant Coating: With highly heat-resistant HELICA coating, can be used for high-speed processing 4. Bronze Coating: Under bronze coating, any abrasion is easy to be recognized 5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten 6. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved |
|
|

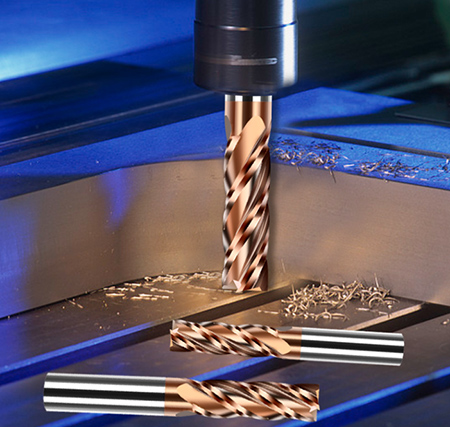

Machining center |
CNC machining/NC machining/CNC engraving and milling machine/High speed machine/Wooding work cutters | |
Product Size
|
Outside Diameter |
Flute Length |
Overall Length |
Shank Diameter |
Outside Diameter |
Flute Length |
Overall Length |
Shank Diameter |
|
d |
l |
L |
D |
D(mm) |
l(mm) |
L(mm) |
D(mm) |
|
1 |
3 |
50 |
4 |
18 |
48 |
100 |
18 |
|
1.5 |
4.5 |
50 |
4 |
20 |
50 |
100 |
20 |
|
2 |
6 |
50 |
4 |
2 |
9 |
60 |
6 |
|
2.5 |
7 |
50 |
4 |
2.5 |
10 |
60 |
6 |
|
3 |
8 |
50 |
4 |
3 |
12 |
60 |
6 |
|
3.5 |
10 |
50 |
4 |
3.5 |
15 |
60 |
6 |
|
4 |
11 |
50 |
4 |
4 |
16 |
60 |
6 |
|
5 |
13 |
50 |
6 |
5 |
25 |
75 |
6 |
|
6 |
16 |
50 |
6 |
6 |
25 |
75 |
6 |
|
7 |
17 |
60 |
8 |
7 |
30 |
75 |
8 |
|
8 |
20 |
60 |
8 |
8 |
30 |
75 |
8 |
|
9 |
25 |
75 |
10 |
8 |
35 |
100 |
8 |
|
10 |
25 |
75 |
10 |
10 |
40 |
100 |
10 |
|
11 |
28 |
75 |
12 |
12 |
45 |
100 |
12 |
|
12 |
30 |
75 |
12 |
14 |
45 |
100 |
14 |
|
14 |
35 |
80 |
14 |
16 |
65 |
150 |
16 |
|
16 |
45 |
100 |
16 |
20 |
75 |
150 |
20 |
Package
Step1: Milling cutter has been finished and sent to warehouse

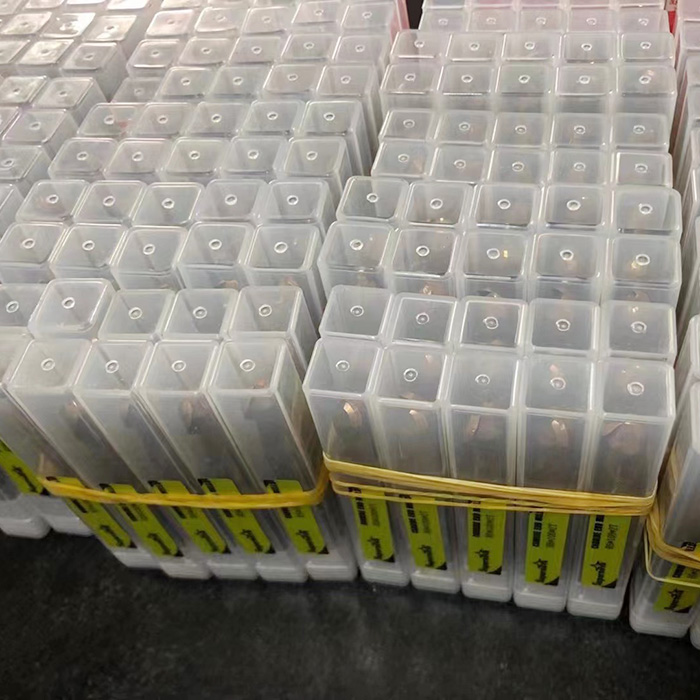

Step2: One end mill is put in a plastic box.
Step3: Use the air bubble paper to encase the plastic paper

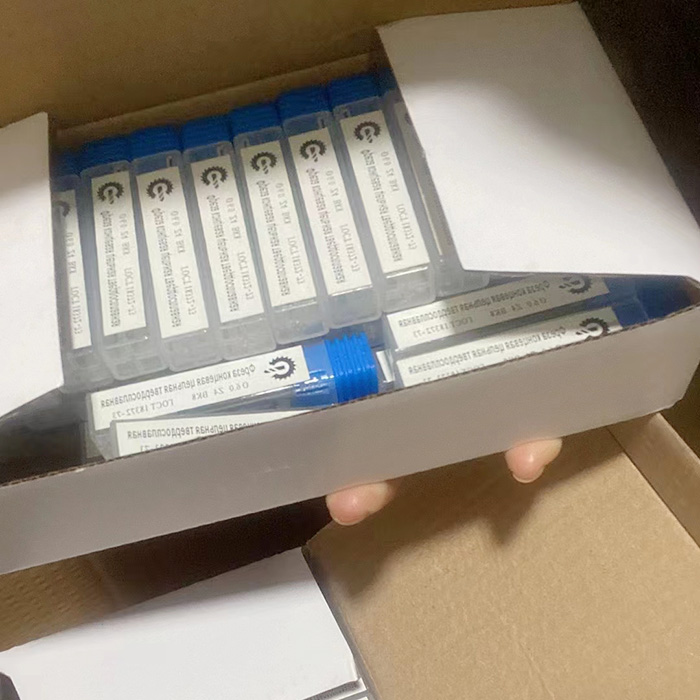

Step4: Put the goods encased with air bubble paper in a small packing cartons
Step5: Put another air bubble paper on the goods and packaged
Step6: Sent by logistics company or express according to customer’s need,Express delivery, air shipping, sea shipping are available for your request.
