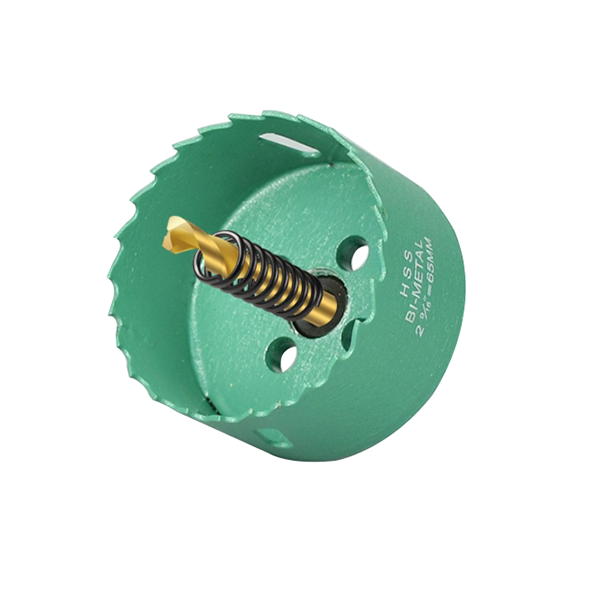

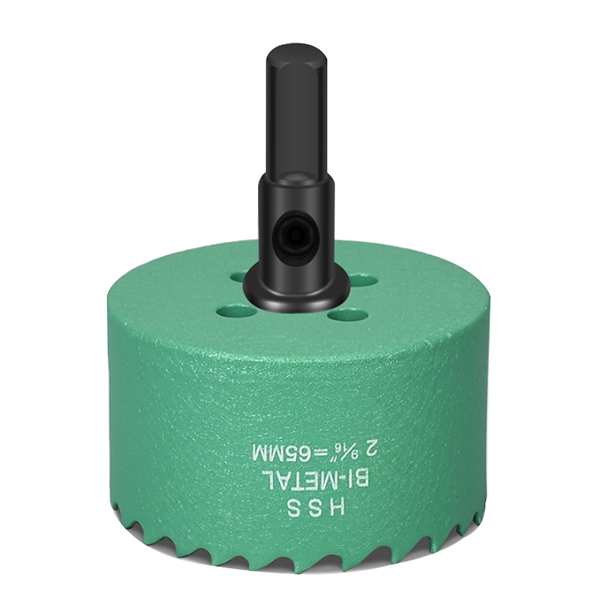

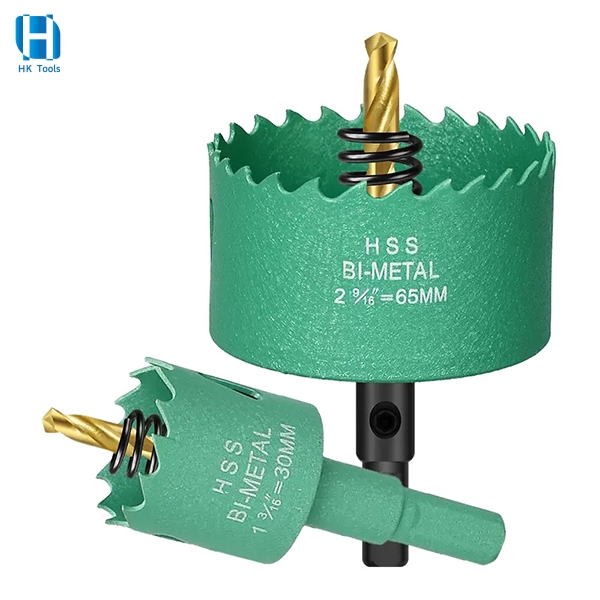

High Quality M42 Bi-Metal Hole Saw With Titanium Coated Centre Drill 16-300mm For Wood

Short Description:

The hole saw set made from high-speed-steel with titanium coated for durability, high hardness, sharp edges, fast cutting, impact resistance, wear high temperature.The accuracy of concentricity makes the tooth edge even and prolongs the life of the hole.

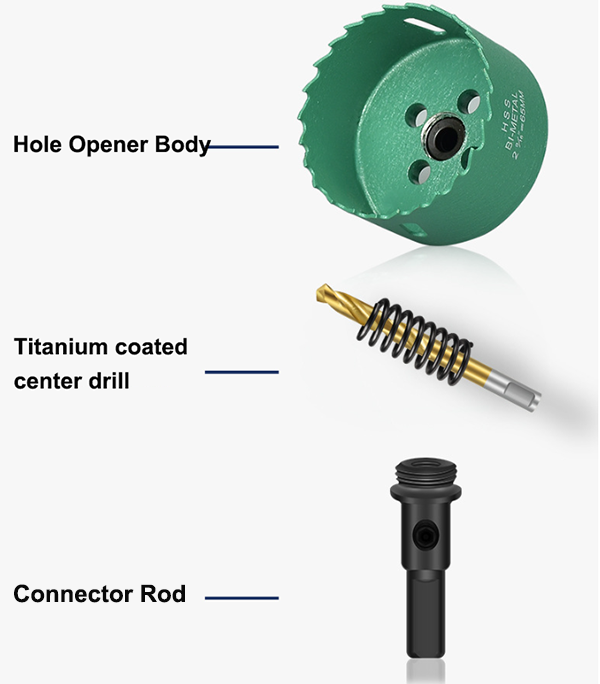

Split tip pilot drill prevents damage and deviation by gradually guiding cutter to material. Over drill flange built in to prevent penetration beyond the sheet metal.

Integrated flange prevents the operator from drilling beyond the sheet metal.

Suitable for hand held electric drill, stand motor-driven drilling machine and other type magnetism drilling machine.

Send email to us

Product Detail

Product Tags

Product Information

Product Name	Bi-Metal Hole Saw
Material	M42 HSS
Shank	Triangular Shank 10mm
Size	16-300mm
Features	High hardness, wear resistance, accurate positioning, good chip removal, high efficiency.
Application	Suitable for processing all kinds of wooden boards, iron sheets, 45 # steel plates, gypsum boards, plastics, PVC, acrylic, top plates and other materials.
Points to note	1.This hole opener is equipped with a positioning center drill, which needs to be installed and tightened manually.
	2.When opening a hole, the center drill is used to cut first, and when it is in place, it will go to the end.Before starting the operation, the center drill plays a role in positioning.
	3.For continuous cutting, please select a lower speed.
	4. In order to prevent chipping, please do not let the edge of the hole opener at the moment of cutting the material a violent impact occurred.
	5. It is necessary to add water or coolant to cool down, otherwise there is a risk of burning the drill bit.
	6. The operator should wear protective glasses to protect the eyes. When face up you need to wear a protective mask when you work.
	7 After long-term operation, the hole opener is in a hot state, and you need to pay attention when replacing it Avoid burning the skin.
	8. After use, apply anti-rust oil for longer service life.

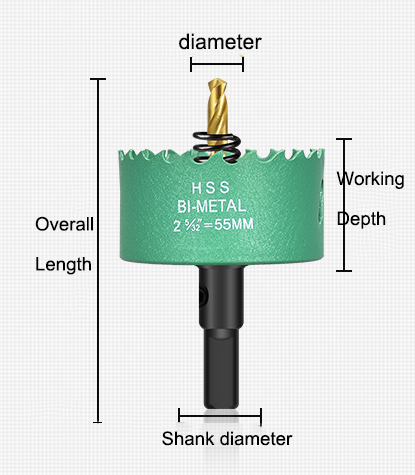

Product Size

Size	Overall Length	Working depth	Centre drill	Shank diameter
Unit:mm
14	85	24	6*58	10
15	85	24	6*58	10
16	85	24	6*58	10
17	85	24	6*58	10
18	85	24	6*58	10
19	85	24	6*58	10
20	85	24	6*58	10
21	85	24	6*58	10
22	85	24	6*58	10
23	85	24	6*58	10
24	85	24	6*58	10
25	85	24	6*58	10
26	85	24	6*58	10
27	85	24	6*58	10
28	85	24	6*58	10
30	85	24	6*58	10
32	85	24	6*58	10
35	85	24	6*58	10
38	85	24	6*58	10
40	85	24	6*58	10
42	85	24	6*58	10
45	85	24	6*58	10
48	85	24	6*58	10
50	85	24	6*58	10
53	85	24	6*58	10
55	85	24	6*58	10
60	95	32	6*68	10
63	95	32	6*68	10
65	95	32	6*68	10
70	95	32	6*68	10
75	95	32	6*68	10
80	95	32	6*68	10
85	95	32	6*68	10
90	95	32	6*68	10
95	95	32	6*68	10
100	95	32	6*68	10
110	95	32	6*68	10
115	95	32	6*68	10
120	95	32	6*68	10
125	95	32	6*68	10
130	95	32	6*68	10
135	95	32	6*68	10
140	95	32	6*68	10
145	95	32	6*68	10
150	95	32	6*68	10
155	95	32	6*68	10
160	95	32	6*68	10
165	95	32	6*68	10
170	95	32	6*68	10
175	95	32	6*68	10
180	95	32	6*68	10
185	95	32	6*68	10
190	95	32	6*68	10
200	95	32	6*68	10
210	95	32	6*68	10
220	95	32	6*68	10

Custom-tailor would be available against customers’ requirements

Application

Scope of application

Application Machines

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
