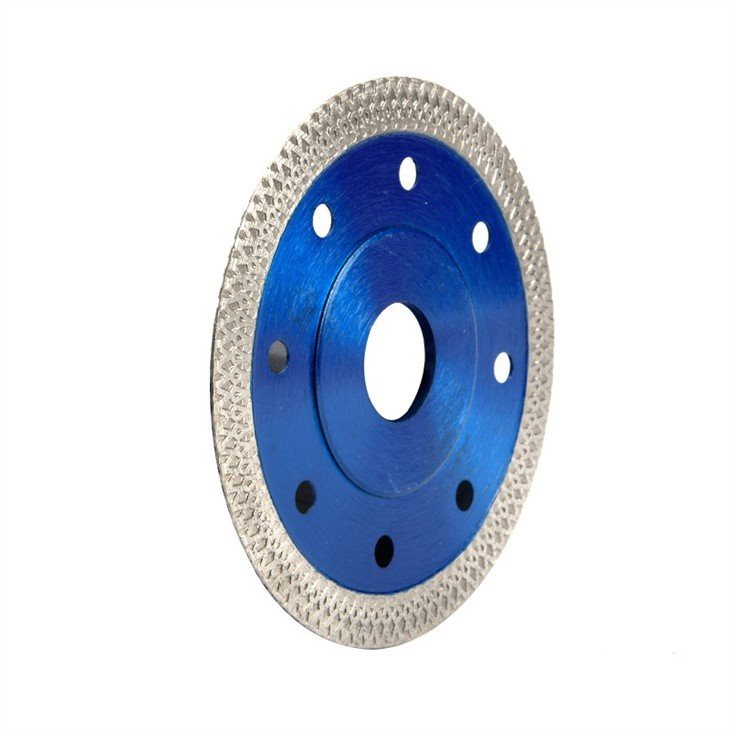

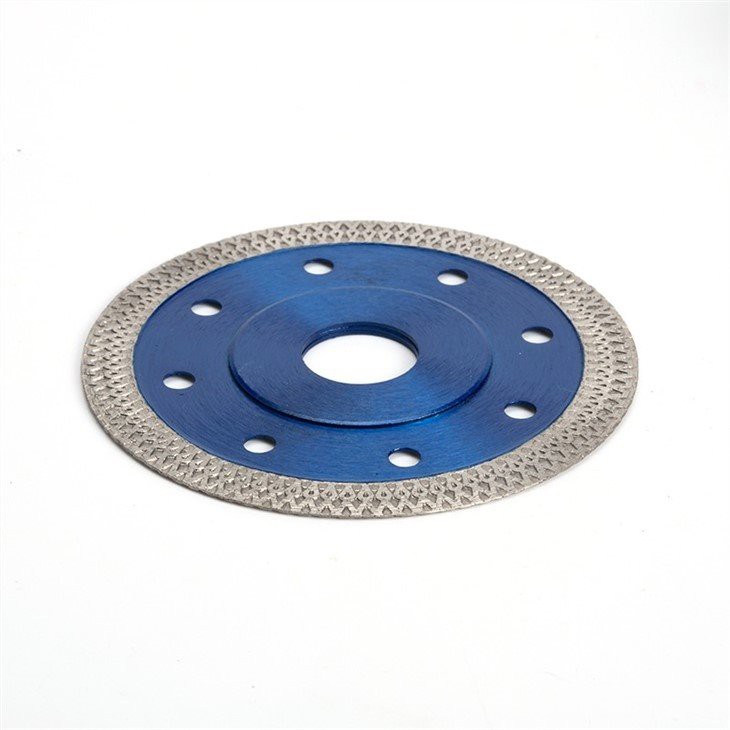

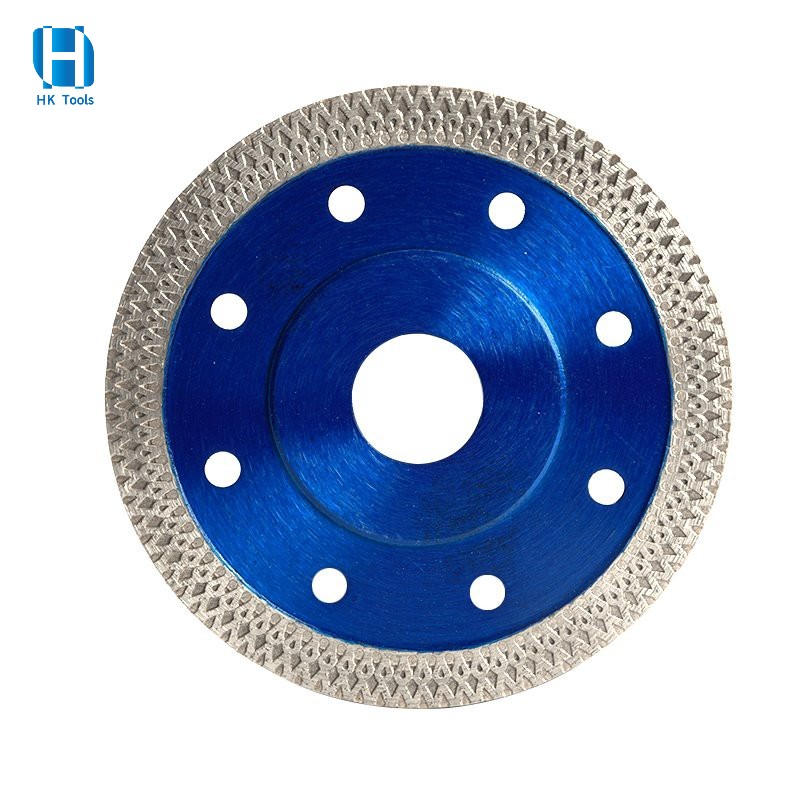

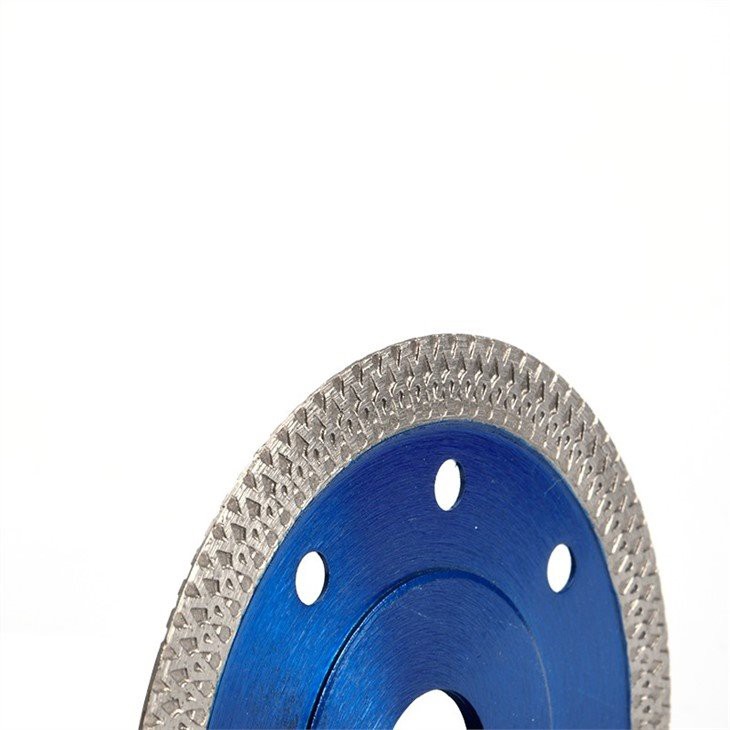

Hot Press 4.5 Inch Net Turbo Blade For Porcelain Tile

Short Description:

1. The blade has good sharpness, high efficiency and long lifespan.

2. Good cutting result:  smooth cutting, flat surface and even size.

3. Stable cutting, narrow cutting gap, stone waste reduction.

4. Easy for diamond opening.


Product Detail

Product Tags

Product Information

Size 115x10x22.23mm
Blade Diameter 115mm
Segment height 10mm
Blade thickness 1.1mm
Body thickness 0.8mm
Core diameter 22.23mm
Process type Hot press sintered
Place of Origin Jiangsu,China
Finishing painting
Body material 65MN
Application Dry/wet cutting for ceramic.
Packaging Details Double blister,Blister card,Skin card,Color box,Plastic box,etc.
Features 1.Fast cutting speed and small cutting gap and high cutting efficiency.
2.This product is widely used for cutting and nondestructive grooving on marble,Granite,ceramic tile,concrete,decorative material, used on manual cutting machine.

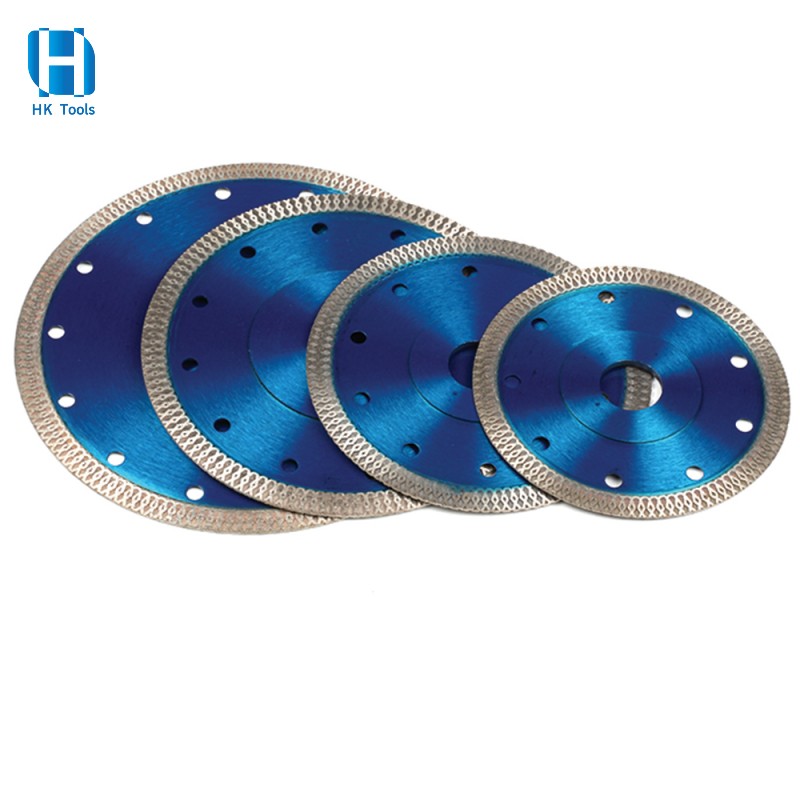

Product Specifications

INCH

METRIC

SEGMENT HEIGHT(MM)

HOLE DIAMETER(MM)

4”

105MM

7/8/10/12

25.4/22.23/20/16

4.3”

110MM

7/8/10/12

25.4/22.23/20/16

4.5”

115MM

7/8/10/12

25.4/22.23/20/16

5”

125MM

7/8/10/12/14

25.4/22.23/20/16

6”

150MM

7/8/10/12/14

25.4/22.23/20/16

7”

180MM

7/8/10/12/14

25.4/22.23/20/16

9”

230MM

7/8/10/12/14

25.4/22.23/20/16

10”

250MM

7/8/10/12/14

25.4/22.23/20/16

12”

300MM

7/8/10/12/14

25.4/22.23/20

13.7”

350MM

7/8/10/12/14

25.4/22.23/20

Application Machine

Marble/bench machine, angle grinder,etc.

Application machine

Cutting Materials

Building materials, ceramic, marble, tile, etc.

Cutting materials

Packing: as your needs
