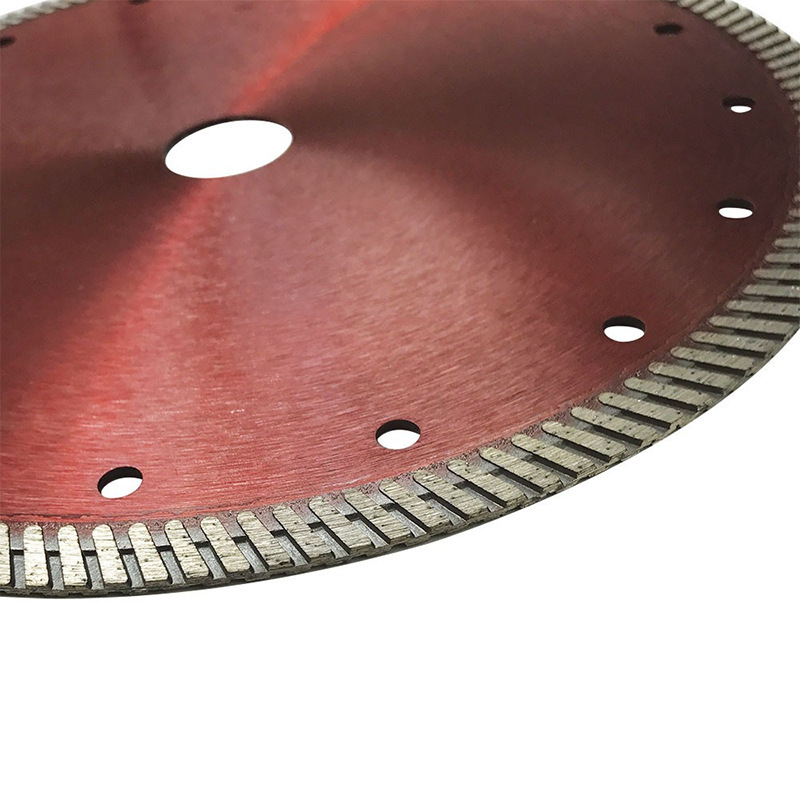

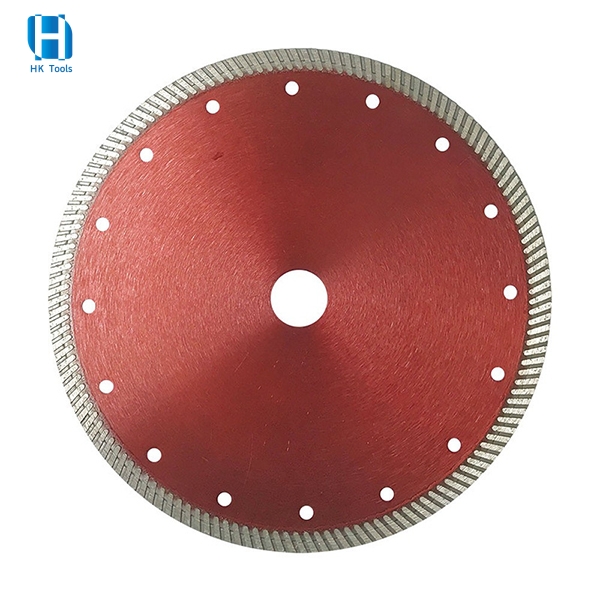

Hot Pressed Sintered Fine Turbo Rim Diamond Saw Blade 105-350mm For Tiles
Product Information
|
Product Name |
Diamond Saw Blade |
|
Type |
Turbo Wave |
|
Material |
Diamond/65Mn Steel |
|
Process |
Hot Pressed |
|
Diameter |
105-350mm |
|
Bore |
20/22.23/25.4mm |
|
Application |
Designed for precise and fast cutting of granite,marble,concrete,bricks and so on.Specially for cutting marble slab or ceramic tiles,the variety of segments can be designed according to different job requirements or different cutting material's hardness .Consideration of environmental requirements and operator safety.the body of blade have steel components to reduce cutting noise. |
|
Package |
White/Colour Box, Double/Single Blister, PVC Bag |
|
Feature |
1. Turbo rim design for fast cutting and quick chip ejection. 2. Super fast fine tooth turbo segment for the fastest cleanest cut. 3. Allows for a straight constant depth of cut while eliminating multiple blades changing, Diamond blades cut faster and easier with fewer power requirements. 4. Use on Angle Grinder, Wet Stone Saw or Circular Saw. 5. Designed to be used on porcelain, ceramic and stone tiles. 6. Used for Cutting Wet or Dry. |
Product Size
|
Specifications of Hot Pressed Sintered Fine Turbo Rim Saw Blade |
|||||
|
Diameter(mm) |
Segment Dimension(mm) |
Segments Number |
Bore(mm) |
Note |
|
|
Height |
Thickness |
||||
|
105 |
7/8/9/10 |
1.6/1.8/2.0/2.2/2.4 |
/ |
20/22.23 |
Product Customization and Brand OEM Are Available |
|
110 |
7/10 |
2.0/2.2 |
/ |
20/22.23 |
|
|
115 |
7/10/12 |
2.0/2.2/2.4/2.6 |
/ |
20/22.23 |
|
|
125 |
7/8/9/10/12 |
2.0/2.4/2.6 |
/ |
20/22.23 |
|
|
150 |
7/9/10/12 |
2.0/2.2/2.4/2.6/2.8 |
/ |
22.23/25.4 |
|
|
180 |
7/9/10/12 |
2.2/2.4/2.5/2.6/2.8 |
/ |
22.23/25.4 |
|
|
230 |
7/8/9/10/12 |
2.4/2.5/2.6/2.8 |
/ |
22.23/25.4 |
|
|
250 |
7/9/10/12 |
2.4/2.6/2.8/3.0 |
/ |
22.23/25.4 |
|
|
300 |
8/9/10/12 |
2.8/3.0/3.2 |
/ |
20/22.23/25.4 |
|
|
350 |
8/10/12 |
3.2 |
/ |
20/22.23/25.4 |
|
Custom-tailor would be available against customers’ requirements
Application
Efficient in cutting Granite marble concrete masonry block
Large enough warehouse and production workshop
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
-
