Hot Sale HSS Bi-Metal Hole Saw Kit in Aluminium Case for Cutting Metal Wood Plastic

Short Description:

The HSS teeth of our Bimetal hole saws are recommended for cutting steel, cast iron pipe, steel plates, aluminium, copper, brass, stainless steel, wood and plastic.

14mm to 30mm diameter hole saw with 1/2-20UNF threaded connecting; 32mm to 210mm diameter hole saw with 5/8-18UNF threaded connecting.


Product Detail

Product Tags

Product Information

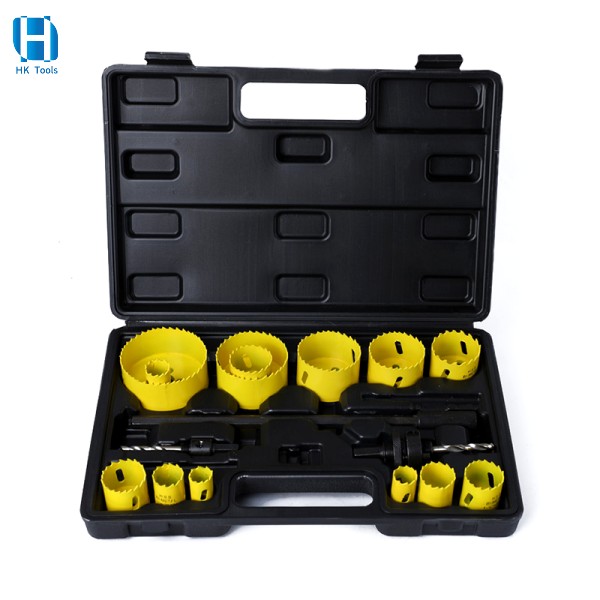

Product Name 16Pcs HSS Bi-Metal Hole Saw Kit in Aluminium Case for Cutting Metal Wood Plastic

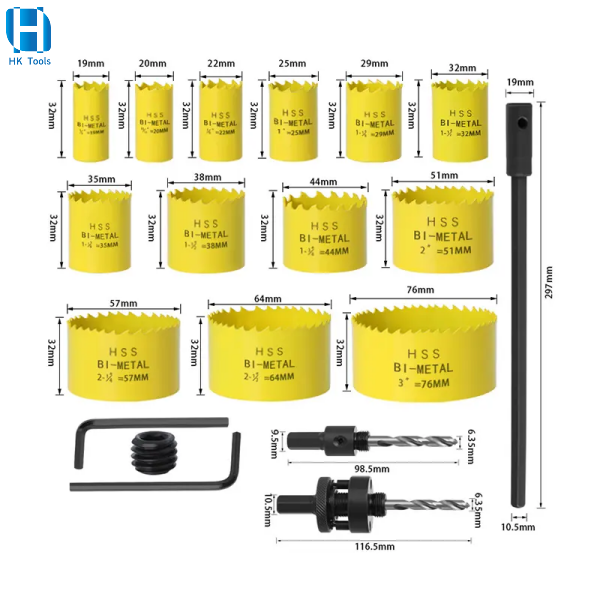

Sizes 13Pcs Hole Saws: 19mm,20mm,22mm,25mm,29mm,32mm,35mm,38mm,44mm,51mm,57mm,67mm,76mm

(3/4", 25/32", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-3/4",  2", 2-1/4", 2-5/8", 3")

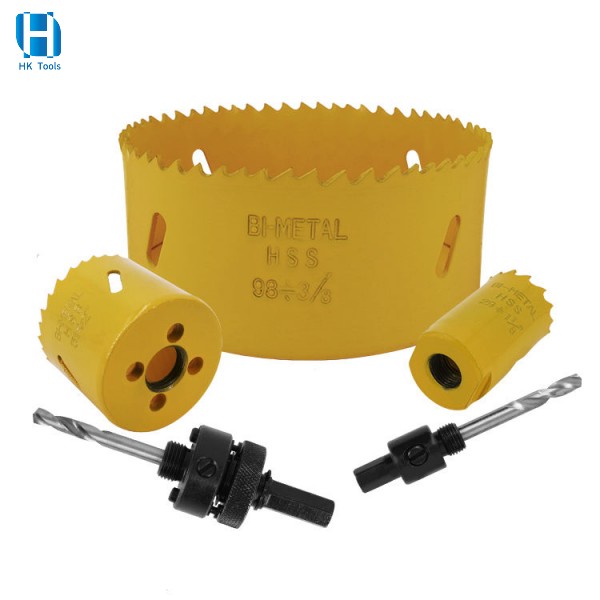

1Pc Small Arbor: 3/8" Hex Shank and 1/2"-20UNF Thread for Dia. 14mm to 30mm Hole Saw
1Pc Large Arbor: 7/16" Hex Shank and 5/8"-18UNF Thread for Dia. 32mm to 210mm Hole Saw
1Pc Extension Bar: 300mm(12") for 7/16" Hex Shank

Teeth Type 4/6 TPI Variable Teeth
Teeth Material M3 High Speed Steel    (M42 HSS Co8% is available)
Thread Type Dia.14mm to 30mm with 1/2-20UNF; Dia.32mm to 210mm with 5/8-18UNF
Cutting Depth 38mm   (44mm Deep Cutting Depth is available)
Surface Finish Color Painting
Package 16 Pieces in One Aluminum Box
Features 1. High speed Steel teeth electron welded to a high Carbon steel body ensuring maxium durability and a long working life.

2. 4/6 variable pitch tooth design with improved chip clearance and lower feed pressure required with varying gullet depth.

3. Less heat build up ensures the teeth stay sharp longer.

4. Faster and more aggressive cutting performance. Using a cooling lubricant will extend the life of your hole saw by 500%

5. Bimetal Hole Saws with HSS teeth are rugged cutting tools designed to cut accurate holes in machinable materials up to 38mm thick.

6. Ranging in size from 14mm to 210mm in diameter, that can be used in portable electric tools, air tools, drill press, lathes, boring mills, milling machines and some other machines, which have rotating spindles.

7. The HSS teeth of our Bimetal hole saws are recommended for cutting steel, cast iron pipe, steel plates, aluminium, copper, brass, stainless steel, wood and plastic.

8. 14mm to 30mm diameter hole saw with 1/2-20UNF threaded connecting; 32mm to 210mm diameter hole saw with 5/8-18UNF threaded connecting.

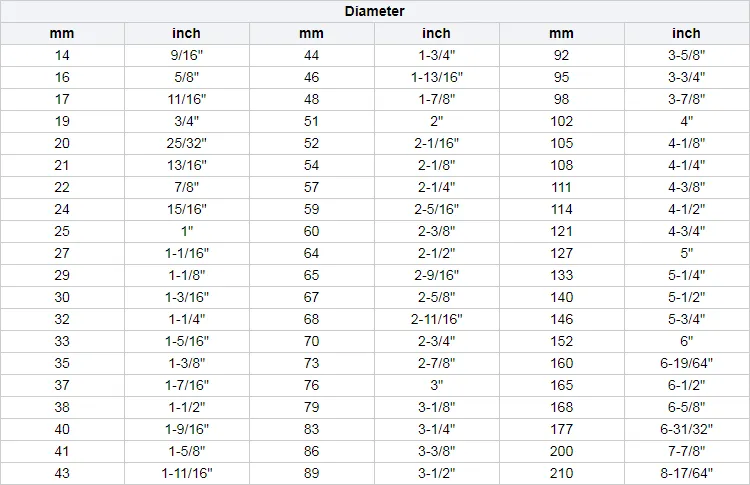

Product Size

Custom-tailor would be available against customers’ requirements

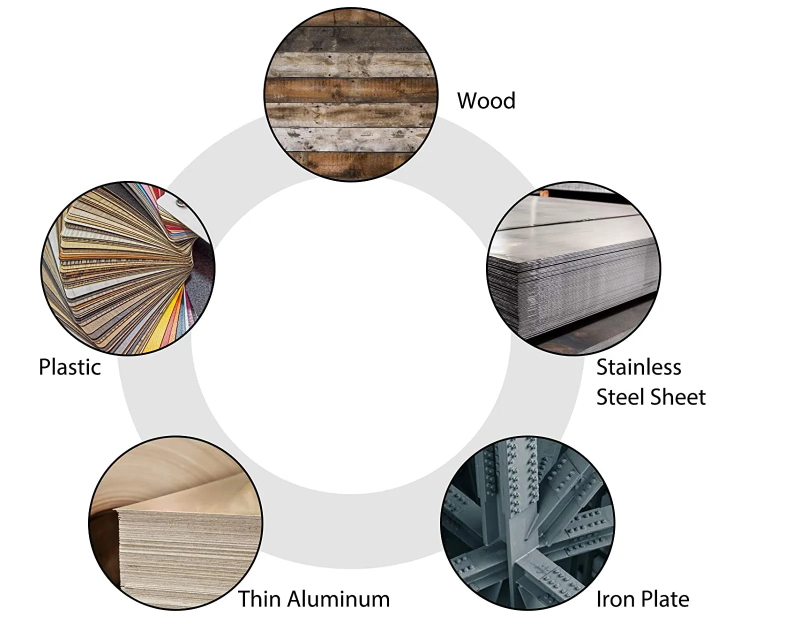

Application

hole saw drilling  steel

widely application   drilling wood,plastic,thin aluminum

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
