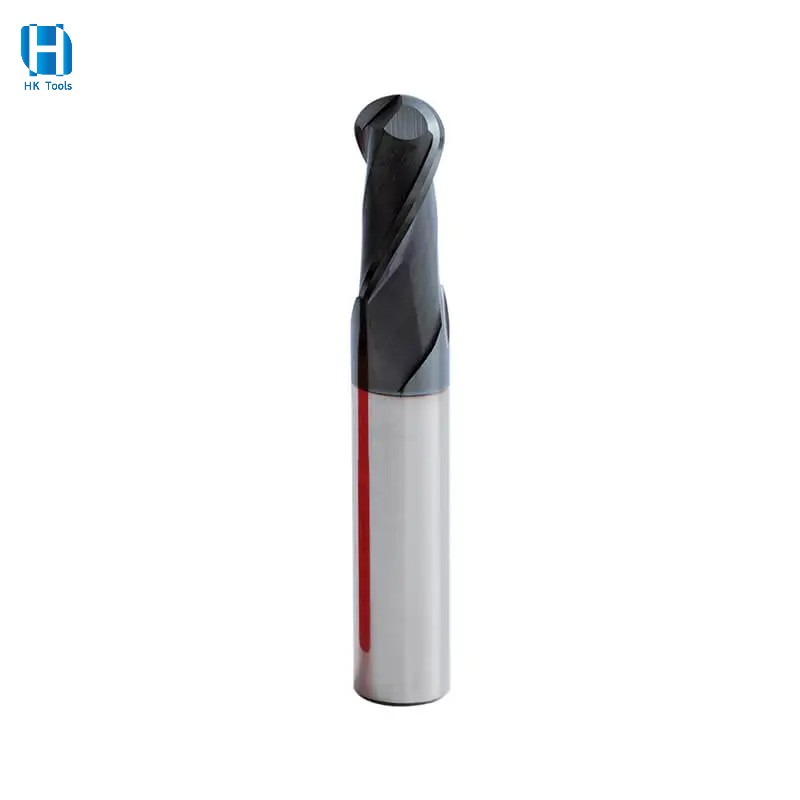

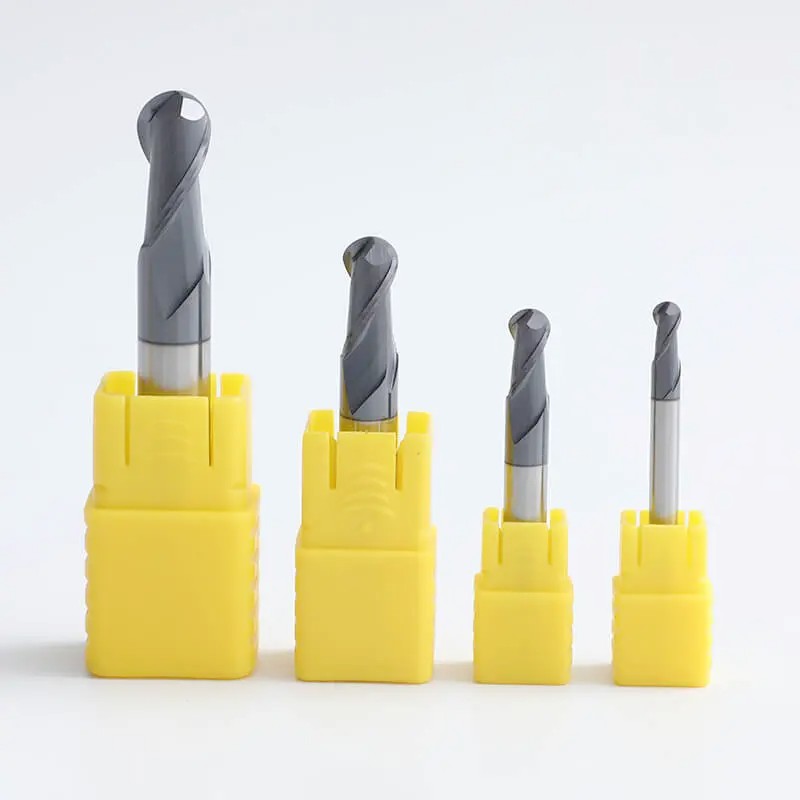

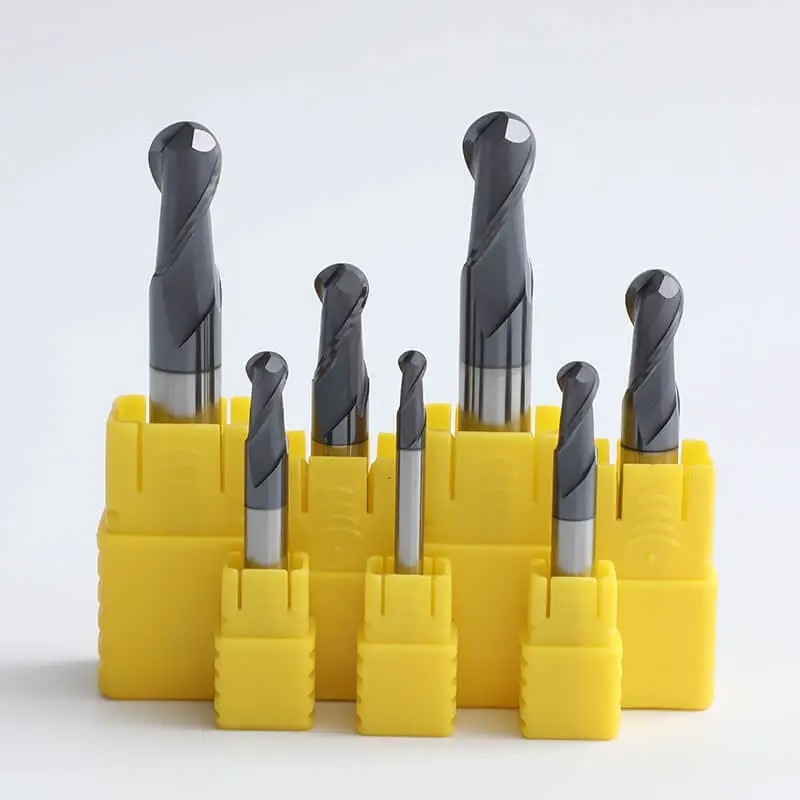

HRC45 2 Flute Standard Length Carbide Ball Nose End Mills Cutter for semi-finish and finish milling
Product Information
|
Product Name |
HRC45 2 Flute Standard Length Carbide Ball Nose End Mills Cutter for semi-finish and finish milling |
 |
|
Material |
Raw Material: Use YG10X with 10% Co content and 0.8um grain size. |
|
|
Process |
Milled |
|
|
Flute Type |
2Flutes | |
|
Size |
Shank diameter: 4-20 mm, Overall length: 50-100mm |
|
|
Surface Finish |
Bright Finish (AlTiN, Tin, are Available) |
|
|
End type: |
Center cutting |
|
|
Package |
One Piece in One Plastic Calm Shell |
|
|
Features |
Coating: AlTiN: high aluminium content provides excellent red-hardness and oxidation resistance temperatureDouble-belt design, effectively improve the rigidity of the cutting edge and the surface finish of the work-piece;
Cutting edge over the centre, effectively reduce cutting resistance; large-capacity chip removal groove, convenient and smooth chip removal, improve machining efficiency; Two-blade design. Widely used in grooving, hole making |
|
|
Machining center |
CNC machining/NC machining/CNC engraving and milling machine/High speed machine/Wooding work cutters | |
|
Application |
Suitable for carbon structural steel, mold steel, alloy steel and below HRC45 steel | |
Product Size
|
Flute Dia |
Flute Length L1(mm) |
Shank Dia D(mm) |
Overall length |
Flutes No. |
|
R0.5 |
2 |
4 |
50 |
2 |
|
R0.75 |
3 |
4 |
50 |
2 |
|
R1.0 |
4 |
4 |
50 |
2 |
|
R1.25 |
5 |
4 |
50 |
2 |
|
R1.5 |
6 |
4 |
50 |
2 |
|
R1.75 |
7 |
4 |
50 |
2 |
|
R2.0 |
8 |
4 |
50 |
2 |
|
R0.5 |
2 |
6 |
50 |
2 |
|
R0.75 |
3 |
6 |
50 |
2 |
|
R1.0 |
4 |
6 |
50 |
2 |
|
R1.5 |
5 |
6 |
50 |
2 |
|
R2.0 |
6 |
6 |
50 |
2 |
|
R2.5 |
8 |
6 |
50 |
2 |
|
R3.0 |
10 |
6 |
50 |
2 |
|
R4.0 |
16 |
8 |
60 |
2 |
|
R5.0 |
20 |
10 |
75 |
2 |
|
R6.0 |
24 |
12 |
75 |
2 |
|
R8.0 |
30 |
16 |
100 |
2 |
|
R10.0 |
30 |
20 |
100 |
2 |
