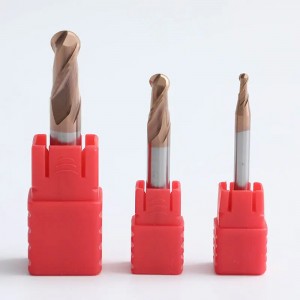

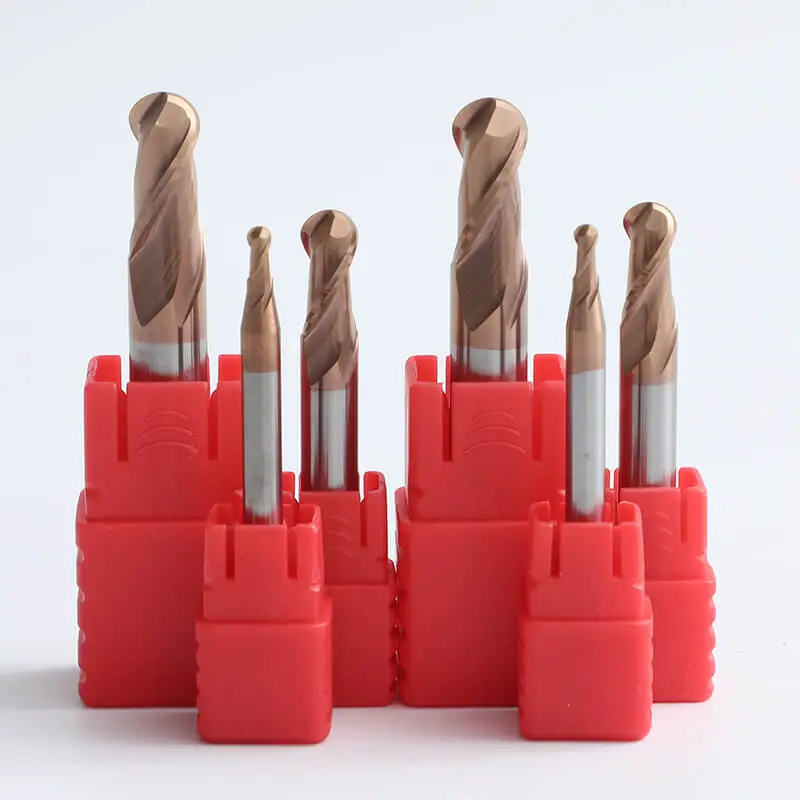

HRC55 Carbide 2 Flute Long Length Ball Nose End Mills
Product Information
|
Product Name |
HRC55 2 Flute Standard Length Carbide Ball Nose End Mills Cutter for semi-finish and finish milling |
 |
|
Material |
Carbide |
|
|
Process |
Milled |
|
|
Flute Type |
2Flutes | |
|
Size |
Shank diameter: 4-20 mm, Overall length: 50-100mm |
|
|
Surface Finish |
Bright Finish (AlTiN, Tin, are Available) |
|
|
End type: |
Center cutting |
|
|
Package |
One Piece in One Plastic Calm Shell |
|
|
Features |
1.Coating: TiSiN, containing silicon, has a high surface hardness and high thermal resistance.
2.Double-edged belt design, effectively improve the rigidity of the belt and the surface finish of the work-piece; 3.Cutting edge over the centre, effectively reduce cutting resistance; 4.Large-capacity chip removal groove, convenient and smooth chip removal, improve machining efficiency; 5.Two-edged design, widely used in the groove, hole processing. 6.Suitable for carbon steel, alloy steel, cast iron and hardened steel etc. |
|
|
Machining center |
CNC machining/NC machining/CNC engraving and milling machine/High speed machine/Wooding work cutters | |
|
Application |
Suitable for high hardness mold steel, alloy steel and below HRC55 steel | |
Product Size
|
Flute Dia |
Flute Length L1(mm) |
Shank Dia D(mm) |
Overall length |
Flutes No. |
|
R0.5 |
2 |
4 |
50 |
2 |
|
R0.75 |
3 |
4 |
50 |
2 |
|
R1.0 |
4 |
4 |
50 |
2 |
|
R1.25 |
5 |
4 |
50 |
2 |
|
R1.5 |
6 |
4 |
50 |
2 |
|
R1.75 |
7 |
4 |
50 |
2 |
|
R2.0 |
8 |
4 |
50 |
2 |
|
R0.5 |
2 |
6 |
50 |
2 |
|
R0.75 |
3 |
6 |
50 |
2 |
|
R1.0 |
4 |
6 |
50 |
2 |
|
R1.5 |
5 |
6 |
50 |
2 |
|
R2.0 |
6 |
6 |
50 |
2 |
|
R2.5 |
8 |
6 |
50 |
2 |
|
R3.0 |
10 |
6 |
50 |
2 |
|
R4.0 |
16 |
8 |
60 |
2 |
|
R5.0 |
20 |
10 |
75 |
2 |
|
R6.0 |
24 |
12 |
75 |
2 |
|
R8.0 |
30 |
16 |
100 |
2 |
|
R10.0 |
30 |
20 |
100 |
2 |
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
-
