HRC55 Carbide 3 Flute Long Length End Mills for Aluminum

Short Description:

Raw Material: Use ZK30UF with 10% Co content and 0.6um grain size.

Flutes: 3 flutes, effectively mitigate vibra- tion and stable cutting

A Type: Double-edge design provides good smooth finish and is suitable for semi-finish and finish machining.

B Type: Single-edge design, sharp blade, good for chip removal, high cutting speed, widly used in rough machining.


Product Detail

Product Tags

Product Information

Product Name

HRC55 3 Flute Long Length

Carbide square End Mills Cutter safety

Material

carbide.

Process

Milled

Flute Type

3Flutes

Size

Shank diameter: 3-20mm, Overall length: 75-120mm

Type:

Double-edge

Single-edge

Package

One Piece in One Plastic Calm Shell

Features

1.Coating: TiSiN, containing silicon, with high surface hardness and high thermal resistance
2.Spiral angle 35 degrees, adaptable to the material and hardness of the material to be processed;
3.Widely used in mould and product processing, with high-cost performance ratio;
4.Chamfered edge, not easy to break, widely used in high-speed processing.
5.Suitable for carbon steel, alloy steel, cast iron and hardened steel etc.

Machining center

CNC machining/NC machining/CNC engraving  and milling machine/High speed machine/Wooding work cutters

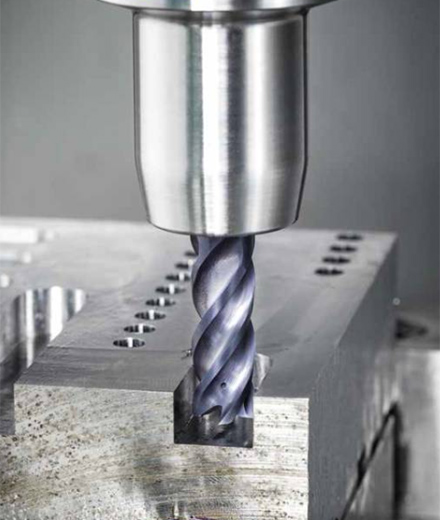

Application

Suitable for carbon structural steel, mold steel, alloy steel and below HRC55 steel

Product Size

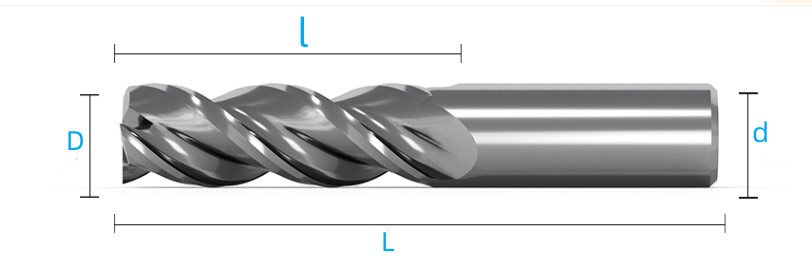

HRC55 carbide 3 flute end mill size

Diameter

Cutting Length

Shank Diameter

Overall Length

Flutes

D(mm)

L(mm)

D(mm)

L(mm)

No.

3

15

3

75

3

3

15

3

100

3

4

20

4

75

3

4

25

5

100

3

5

20

5

75

3

5

25

5

100

3

6

30

6

75

3

6

30

6

100

3

6

40

6

150

3

8

35

8

75

3

8

40

8

100

3

8

50

8

150

3

10

40

10

100

3

10

50

10

150

3

12

45

12

100

3

12

60

12

150

3

14

60

14

150

3

16

60

16

150

3

18

60

18

150

3

20

70

20

150

3

Suitable Workpiece Material

Carbon Steel

Alloy Steel

Cast Iron

Aluminum Alloy

Copper Alloy

Stainless Steel

Hardened Steel







Yes

Yes



≤HPR55

Our Advantages

We warmly welcome domestic and overseas customers to visit our company and have business talk. Our company always insists on the principle of “good quality, reasonable price, the first-class service”. We are willing to build long-term, friendly and mutually beneficial cooperation with you.

Our mission is “Provide Products with Reliable Quality and Reasonable Prices”. We welcome customers from every corner of the world to contact us for future business relationships and achieving mutual success!
We’ve been persisting in the business essence “Quality First, Honoring Contracts and Standing by Reputations, providing customers with satisfying products and service. ” Friends both at home and abroad are warmly welcome to establish everlasting business relations with us.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
