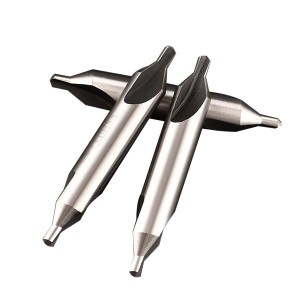

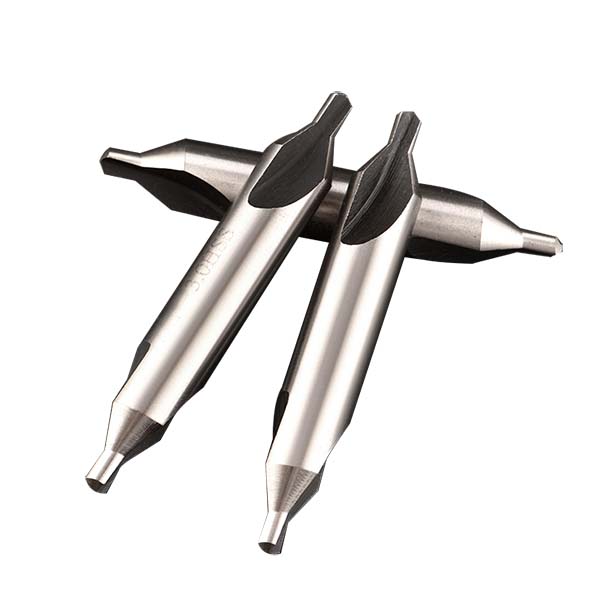

HSS 60 Degree Centre Drill Bit 1.0-10mm DIN333 Form A For Metal Drilling

Short Description:

DIN 333-A – Drills for center with an angle of 60°

DIN 333-R – Drills for center with a radius centered on 60°

DIN 333-B – Drills for center with angles of 60° and 120° (with protection chamfer)


Product Detail

Product Tags

Product Information

Procuct Name HSS DIN333 Form A Center Drill Bit
Material HSS4241,4341,6542 (Co5%-M35,Carbide are Available)
Process Fully Ground
Flute Straight Flutes(2 Flute is Available)
Surface Bright Finishing(Amber,Tin-coated ,AlTiN coated are Available)
Size 1.0MM-10MM
Standard DIN333A(DIN333B,DIN333R,Extra Long,GOST 14952-75 are Available)
Features 1.Center drill bits can be used to make conical holes for a lathe center in order to make a starting point for a standard twist drill, designed to prevent the twist drill from walking, as well as for producing center holds in components or work pieces with require machining between centers.
2.Available for all Kinds of Materials: Metal, Alloy, Copper, Iron, Wood, Aluminum, and so on.
3.Durable and Resistance: Center drill bit is made of HSS high speed steel, with extremely sharp blade, low consumption and durable with impact resistance, wear resistance.
4.center drills have flutes and cutting points on both ends. this allows the user with the ability to reverse the drill and utilize both ends.
5.Easy cutting with high speed and excellent offtake of chips.suitable for products with straight flute,oblique flute and spiral fiute,etc.
6.60 degree countersink angle fits all standard centers
7.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance

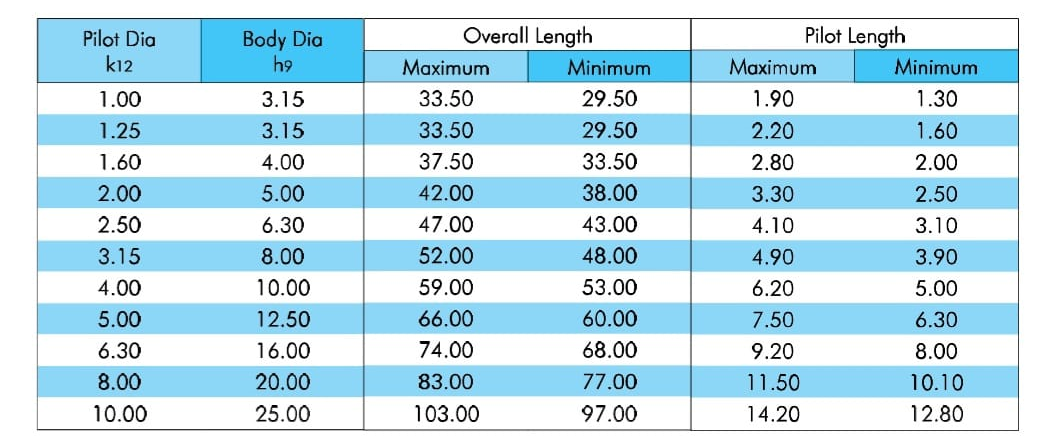

Product Size

size
DIN333 FormA

Custom-tailor would be available against customers’ requirements

Application

                                 Scope of application

                                Applicable Machines

material
machine

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

packing-1
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
