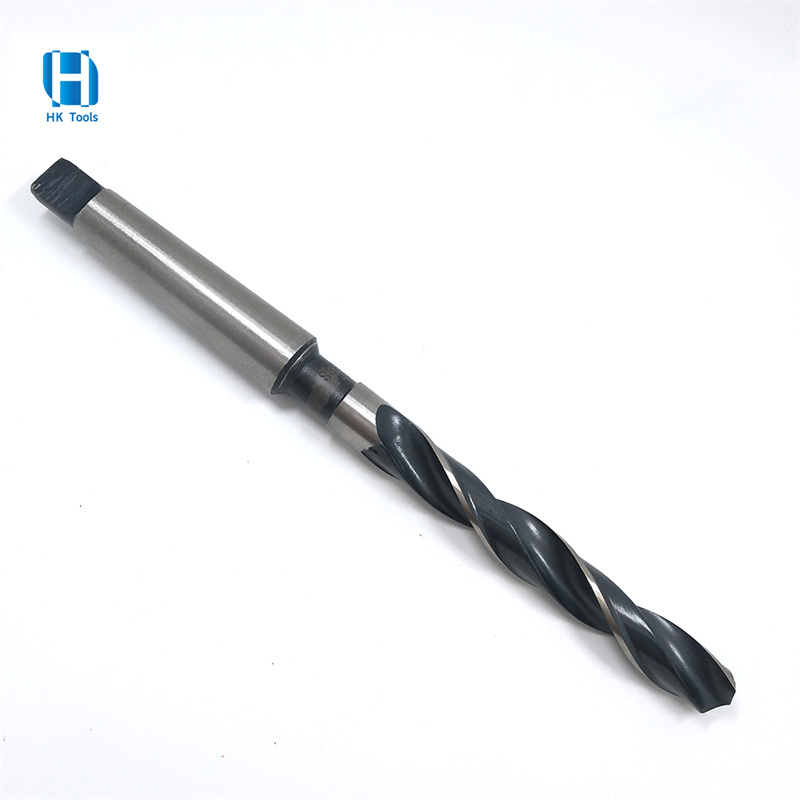

HSS DIN341/ANSI B94.11-1977 Taper Shank Twist drill bit for metal deep drilling

Short Description:

Din341 Morse Tapers come in eight sizes identified by number between 0 and 7. Din341 Morse Taper drill bits are used in a variety of applications including metalworking.
Din341 Morse Tapers are also used in some metal and steel, stainless steel lathes.


Product Detail

Product Tags

Product Information

Material

HSS,HSS Co,Tungsten Carbide,M42,M35,6542(M2),9341,4341,4241

Standard

DIN 338 (jobber series)/DIN 341 (long series)/DIN 1897 (stub series)

Shank

Straight shank drills,taper shank drills,1/2 shank drills



Degree



1)118 degree point angle design for general purpose,

2)135 double angle facilitates rapid cutting and reduce the working time

Size

7.5-100mm

Process

Roll forged,edge ground,fully  ground,milled

Surface finish

Black finish,TIN Coated,bright finished,black oxide,rainbow,nitriding etc.

Hardness

58-66HRC

Specification

Normal standard:0.5-23mm,or as your requirement.

Color

White,yellow,black, etc.

Usage

Metal Drilling,Stainless steel,aluminum etc.

Customize

Accept

Function

Suitable for drilling metal, iron,stainless steel ,steel and wood

Features

Quality HSS ensures sharp, fast in any material, offers good hardness, toughness, wear resistance

Premium Heat treated HRC63-66 is durable and can withstand heavy duty operation for a long tool life

Black Oxide Surface holds up lubricant better and lead coolant near the cutting edge for smoother drilling

MT shank allows drills installed directly into the machine’s spindle for high-torque applications

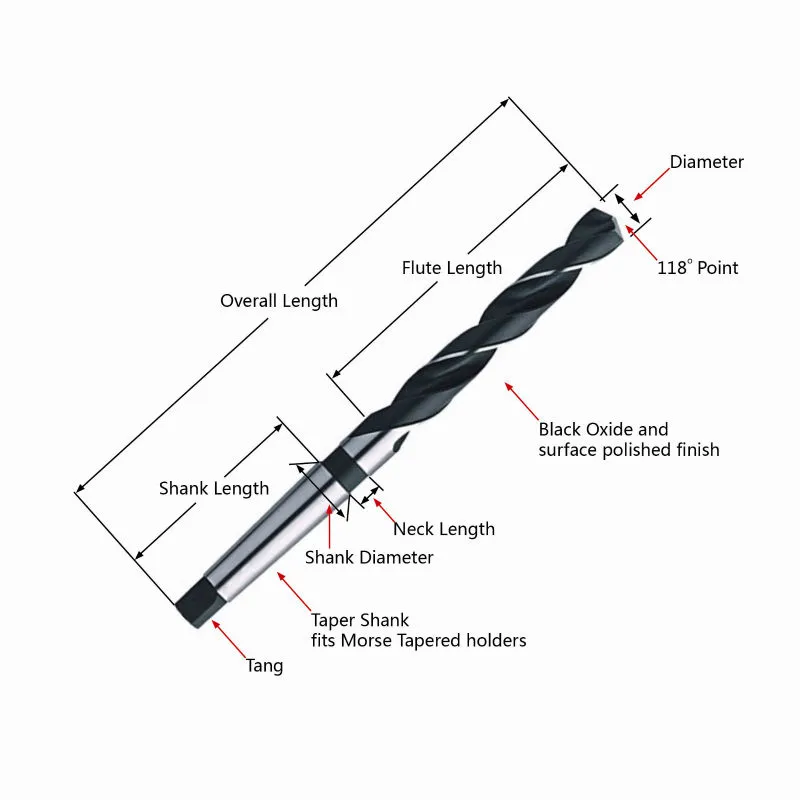

Product Size

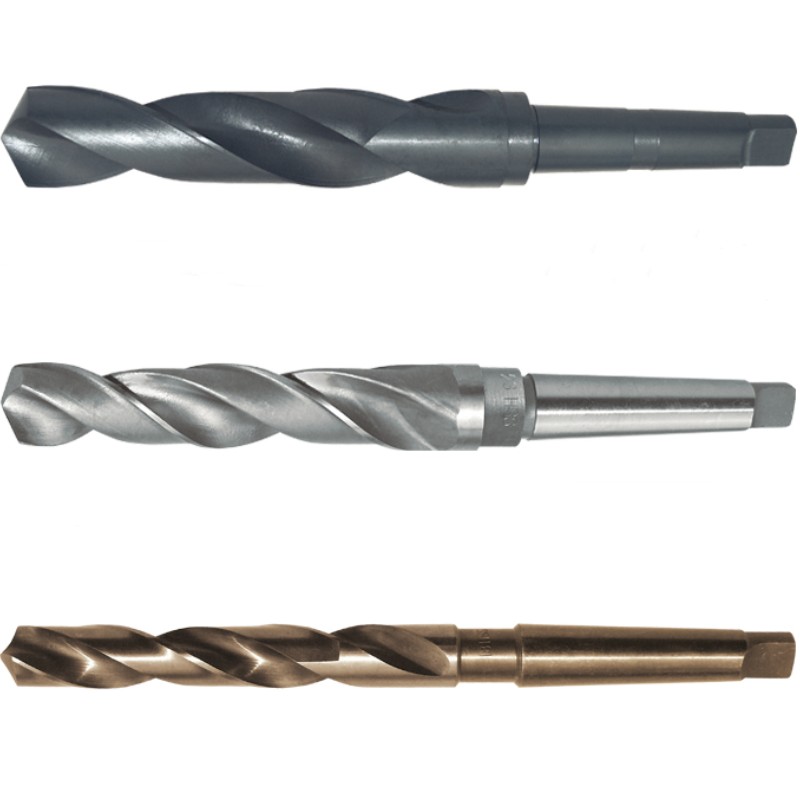

Taper shank drill bit size
different sizes

Other Sizes are available,Contact Us to Learn More.

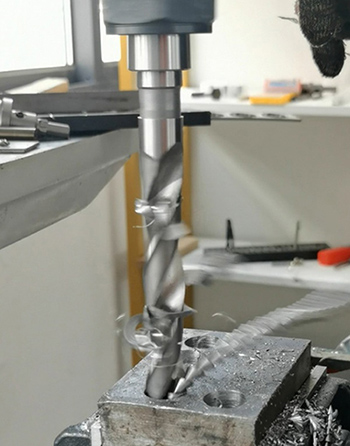

Application

Suitable for drilling stainless steel, heat-resistant steel, alloy steel, cast steel and difficulty cutting materials of HRC32-38.

Taper shank drill bit applications

Our Advantages

High quality twist drill HSS Morse Taper Shank drill for steels

1.Low MOQ: It can meet your business very well.

2.OEM Accepted : We can produce any your design box(your own brand not copy).

3.Good Service : We treat clients as friend.

4.Good Quality :We have strict quality control system .Good reputation in the market.

5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
