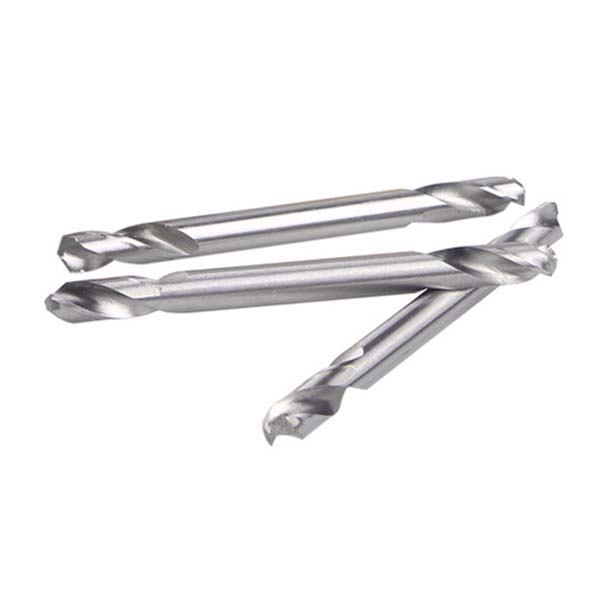

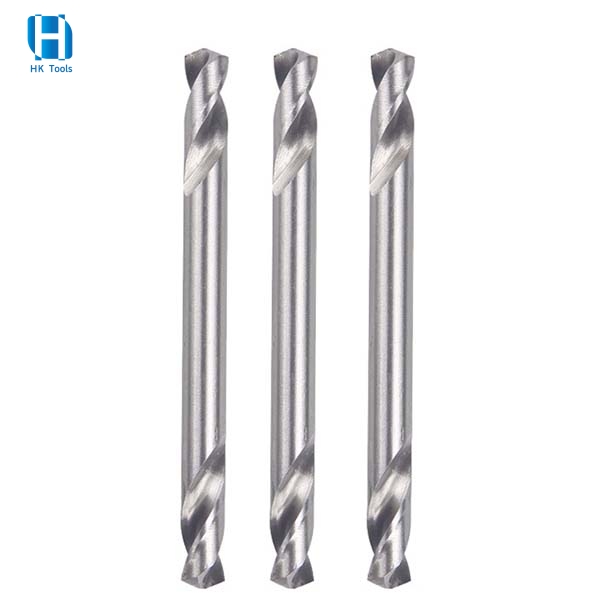

HSS Double Ended Twist Drill Bit 5.2mm Fully Ground For Metal Thin Sheet Drilling
Product Information
| Product Name | Bright Finish Fully Ground Double Ended HSS Drill Bit for Stainless Steel Metal |
| Material | HSS (HSS Cobalt is Available) |
| Process | Fully Ground (Rolled & Polished, Rolled, Milled are Available) |
| Standard | Double Ended (DIN338, Stub DIN1897, Long DIN340, Extra Long DIN1869, DIN345 Taper Shank,
Blacksmith Reduced Shank 10mm, 13mm are Available) (Jobber Length, Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin, Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available) |
| Size | 3-5.2mm, 7/64"-1/4", 10#, 20#, 30# |
| Point Type | 135 Degree Split Point (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available) |
| Shank Type | Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,
Threaded Hex Shank,Taper Shank are Available) |
| Helix Angle | Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available) |
| Web & Flute Type | Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available) |
| Surface Finish | Bright (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available) |

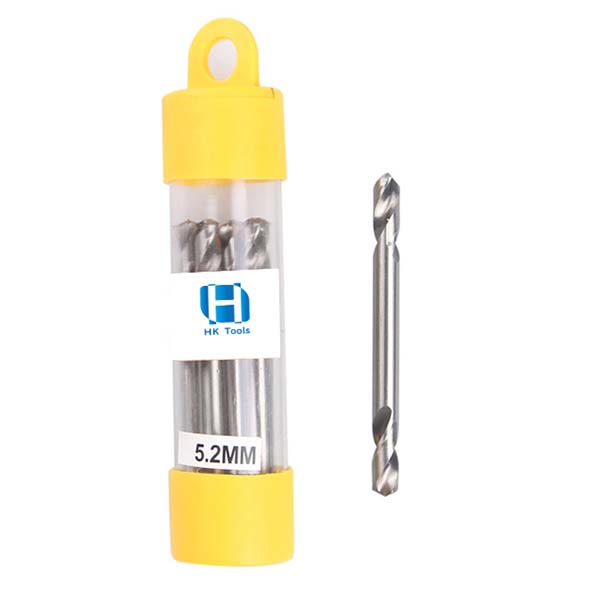

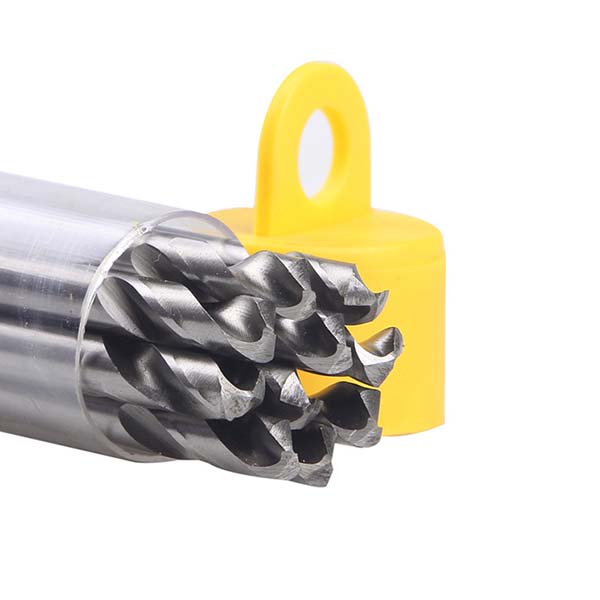

| Package | 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell. |
| Features | 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. 2.No center punch is needed-the aggressive 135° Quick-Cut points are self-centering and penetrate quickly with less pressure. Will not "walk" or "wander". 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance. 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit. 5.The double ended design doubles the life of the drill bit. |
Product Size
| Double Ended(Metric Size) | |||||||||||
|
Diameter |
Flute Length |
Overall Length |
Diameter |
Flute Length |
Overall Length |
Diameter |
Flute Length |
Overall Length |
Diameter |
Flute Length |
Overall Length |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
3.0 |
10 |
46 |
4.1 |
13 |
55 |
5.2 |
16 |
62 |
8.0 |
25 |
79 |
|
3.1 |
10 |
46 |
4.2 |
13 |
55 |
5.5 |
19 |
66 |
8.5 |
25 |
79 |
|
3.2 |
10 |
49 |
4.5 |
16 |
58 |
6.0 |
19 |
66 |
9.0 |
25 |
84 |
|
3.3 |
10 |
49 |
4.8 |
16 |
58 |
6.5 |
21 |
70 |
9.5 |
25 |
84 |
|
3.5 |
13 |
52 |
5.0 |
16 |
62 |
7.0 |
23 |
74 |
10.0 |
25 |
89 |
|
4.0 |
13 |
55 |
5.1 |
16 |
62 |
7.5 |
23 |
74 |
|
|
|
|
|
|||||||||||
| Double Ended(Inch Size) | |||||||||||
|
Diameter |
Flute Length |
Overall Length |
Diameter |
Flute Length |
Overall Length |
Diameter |
Flute Length |
Overall Length |
Diameter |
Flute Length |
Overall Length |
|
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
|
3/32" |
9/16" |
1-3/4" |
9/64" |
5/8" |
2" |
7/32" |
11/16" |
2-3/8" |
11# |
11/16" |
2-1/4" |
|
7/64" |
5/8" |
1-7/8" |
5/32" |
5/8" |
2-1/16" |
1/4" |
7/8" |
2-1/2" |
20# |
5/8" |
2-1/8" |
|
1/8" |
5/8" |
2" |
3/16" |
5/8" |
2-13/16" |
10# |
11/16" |
2-1/4” |
30# |
5/8" |
2" |
Custom-tailor would be available against customers’ requirements
Application
Scope of application
Applicable Machines
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.
Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
