Product Name

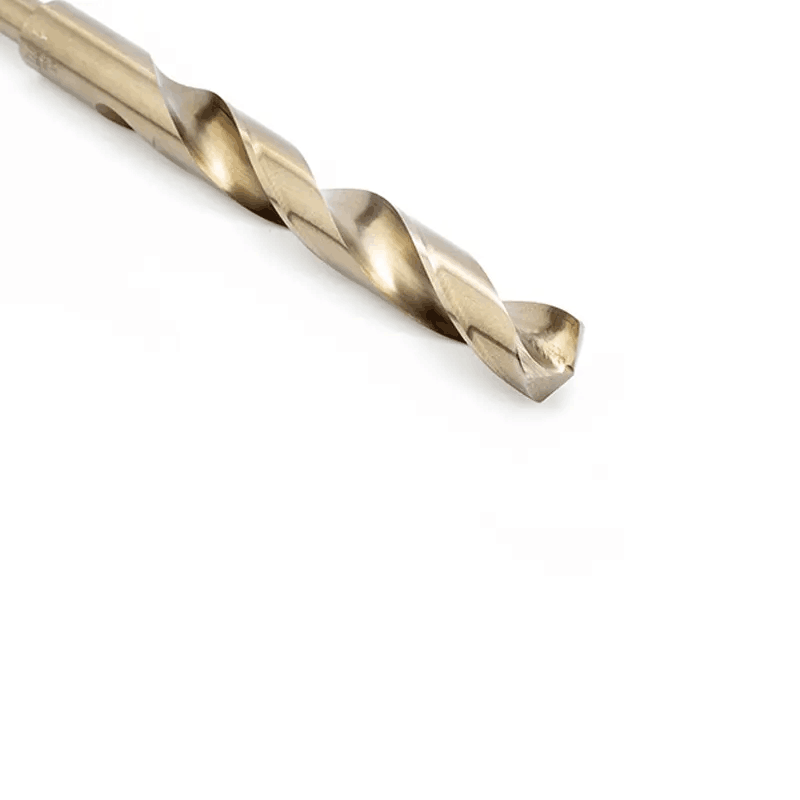

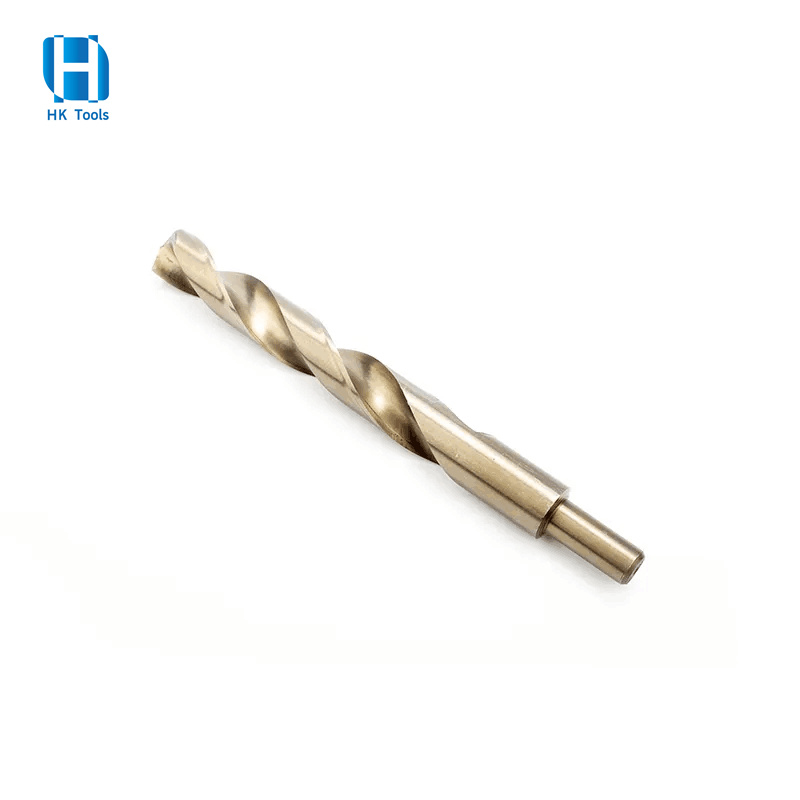

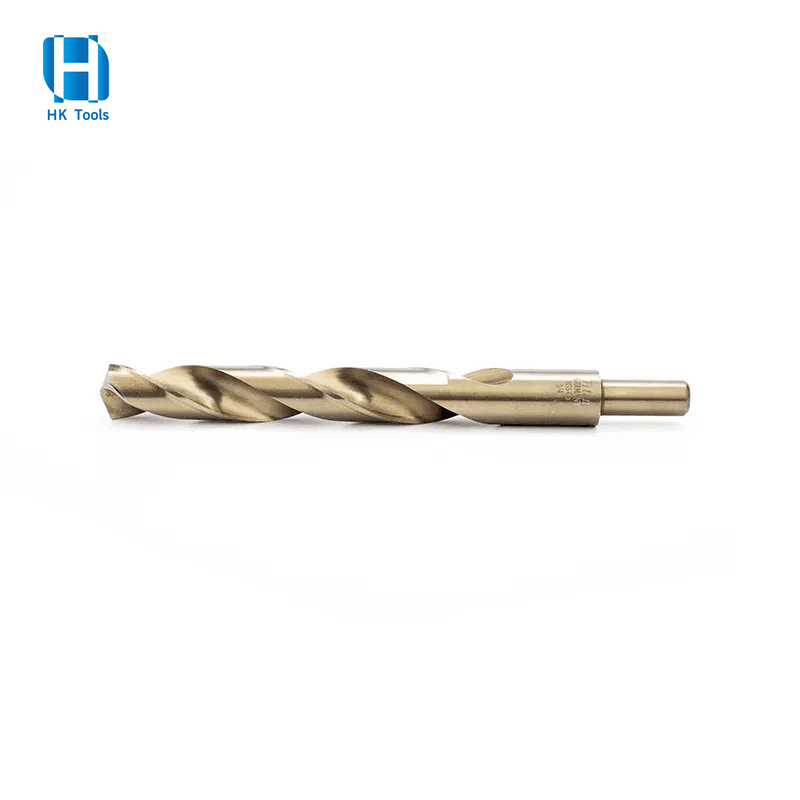

1/2" Shank Diameters HSS Reduced-Shank Drill Bits For metal

Material

HSSM42, HSSM35, HSSM2(6542), HSS4341, HSS4241

Process

Milled/Fully ground

Standard

DIN338, DIN340, DIN1897, DIN1869

Split point

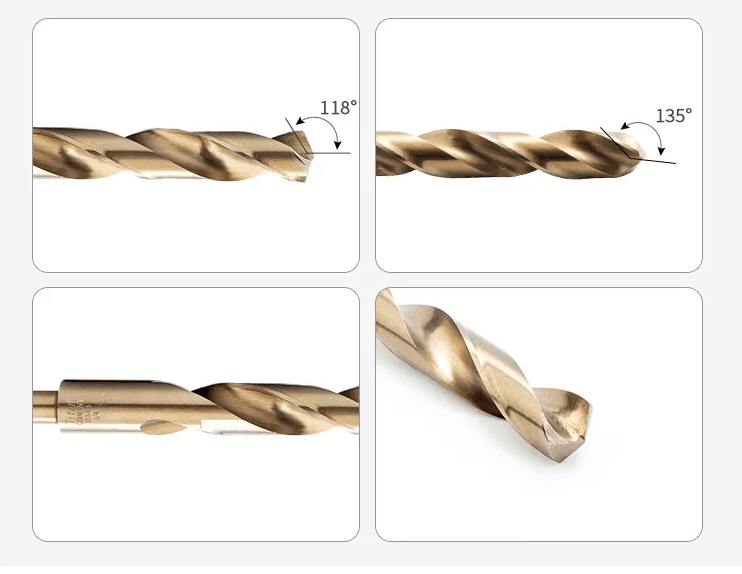

118° / 135° or split point

Stamping

laser marking and (letter) stamping.

Shank

reduced shank drill bits

Available Packing

single sleeve packing, sandwich packing, blister packing, square plastic
box packing( with hanger or without hanger), Bosch plastic box packing,
flat plastic box packing, 5/10 PVC bag packing, paper bag,

Surface Color

Black Oxide/ Tin-coated/Polish white/Amber/Black&Gold /Black & White

Diameter Size

12.5mm-50mm  9/16”-1”

Applications:

Suitable for drilling general steel, alloy steel under HRC 35, iron,stainless steel.

Feature

1. Material: The only manufacturer in China who uses DIN materials in batches to increase the carbon, tungsten, and molybdenum content, thus ensuring high carbon saturation and superior material properties.

2. Straight drill below 13mm adopts a fully ground process, which not only has a good finish but also can ensure the radial run-out of the drill bit within 0.03. Drilled holes are more accurate. Similarly, the taper drill uses the outer diameter of the CNC outer circle to ensure that the radial run-out of the taper drill is also within 0.03 mm.

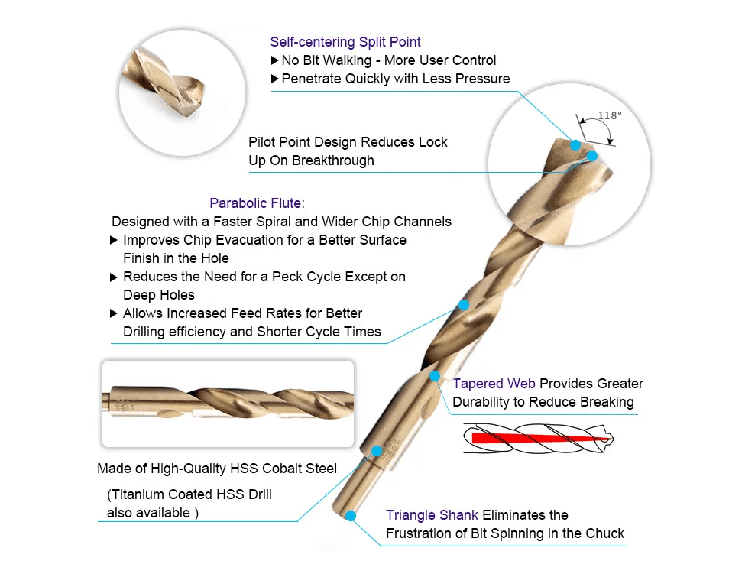

3. The groove shape of the drill bit has combined the shape of the parabolic, which makes the drill bit stronger and the chip removal smoother.

4. Through the technical innovation of high-speed steel twist drill, the life of the drill bit of our factory is generally higher 50% than the mainstream products in the domestic market, reaching the service life of international famous brands.

5. The second generation of hss drill is not only suitable for the processing of general steel such as carbon steel, but also for difficult to machine materials such as die steel and stainless steel.
