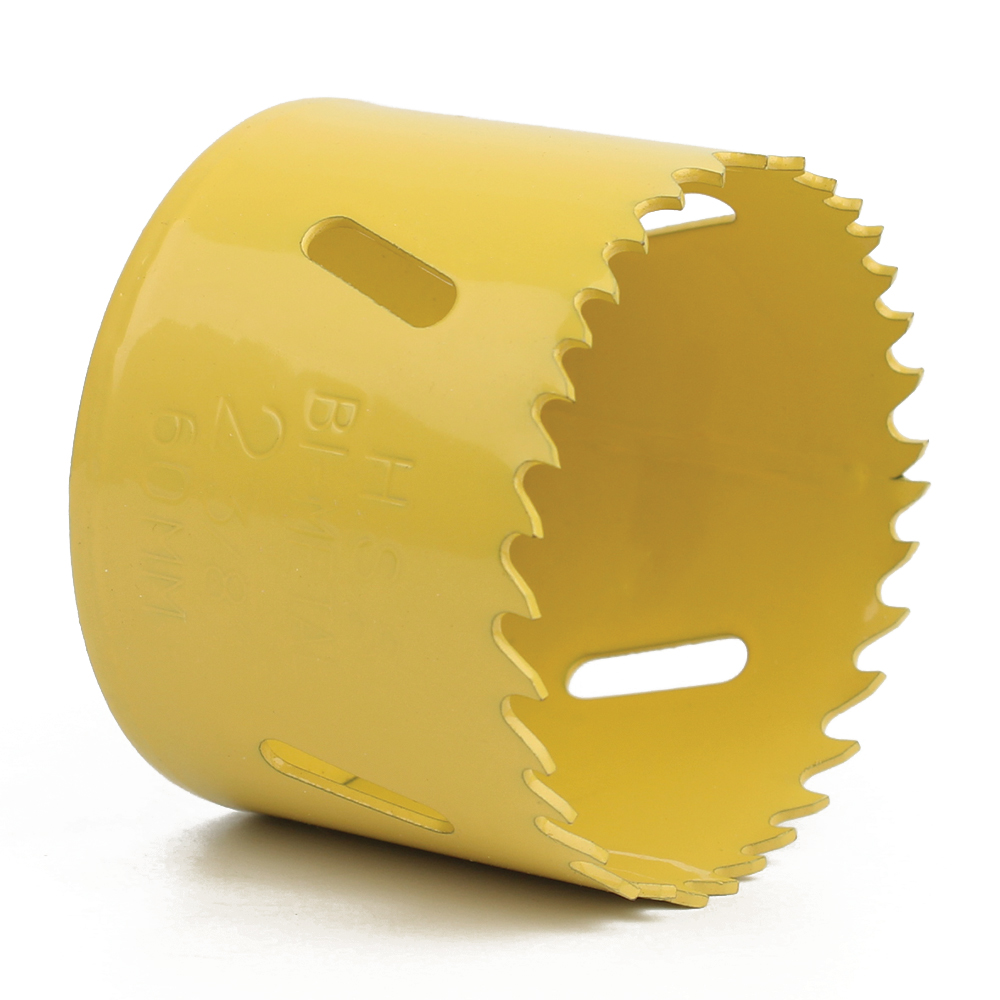

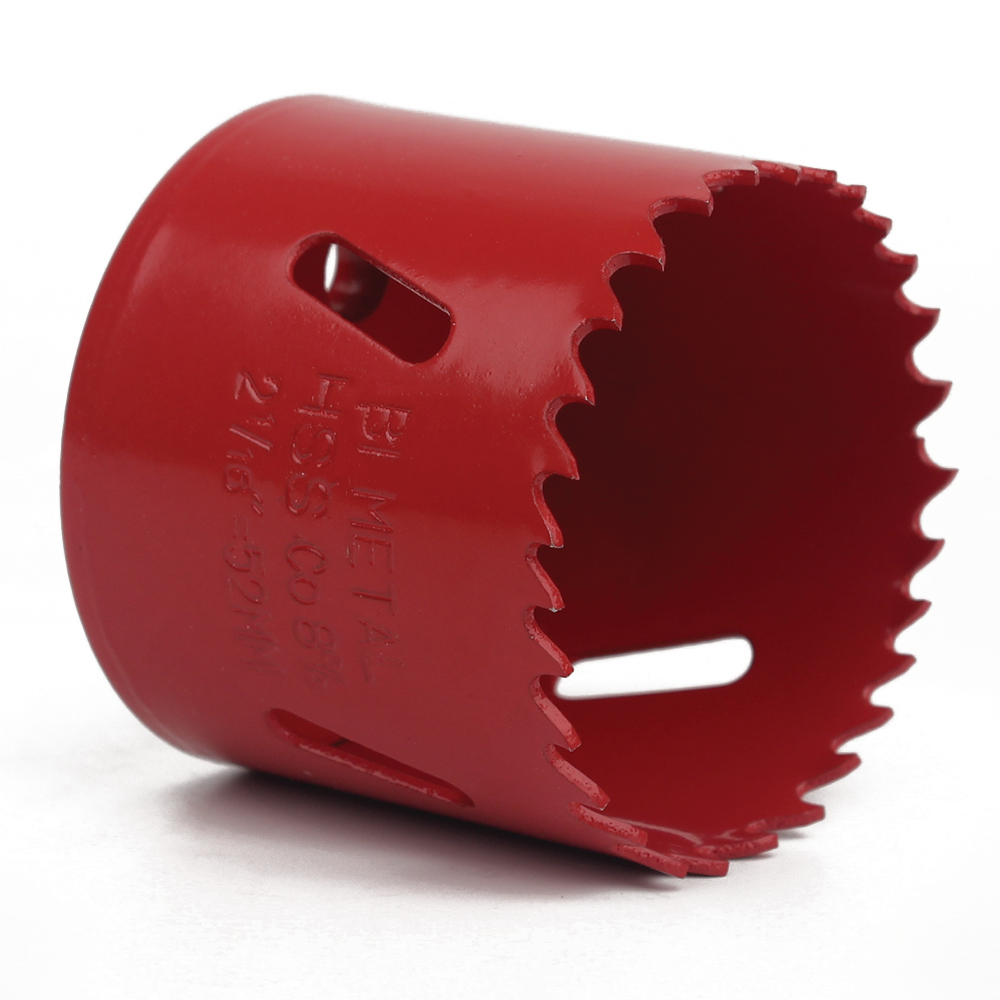

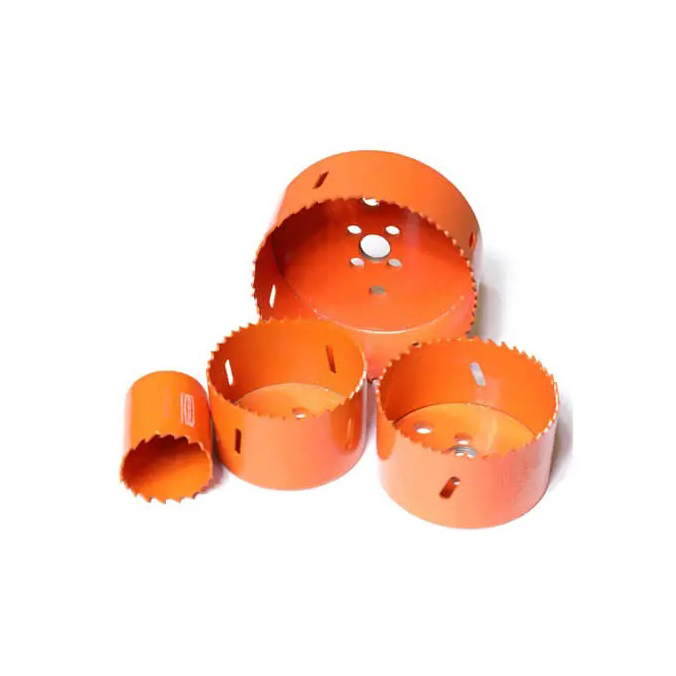

HSS M3/M42 Bi-Metal Hole Saw
Product Information
| Product Name | HSS M3/M42 Bi-Metal Hole Saw |
| Material | HSS M3 Bi-metal/M42 Bi-Metal |
| Process | High-Frequency Welded |
| Teeth Type | Aggerssive Sharp and Protect |
| Arbor Hole Size | Cutting Depth to 1-1/2"(38mm) and 1-7/8"(47mm); Diameters from 9/16" -- 8-17/64" (14-210mm); |
| Teeth Design | 4/6 variable Tooth |
| Package | bi-metal hole saw for Wood, Metal packing with: White box, Color Box, Blister with Card. |
| Features | FEATURE:1. M3/M42 High Speed Bi-metal Edge Welded to Alloy Steel Back for Heavy Duty Cutting;
2. 4/6 variable Tooth; 3. Cutting Safely and Efficiently,the Best Way to Cut Large Holes, Clearing the Chips in Touch Materials; 4. Cutting Depth to 1-1/2"(38mm) and 1-7/8"(47mm); 5. Diameters from 9/16" -- 8-17/64" (14-210mm); 6. Can be used in Portable Electric or Pneumatic Tools, Vertical Drill Machines, Lathe, Boring/Milling Machines and Other Machine Tools; 7. Cuts Through Stainless Steel and Other Materials Pipe, Nail-Embedded wood, Hard Wood Floors, Plywood and Plastics; 8. All the specifications for arbored hole saws are the same as hole saws. There is an extra charge for the pilots. |
Product Size
|
Diameter |
Diameter |
||
|
14 |
9/16" |
65 |
2-9/16" |
|
16 |
5/8" |
67 |
2-5/8" |
|
17 |
11/16" |
68 |
2-11/16" |
|
19 |
3/4" |
70 |
2-3/4" |
|
20 |
25/32" |
73 |
2-7/8" |
|
21 |
13/16" |
76 |
3" |
|
22 |
7/8" |
79 |
3-1/8" |
|
24 |
15/16" |
83 |
3-1/4" |
|
25 |
1" |
86 |
3-3/8" |
|
27 |
1-1/16" |
89 |
3-1/2" |
|
29 |
1-1/8" |
92 |
3-5/8" |
|
30 |
1-3/16" |
95 |
3-3/4" |
|
32 |
1-1/4" |
98 |
3-7/8" |
|
33 |
1-5/16" |
102 |
4" |
|
35 |
1-3/8" |
105 |
4-1/8" |
|
37 |
1-7/16" |
108 |
4-1/4" |
|
38 |
1-1/2" |
111 |
4-3/8" |
|
40 |
1-9/16" |
114 |
4-1/2" |
|
41 |
1-5/8" |
121 |
4-3/4" |
|
43 |
1-11/16" |
127 |
5" |
|
44 |
1-3/4" |
133 |
5-1/4" |
|
46 |
1-13/16" |
140 |
5-1/2" |
|
48 |
1-7/8" |
146 |
5-3/4" |
|
51 |
2" |
152 |
6" |
|
52 |
2-1/16" |
160 |
6-19/64" |
|
54 |
2-1/8" |
165 |
6-1/2" |
|
57 |
2-1/4" |
168 |
6-5/8" |
|
59 |
2-5/16" |
177 |
6-31/32" |
|
60 |
2-3/8" |
200 |
7-7/8" |
|
64 |
2-1/2" |
210 |
8-17/64" |
Types and Designs of Teeth and Shoulder
