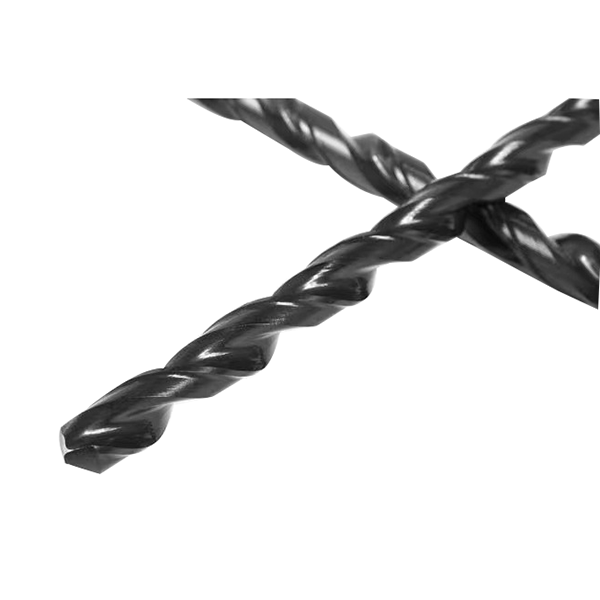

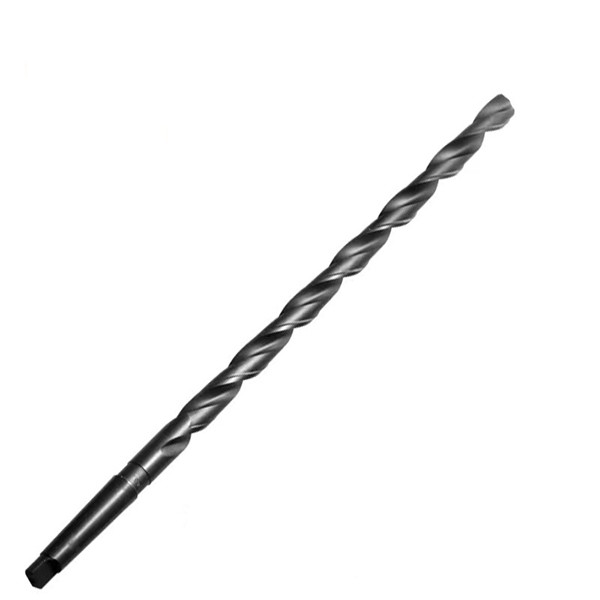

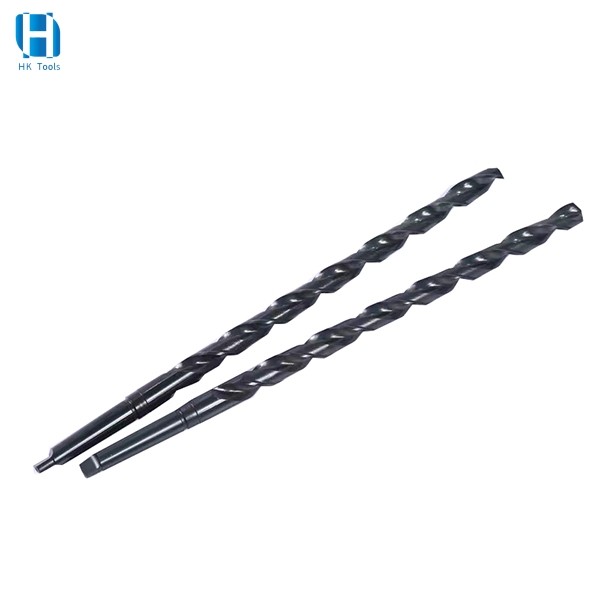

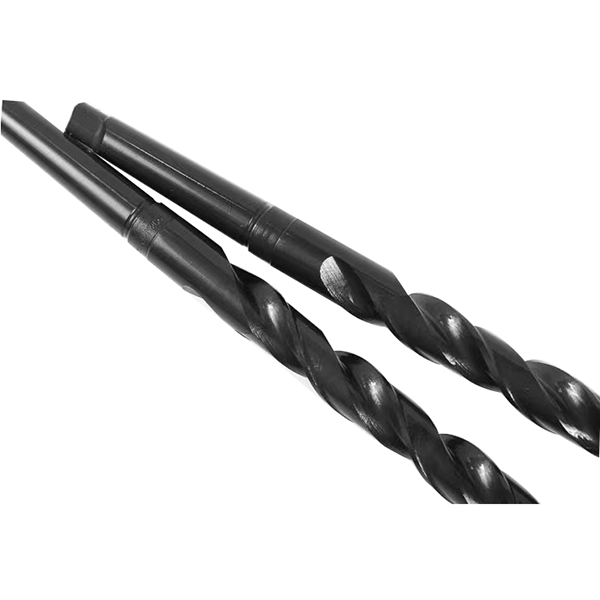

HSS Taper Shank Twist Drill Bits Extra Long For Metal
Product Information
| Procuct Name | HSS Taper Shank Twist Drill Bits Extra Long For Metal |
| Material | HSS (Cobalt 5% M35 is Available) |
| Process | Milled |
| Standard | DIN341 DIN1870 (ANSI, DIN345, are Also Available) |
| MT No. | No.1 to No.6 |
| Size | 6mm-32.2mm |
| Flute Type | Type N, Right Hand Cutting |
| Point Angle | 118 Degree (135 Degree Split Point, Thinning Point are Available) |
| Surface Finish | Black (Black Oxide, Gray & Bright, Black & White, Amber Color, Bright, Titanium Coating are Also available) |
| Package | One Piece in Paper Box,Plastic Box,Wood Box. |
| Features | 1. Precise dimension,long life and high efficiency. 2. High-speed steel (HSS) provides hardness for wear resistance 3. Bright finish increases chip flow in softer materials such as aluminum, wood and plastic 4. Self-centering 118-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge 5. Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters 6. When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging 7. Designed to perform in a broad range of materials in the iron and steel families |
Product Size
|
Specification |
Flute Length(mm) |
Length(mm) |
Diameter(mm) |
Material |
|
6 |
150 |
230 |
6 |
HSS |
|
6.2 |
150 |
230 |
6.2 |
HSS |
|
6.5 |
150 |
230 |
6.5 |
HSS |
|
6.8 |
150 |
235 |
6.8 |
HSS |
|
7 |
150 |
235 |
7 |
HSS |
|
7.2 |
150 |
235 |
7.2 |
HSS |
|
7.5 |
150 |
235 |
7.5 |
HSS |
|
7.8 |
150 |
240 |
7.8 |
HSS |
|
8 |
150 |
240 |
8 |
HSS |
|
8.1 |
150 |
240 |
8.1 |
HSS |
|
8.5 |
150 |
240 |
8.5 |
HSS |
|
8.8 |
150 |
245 |
8.8 |
HSS |
|
9 |
150 |
245 |
9 |
HSS |
|
9.1 |
150 |
245 |
9.1 |
HSS |
|
9.5 |
150 |
245 |
9.5 |
HSS |
|
9.8 |
170 |
250 |
9.8 |
HSS |
|
10 |
170 |
250 |
10 |
HSS |
|
10.2 |
170 |
250 |
10.2 |
HSS |
|
10.5 |
170 |
250 |
10.5 |
HSS |
|
10.6 |
175 |
255 |
10.6 |
HSS |
|
11 |
175 |
255 |
11 |
HSS |
|
11.2 |
175 |
255 |
11.2 |
HSS |
|
11.5 |
175 |
255 |
11.5 |
HSS |
|
11.6 |
175 |
255 |
11.6 |
HSS |
|
11.9 |
180 |
260 |
11.9 |
HSS |
|
12 |
180 |
260 |
12 |
HSS |
|
12.2 |
180 |
260 |
12.2 |
HSS |
|
12.5 |
180 |
260 |
12.5 |
HSS |
|
12.6 |
180 |
260 |
12.6 |
HSS |
|
12.9 |
180 |
260 |
12.9 |
HSS |
|
13 |
180 |
260 |
13 |
HSS |
|
13.2 |
180 |
260 |
13.2 |
HSS |
|
13.5 |
185 |
265 |
13.5 |
HSS |
|
13.8 |
185 |
265 |
13.8 |
HSS |
|
13.9 |
185 |
265 |
13.9 |
HSS |
|
14 |
185 |
265 |
14 |
HSS |
|
14 2# |
190 |
290 |
14 |
HSS |
|
14.5 |
190 |
290 |
14.5 |
HSS |
|
14.75 |
190 |
290 |
14.75 |
HSS |
|
15 |
190 |
290 |
15 |
HSS |
|
15.25 |
195 |
295 |
15.25 |
HSS |
|
15.5 |
195 |
295 |
15.5 |
HSS |
|
15.6 |
195 |
295 |
15.6 |
HSS |
|
15.75 |
195 |
295 |
15.75 |
HSS |
|
16 |
195 |
295 |
16 |
HSS |
|
16.1 |
200 |
300 |
16.1 |
HSS |
|
16.25 |
200 |
300 |
16.25 |
HSS |
|
16.5 |
200 |
300 |
16.5 |
HSS |
|
16.75 |
200 |
300 |
16.75 |
HSS |
|
16.9 |
200 |
300 |
16.9 |
HSS |
|
17 |
200 |
300 |
17 |
HSS |
|
17.25 |
205 |
305 |
17.25 |
HSS |
|
17.5 |
205 |
305 |
17.5 |
HSS |
|
17.75 |
205 |
305 |
17.75 |
HSS |
|
17.9 |
205 |
305 |
17.9 |
HSS |
|
18 |
205 |
305 |
18 |
HSS |
|
18.25 |
210 |
310 |
18.25 |
HSS |
|
18.5 |
210 |
310 |
18.5 |
HSS |
|
18.75 |
210 |
310 |
18.75 |
HSS |
|
18.9 |
210 |
310 |
18.9 |
HSS |
|
19 |
210 |
310 |
19 |
HSS |
|
19.5 |
220 |
320 |
19.5 |
HSS |
|
19.75 |
220 |
320 |
19.75 |
HSS |
|
19.9 |
220 |
320 |
19.9 |
HSS |
|
20 |
220 |
320 |
20 |
HSS |
|
20.25 |
230 |
330 |
20.25 |
HSS |
|
20.5 |
230 |
330 |
20.5 |
HSS |
|
20.75 |
230 |
330 |
20.75 |
HSS |
|
20.9 |
230 |
330 |
20.9 |
HSS |
|
21 |
230 |
330 |
21 |
HSS |
|
21.25 |
235 |
335 |
21.25 |
HSS |
|
21.5 |
235 |
335 |
21.5 |
HSS |
|
21.75 |
235 |
335 |
21.75 |
HSS |
|
21.9 |
235 |
335 |
21.9 |
HSS |
|
22 |
235 |
335 |
22 |
HSS |
|
22.25 |
235 |
335 |
22.25 |
HSS |
|
22.5 |
240 |
340 |
22.5 |
HSS |
|
22.75 |
240 |
340 |
22.75 |
HSS |
|
23 |
240 |
340 |
23 |
HSS |
|
23.1 |
240 |
360 |
23.1 |
HSS |
|
23.25 |
240 |
360 |
23.25 |
HSS |
|
23.5 |
240 |
360 |
23.5 |
HSS |
|
23.6 |
245 |
365 |
23.6 |
HSS |
|
23.75 |
245 |
365 |
23.75 |
HSS |
|
24 |
245 |
365 |
24 |
HSS |
|
24.25 |
245 |
365 |
24.25 |
HSS |
|
24.5 |
245 |
365 |
24.5 |
HSS |
|
24.75 |
245 |
365 |
24.75 |
HSS |
|
24.9 |
245 |
365 |
24.9 |
HSS |
|
25 |
245 |
365 |
25 |
HSS |
|
25.25 |
255 |
375 |
25.25 |
HSS |
|
25.5 |
255 |
375 |
25.5 |
HSS |
|
25.75 |
255 |
375 |
25.75 |
HSS |
|
25.9 |
255 |
375 |
25.9 |
HSS |
|
26 |
255 |
375 |
26 |
HSS |
|
26.25 |
255 |
375 |
26.25 |
HSS |
|
26.5 |
255 |
375 |
26.5 |
HSS |
|
26.75 |
265 |
385 |
26.75 |
HSS |
|
26.9 |
265 |
385 |
26.9 |
HSS |
|
27 |
265 |
385 |
27 |
HSS |
|
27.25 |
265 |
385 |
27.25 |
HSS |
|
27.5 |
265 |
385 |
27.5 |
HSS |
|
27.75 |
265 |
385 |
27.75 |
HSS |
|
27.9 |
265 |
385 |
27.9 |
HSS |
|
28 |
265 |
385 |
28 |
HSS |
|
28.25 |
275 |
395 |
28.25 |
HSS |
|
28.5 |
275 |
395 |
28.5 |
HSS |
|
28.75 |
275 |
395 |
28.75 |
HSS |
|
28.9 |
275 |
395 |
28.9 |
HSS |
|
29 |
275 |
395 |
29 |
HSS |
|
29.25 |
275 |
395 |
29.25 |
HSS |
|
29.5 |
275 |
395 |
29.5 |
HSS |
|
29.75 |
275 |
395 |
29.75 |
HSS |
|
29.9 |
275 |
395 |
29.9 |
HSS |
|
30 |
275 |
395 |
30 |
HSS |
|
30.1 |
275 |
395 |
30.1 |
HSS |
|
30.9 |
285 |
405 |
30.9 |
HSS |
|
31 |
285 |
405 |
31 |
HSS |
|
31.9 |
285 |
405 |
31.9 |
HSS |
|
32 |
285 |
405 |
32 |
HSS |
|
32.2 |
285 |
405 |
32.2 |
HSS |
Custom-tailor would be available against customers’ requirements
Application
Scope of application
Application Machines
Shipping and Packing
Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
