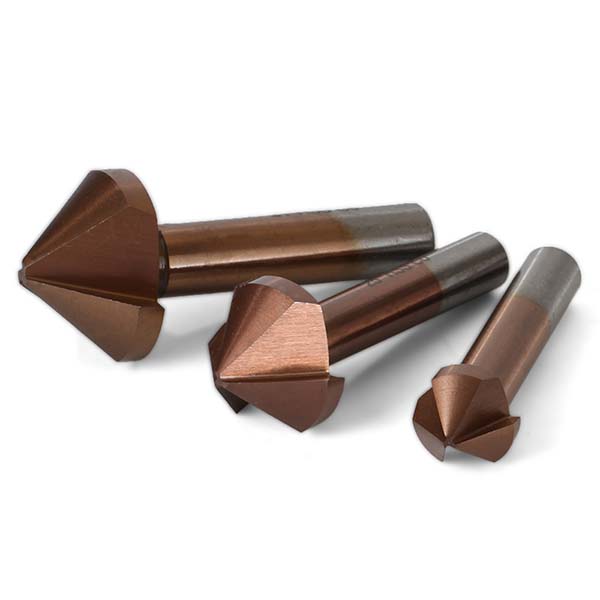

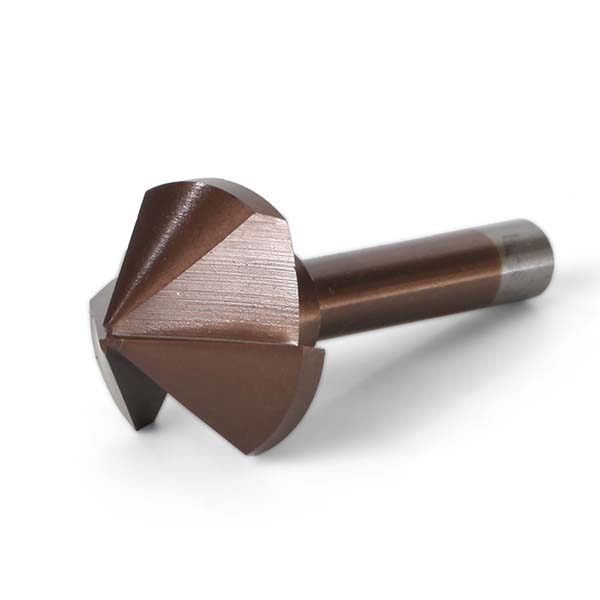

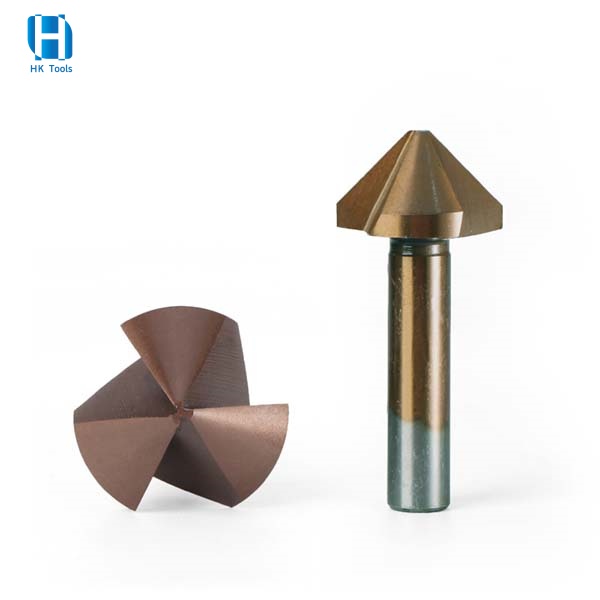

M35 3 Flutes HSS Cobalt Countersink Drill Bit 90 Degree For Deburring Chamfering

Short Description:

  • A countersink is a conical hole cut into a manufactured object, or the cutter used to cut such a hole.
  • A common use is to allow the head of a countersunk bolt or screw, when placed in the hole, to sit flush with or below the surface of the surrounding material (by comparison, a counterbore makes a flat-bottomed hole that might be used with a socket-head screw).
  • A countersink may also be used to remove the burr left from a drilling or tapping operation thereby improving the finish of the product and removing any hazardous sharp edges.


Product Detail

Product Tags

Product Information

Product Name DIN335C Straight Shank 90 Degree 3 Flutes HSS Chamfer Metal Countersink Drill Bit

for Metal Chamfering and Deburring
Size 4.3MM - 40.0MM
Material High Speed Steel       (Cobalt5%-M35, Carbide Steel , Carbon Steel  are Available)
Flute Type 3 Flute      (5 Flute, Single Flute, 0 Flute,  6 Flute, 7 Flute,  Multi Flute are Available)
Cutting Angle 90°        (120°, 60 °, 82°  are Available)
Shank Type Round Shank       (Hex Shank, Taper Shank,  Tri-Flat Shank, Weldon Shank, Long Shank are Available)
Surface Finish White        (Black and White, Tin-Coated, Black, Black and Yellow are Available)
Package 1 Piece in One Plastic Box       (Double Blister Card is Available)
Features 1. Three-flute designed to reduce clogging, improve clearance and be chatter free
2.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
3.Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications.
4.Round shanks allow use with a wide variety of toolholding systems.
5.Made from industrial grade High-Speed Steel for increased durability.
6.Ideal for wooden planks,fiberboard,particle board,plywood,plastic,alumiumn board ,pcb board and more

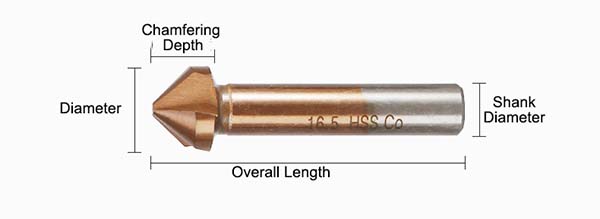

Product Size

size

Specifications

Chamfering Depth

Shank Diameter

Overall Length

3 Flutes Countersink Drill Bit 6.3

1.5-6

5mm

45mm

3 Flutes Countersink Drill Bit 8.3

2.0-8

6mm

50mm

3 Flutes Countersink Drill Bit 10.4

2.5-10

6mm

50mm

3 Flutes Countersink Drill Bit 12.4

2.8-12

6mm

56mm

3 Flutes Countersink Drill Bit 16.5

3.2-16

10mm

60mm

3 Flutes Countersink Drill Bit 20.5

3.5-20

10mm

63mm

3 Flutes Countersink Drill Bit 25

3.8-25

10mm

67mm

3 Flutes Countersink Drill Bit 31

4.2-31

12mm

71mm

3 Flutes Countersink Drill Bit 40

5.0-40

15mm

90mm



Custom-tailor would be available against customers’ requirements

Application

                                 Scope of application

                                Application  Machines

material
application machine

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

deliver
