M35 Cobalt Containing HSS Double Ended Drill Bit Amber Color For Metal Drilling Featured Image
  • M35 Cobalt Containing HSS Double Ended Drill Bit Amber Color For Metal Drilling
  • M35 Cobalt Containing HSS Double Ended Drill Bit Amber Color For Metal Drilling
  • M35 Cobalt Containing HSS Double Ended Drill Bit Amber Color For Metal Drilling

M35 Cobalt Containing HSS Double Ended Drill Bit Amber Color For Metal Drilling

Short Description:

M35 Cobalt High Speed Steel:Industry grade M35 high speed steel drill bit set, harder than 4241 HSS used in other similar drill bits set. These drill bits also contain 5% Cobalt, which increases wear-resistance and durability.

Fully Ground Process & 135° Split Point:Fully ground spiral groove design clears particles quickly, decreases friction and heat for a faster and cooler drilling performance. 135° split point with straight shank prevents walking and makes drilling precise and faster. No center punch is needed.


Product Detail

Product Tags

Product Information

HSS Twist Drill Bits

Manufacturing

Surface Finish

Sharpening

White

Black

Black&White

TIN Coated

Amber

Black&Gold

118°

135°

Roll Forged



√

√







√

√

Rolled Polished

√

√

√

√

√



√

√

Fully Ground

√

√

√

√

√

√

√

√

Milled

√

√

√

√



√

√



Standards

DIN338, DIN340, DIN1897, DIN1869, DIN345, DIN341

Jobber Length, Double Ended, Taper Length, Screw Machine Length, Aircraft Extension, Taper Shank(ANSI)

Material

HSS4241, HSS4341, HSS9341, HSS6542(M2), HSS CO5%(M35), HSS CO8%(M42)

Shank

Straight Shank, Taper Shank, Three Flats Shank, Hexagonal Shank, 1/2"  3/8" Reduced Shank

Helix Angle

Type N, Type W, Type H

Rotating

Right Hand, Left Hand

Flute

Normal Parabolic



Product Size

Double End Drill Bits Size

Diameter

Flute Length

Overall Length

Diameter

Flute Length

Overall Length

D

L1

L2

D

L1

L2

2

8

38

 1/16

 3/8

1-1/2

2.5

10

43

5/64

 3/8

1-1/2

3

11

46

3/32

 3/8

1-11/16

3.2

11

49

7/64

 1/2

1-13/16

3.5

14

52

 1/8

 1/2

1-13/16

4

14

55

9/64

 5/8

2-1/16

4.5

17

58

5/32

 5/8

2-3/16

5

17

62

 3/16

 5/8

2-5/16

5.5

19

66

7/32

 3/4

2-5/8

6

19

66

 1/4

 3/4

2-7/8

6.5

22

70

#7

 5/8

2-5/16







#11

 5/8

2-5/16







#20

 5/8

2-3/16







#26

 5/8

2-1/16







#27

 5/8

2-1/16







#30

 1/2

1-13/16



Custom-tailor would be available against customers’ requirements

Application

                                  Applicable Material

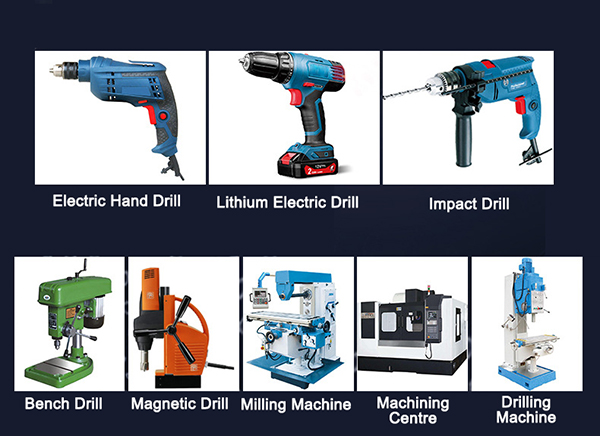

                                Applicable  Machines

applicable material
applicable machine

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

packing-1
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
