M35 Hss 3-13mm Hex shank spiral flute Cobalt plating pagoda Metal Drill Step Drilling Bit Featured Image
  • M35 Hss 3-13mm Hex shank spiral flute Cobalt plating pagoda Metal Drill Step Drilling Bit
  • M35 Hss 3-13mm Hex shank spiral flute Cobalt plating pagoda Metal Drill Step Drilling Bit
  • M35 Hss 3-13mm Hex shank spiral flute Cobalt plating pagoda Metal Drill Step Drilling Bit

M35 Hss 3-13mm Hex shank spiral flute Cobalt plating pagoda Metal Drill Step Drilling Bit

Short Description:

1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals,pipes, plexiglass,plastics, wood up to a thickness of 5mm.

2. 135° Split Point Tip and Center Punch: increases cutting speed with self-centering and the drills do not run off center.

3. A variety of hole diameters can be drilled using only one tool.

4. The dimension of drilled hole is exact.

5. Two Flute Design: provides longer life and better chip removal.

6. Titanium coating provides up to 2 times the life over high speed steel.

7. Only for rotary use.


Product Detail

Product Tags

Product Information

product name
 step drill bit
Material
HSS(Cobalt M35 is Available)
Size
3-13mm  /4-12mm / 4-20 mm/ 4-32 mm
Flute Type
Straight Flute / Spiral Flute
Flute Number
single Flutes / two Flute /Three Flutes
Shank
Quick Change Hex Shank, Round Shank, Double R Shank,Tri -flat shank are Available
Surface Finish
Titanium coated (Bright, Black & Amber, Co-coated, Black Oxide, Black & Bright, TiAIN are Available)
Color
Amber Color ,Bright, Black Oxide, Titanium, Black & Gold, are Available
Package
custom/pvc/box/carton





Product Size

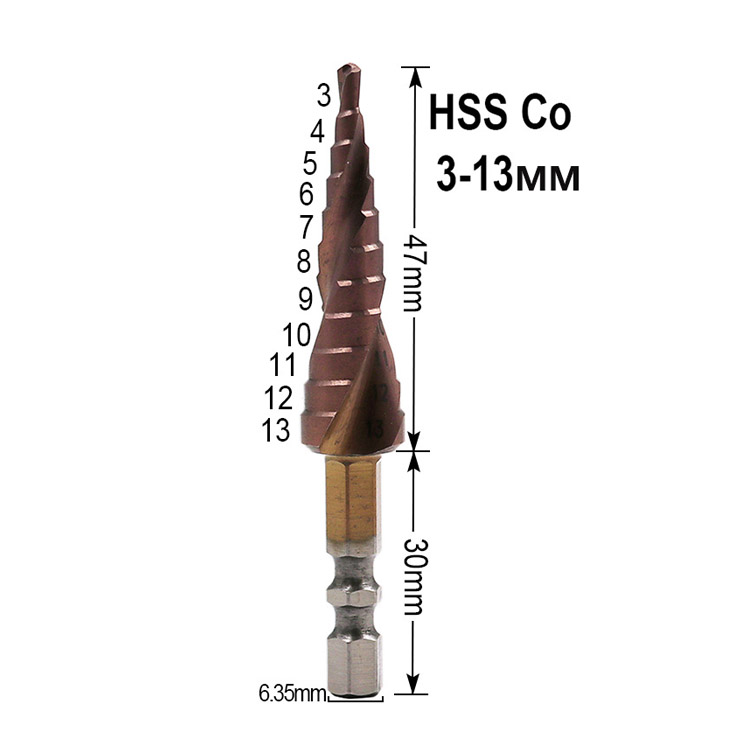

3-13mm

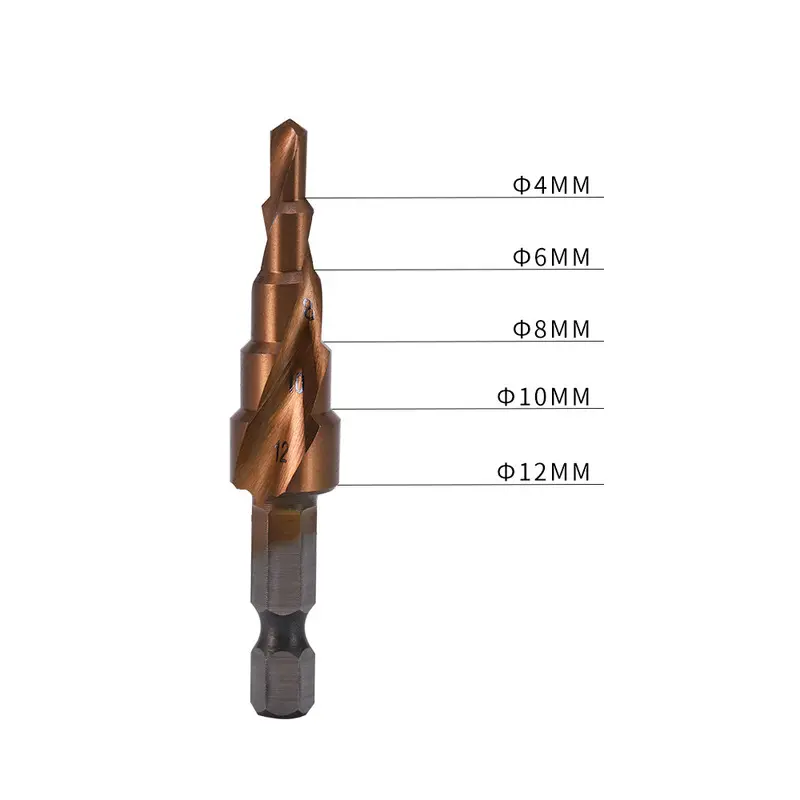

4-12mm

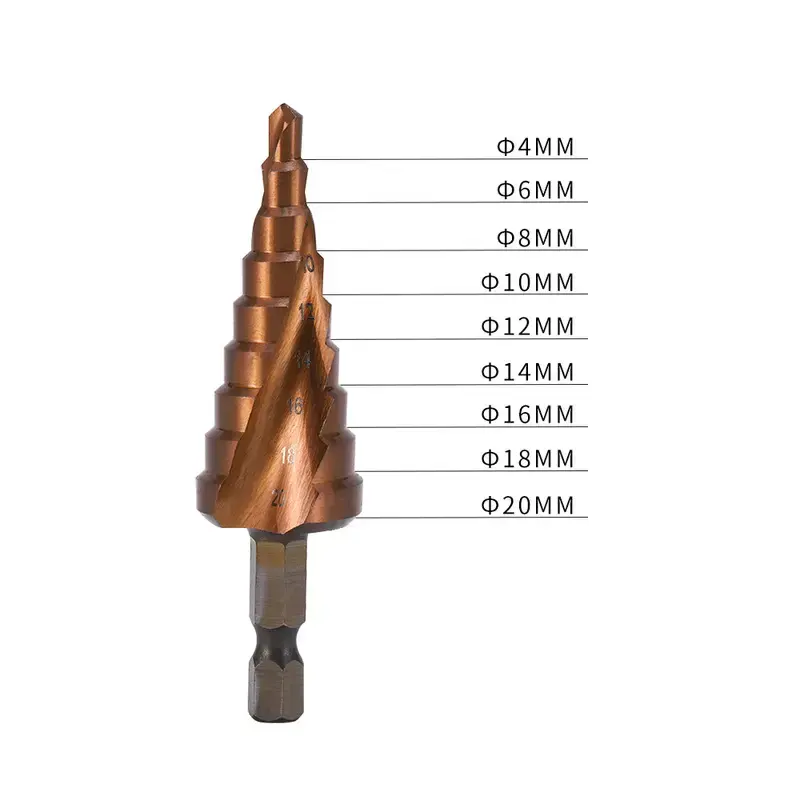

4-20mm
4-32mm





Detail-06
Detail-07
Detail-06
Main-06

Custom-tailor would be available against customers’ requirements

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

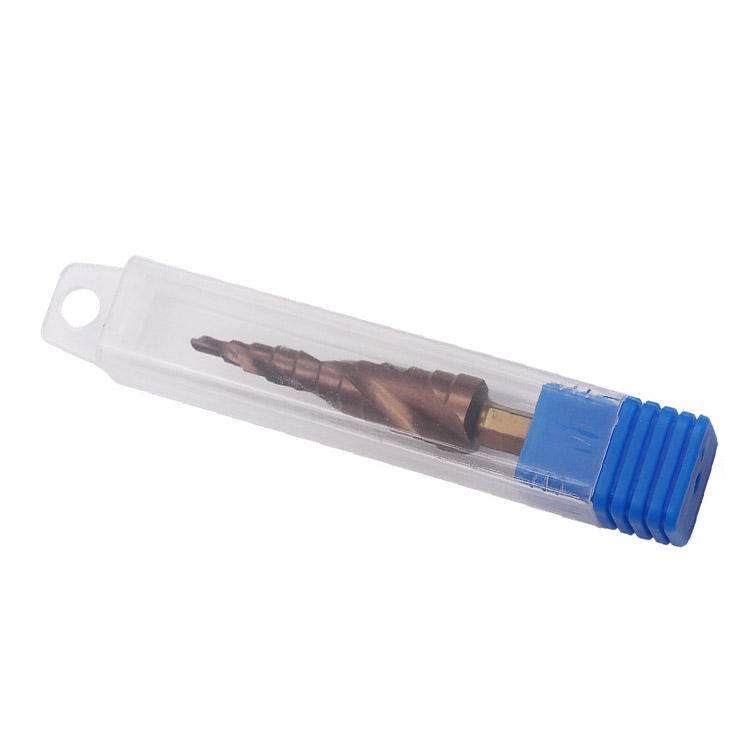

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

Main-07
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
