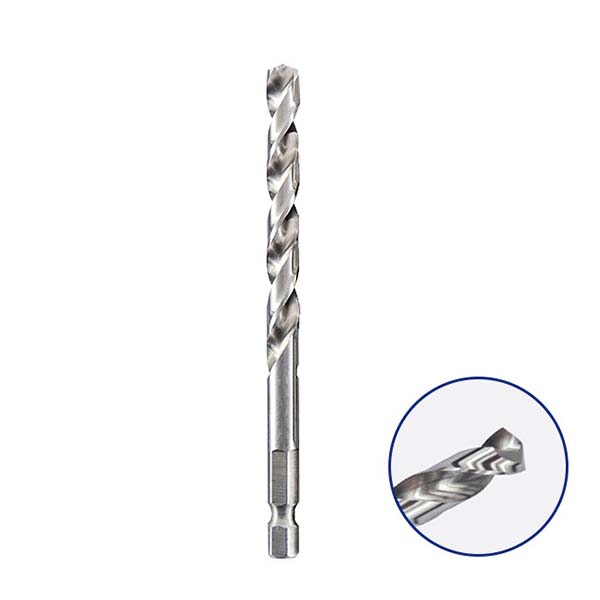

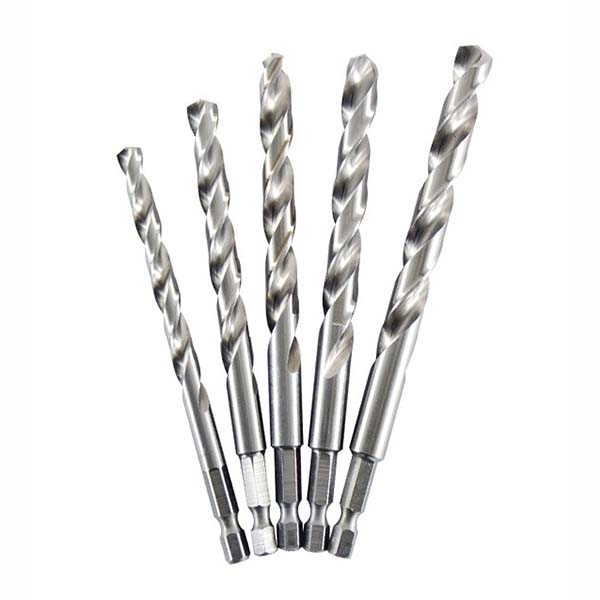

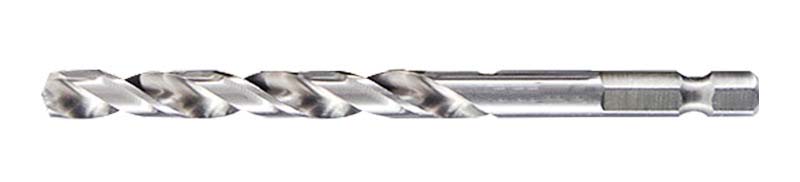

M35 HSS Cobalt Hexagonal Shank Twist Drill Bit 1-13mm For Stainless Steel

Short Description:

Suitable for drilling hardened steel, cast iron and stainless steel.

Very suitable for drilling hardened steel, stainless steel and cast iron.

The 135-degree bifurcated tip immediately starts drilling with a small force and eliminates “walking” on the work surface.

M35 cobalt-containing high-speed steel can prolong the life ofthe cutting edge and maintain the cutting life after regrinding

Send email to us

Product Detail

Product Tags

Product Information

HSS Twist Drill Bits
Manufacturing	Surface Finish						Sharpening
Manufacturing	White	Black	Black&White	TIN Coated	Amber	Black&Gold	118°	135°
Roll Forged		√	√				√	√
Rolled Polished	√	√	√	√	√		√	√
Fully Ground	√	√	√	√	√	√	√	√
Milled	√	√	√	√		√	√
Standards	DIN338, DIN340, DIN1897, DIN1869, DIN345, DIN341
Standards	Jobber Length, Taper Length, Screw Machine Length, Aircraft Extension, Taper Shank(ANSI)
Material	HSS4241, HSS4341, HSS9341, HSS6542(M2), HSS CO5%(M35), HSS CO8%(M42)
Shank	Straight Shank, Taper Shank, Three Flats Shank, Hexagonal Shank, 1/2" 3/8" Reduced Shank
Helix Angle	Type N, Type W, Type H
Rotating	Right Hand, Left Hand
Flute	Normal Parabolic

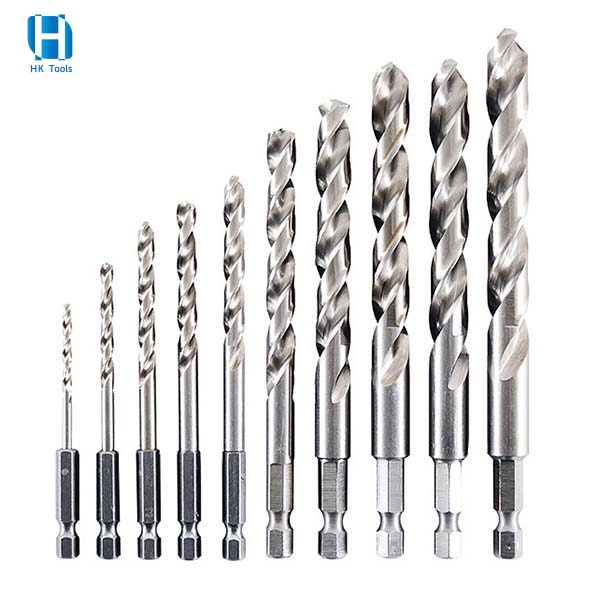

Product Size

Size	Flute Length	Overall Length	Diameter	Material	Shank
1	10.5	61.5	1	M35	Hex Shank
1.5	16.5	62.5	1.5	M35	Hex Shank
2	20	65.8	2	M35	Hex Shank
2.5	23	75.5	2.5	M35	Hex Shank
3	25	80	3	M35	Hex Shank
3.2	29	83	3.2	M35	Hex Shank
3.5	32	89	3.5	M35	Hex Shank
4	33.5	93	4	M35	Hex Shank
4.2	37.5	94	4.2	M35	Hex Shank
4.5	39	99	4.5	M35	Hex Shank
5	44	105	5	M35	Hex Shank
5.5	48	113	5.5	M35	Hex Shank
6	50	113	6	M35	Hex Shank
6.5	51.5	120	6.5	M35	Hex Shank
7	58	108.5	7	M35	Hex Shank
7.5	56	109.5	7.5	M35	Hex Shank
8	61.5	115.5	8	M35	Hex Shank
8.5	65	117	8.5	M35	Hex Shank
9	65.5	125	9	M35	Hex Shank
9.5	68.5	126	9.5	M35	Hex Shank
10	76	133	10	M35	Hex Shank
10.5	76	133	10.5	M35	Hex Shank
11	78	141	11	M35	Hex Shank
12	89	152	12	M35	Hex Shank
12.5	89	152	12.5	M35	Hex Shank
13	89	152	13	M35	Hex Shank

Custom-tailor would be available against customers’ requirements

Application

Scope of application

Applicable Machines

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
