M35 HSS-Co(5%) Titanium-Coated Centre Drill Bits Type-A 1.5-5mm For Metal Featured Image
  • M35 HSS-Co(5%) Titanium-Coated Centre Drill Bits Type-A 1.5-5mm For Metal
  • M35 HSS-Co(5%) Titanium-Coated Centre Drill Bits Type-A 1.5-5mm For Metal
  • M35 HSS-Co(5%) Titanium-Coated Centre Drill Bits Type-A 1.5-5mm For Metal
  • M35 HSS-Co(5%) Titanium-Coated Centre Drill Bits Type-A 1.5-5mm For Metal

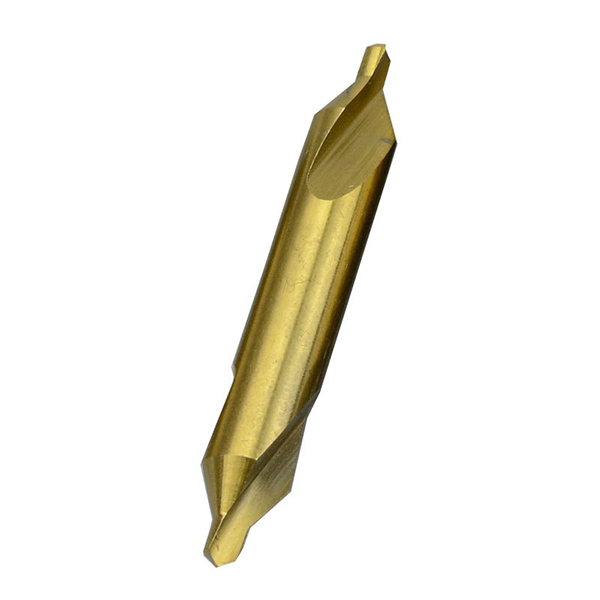

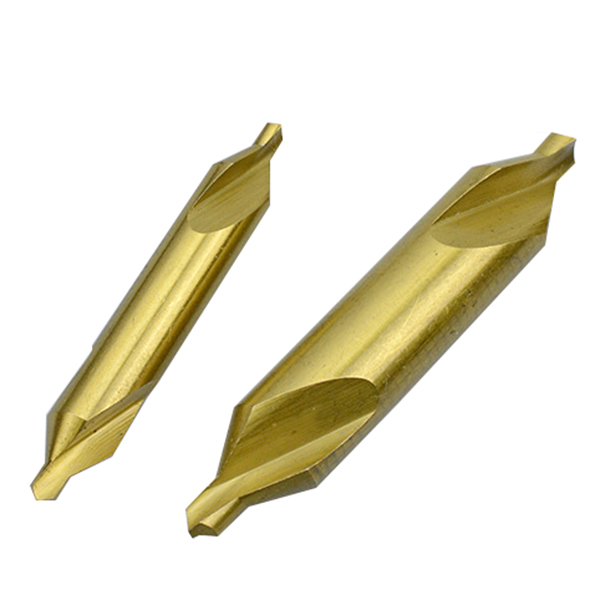

M35 HSS-Co(5%) Titanium-Coated Centre Drill Bits Type-A 1.5-5mm For Metal

Short Description:

Features:

The hardness of cobalt-containing center drill is HRC: 66-68 degrees

Can ensure the surface finish and precision of the processed workpiece

It can cut mold steel and stainless steel with heat treatment hardness of 40 degrees

The service life of the center drill is long, which greatly improves the working efficiency and reduces the production cost

Can be widely used in various machine tools for cutting work


Product Detail

Product Tags

Product Information

Product Name: 60 Degree DIN333 Type A HSS Center Drill Bit
Material: HSS4241,4341,6542(Co5%-M35,Carbide are Available)
Process: Fully Ground (Rolled are Available)
Flute: Straight Flutes(2 Flute is Available)
Surface: Tin-coated(Amber,Bright Finishing,Al TiN coated ,are Available)
Size: 1MM-6MM
Standard: DIN333A(DIN333B,DIN333R,Extra Long ,GOST 14952-75are Available)
Features: 1.Center drill bits can be used to make conical holes for a lathe center in order to make a starting point for a standard twist drill, designed to prevent the twist drill from walking, as well as for producing center holds in components or work pieces with require machining between centers.
2.Available for all Kinds of Materials: Metal, Alloy, Copper, Iron, Wood, Aluminum, and so on.
3.Durable and Resistance: Center drill bit is made of HSS high speed steel, with extremely sharp blade, low consumption and durable with impact resistance, wear resistance.
4.center drills have flutes and cutting points on both ends. this allows the user with the ability to reverse the drill and utilize both ends.
5.Easy cutting with high speed and excellent offtake of chips.suitable for products with straight flute,oblique flute and spiral fiute,etc.
6.60 degree countersink angle fits all standard centers.
7.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.

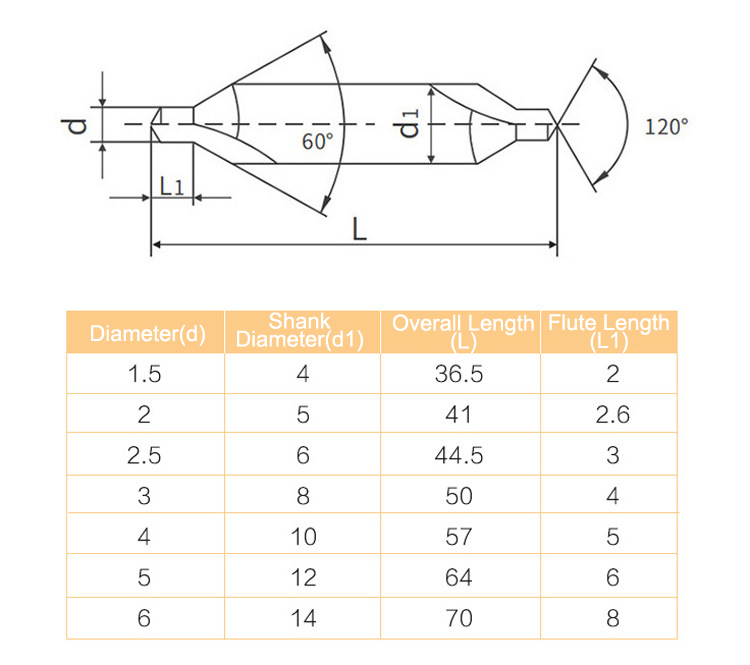

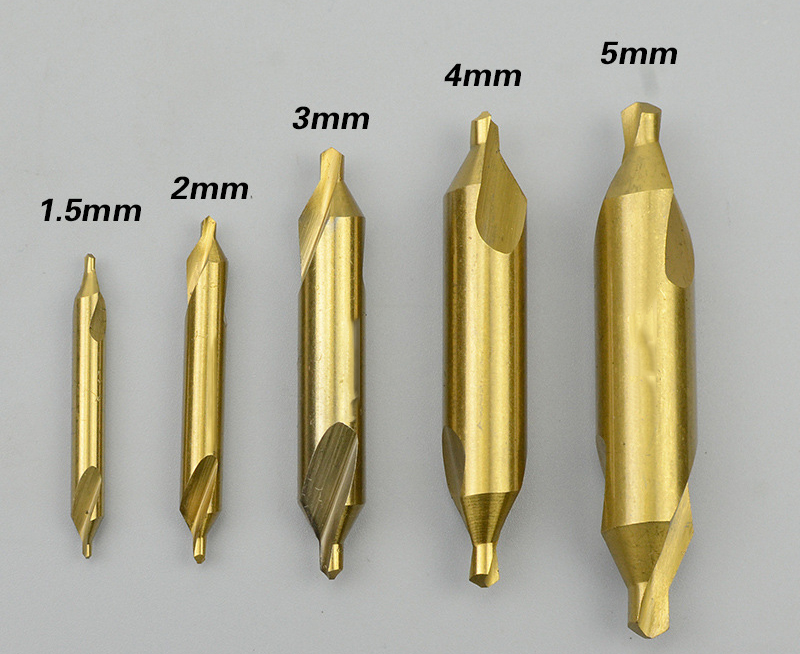

Product Size

Size
size

Custom-tailor would be available against customers’ requirements

Application

                                 Scope of application

Application  Machines

material
application machine

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

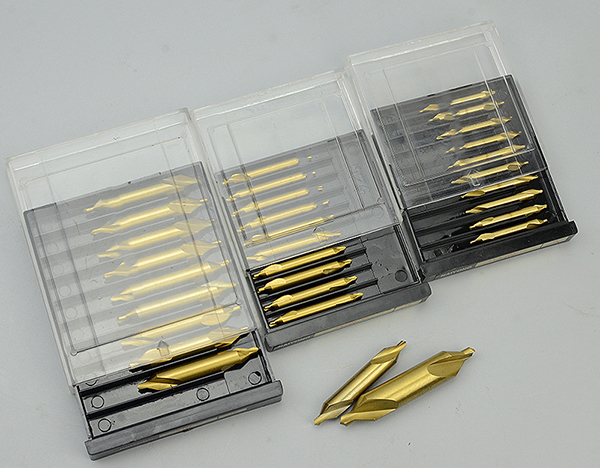

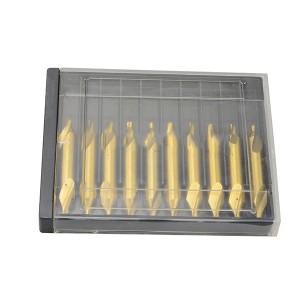

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

package
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
