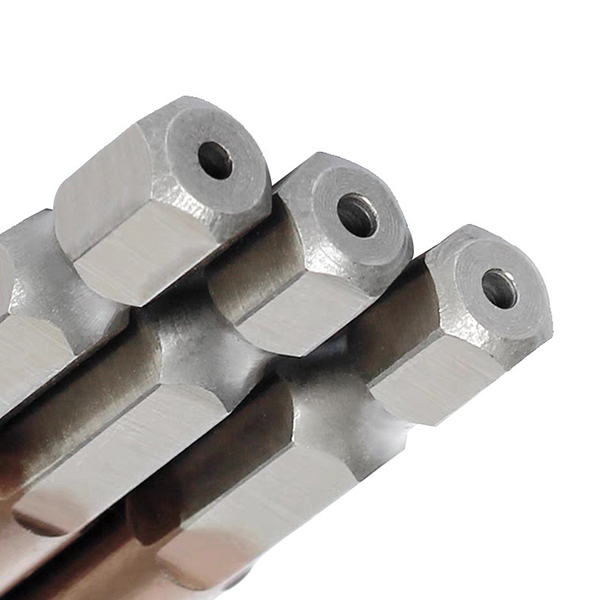

Metric Hex Shank Composite Machine Taps Set Cobalt Containing M6 M8 For Metal

Short Description:

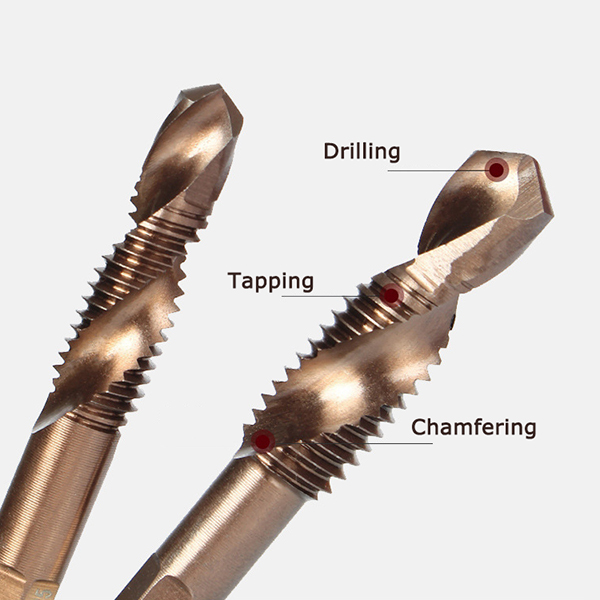

1.Complete hole drilling, tapping, deburring and countersinking in one operation with power drill saves labor and time.
2.Self-centering point, do not need assistant center drilling or center punching.
3.Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools.

Send email to us

Product Detail

Product Tags

Product Information

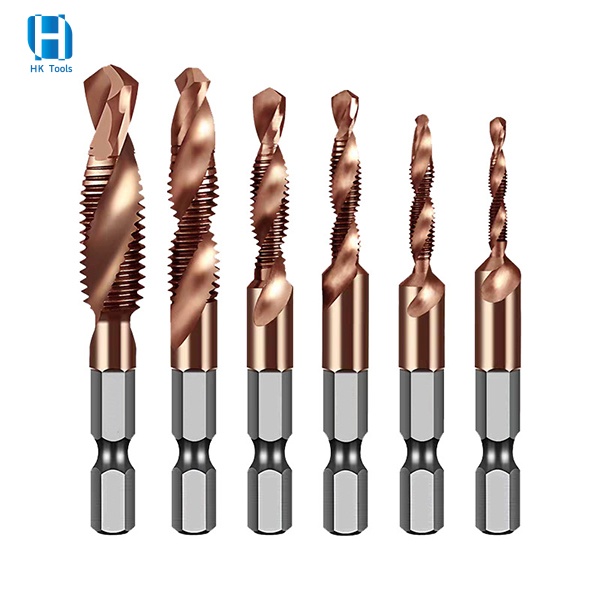

Product name	Composite Machine Taps Set
Item Name:	Spiral Flute HSS Machine Tap
Material:	High Speed Steel HSS Cobalt M35
Coated:	Titanium

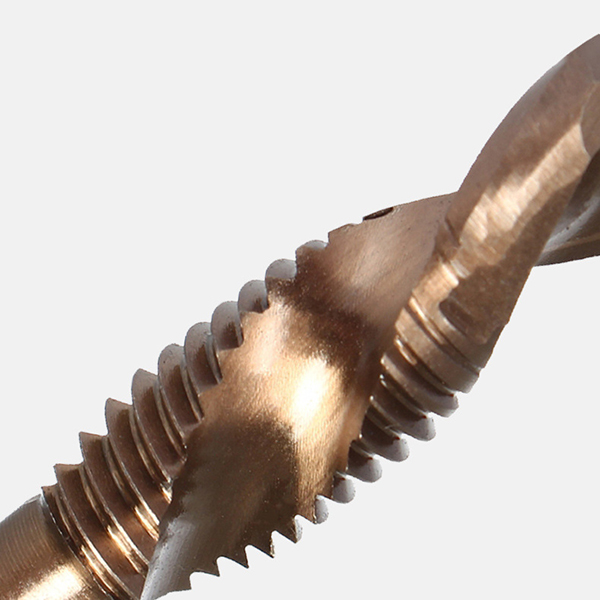

Flute Type:	Spiral Flute, helps evacuate chips up and out of the cut to reduce clogging
Pitch:	Coarse Pitch
Hole Type:	Blind Hole
Size:	M3 / M4 / M5 / M6 / M8 / M10
Working Machine:	Lathe, Radial Drilling Machine, Bench Drill Machine, Pillar Drill Machine, Vertical Milling Machine
Working Material	Hardened Steel, Stainless Steel, Carbon Steel, Aluminum, Copper, Iron

Product Size

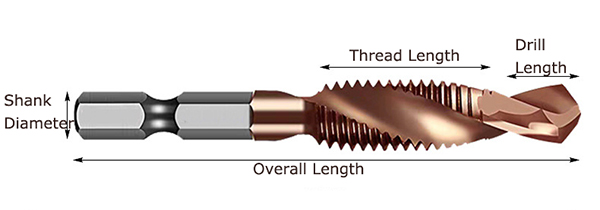

Size	Overall Length	Pitch	Drill Length	Thread Length	Shank Diameter
M3	65mm	0.5mm	7mm	13mm	6.3mm
M4	65mm	0.7mm	8mm	14mm	6.3mm
M5	69mm	0.8mm	9mm	15mm	6.3mm
M6	69mm	1.0mm	10mm	17mm	6.3mm
M8	72mm	1.25mm	14mm	20mm	6.3mm
M10	72mm	1.5mm	14mm	22mm	6.3mm

Custom-tailor would be available against customers’ requirements

Application

Scope of Application

Application Equipment

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
