Multi-functional Glass Drill Bit Triangle Shank For Ceramic Tile Concrete

Short Description:

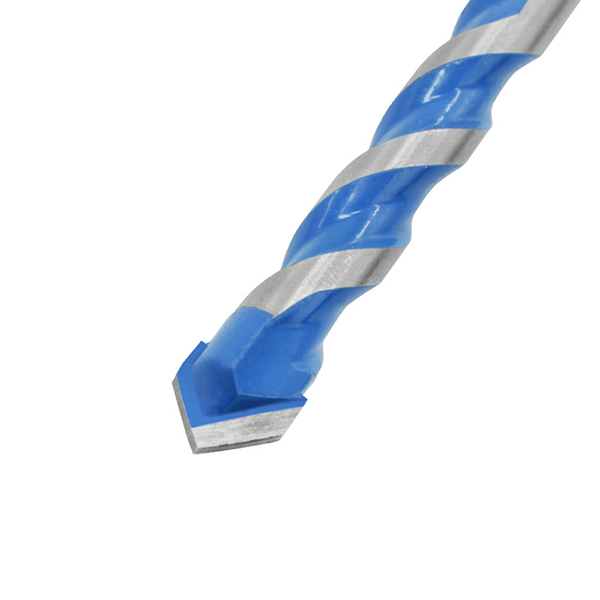

Advantage: these multifunctional masonry drill bits with Industrial Tungsten carbide tip are made for making holes on the concret wall,ceramic,marble,granite,tile,brick,stone,fiber cement,plastic,wood,and wall mirrors,also can drill in steel,metal,iron.Aluminium,these concrete drill bits are designed like Twist Drill Bit with Spit tip,drill fast.

Send email to us

Product Detail

Product Tags

Product Information

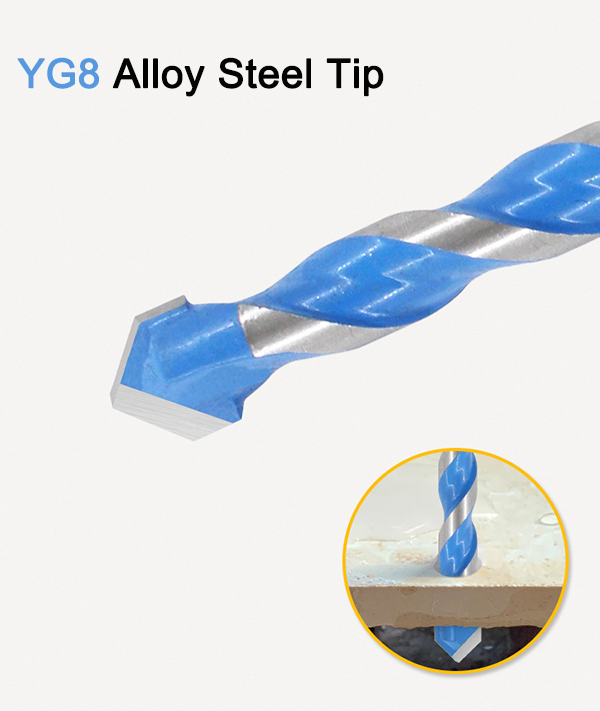

Material	Single Tungsten Carbide Tip & Carbon Steel Body
Process	Tungsten Carbide Tip Welded to Carbon Steel Body

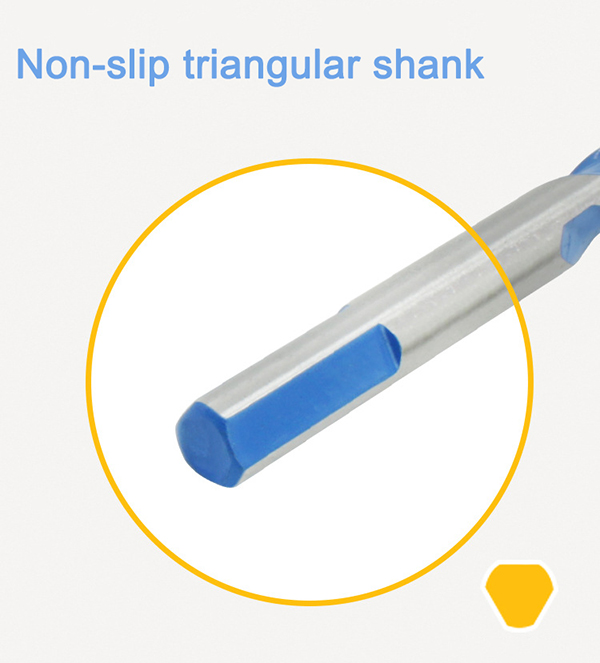

Shank	Three-Flat Shank (Round Shank and Quick Change Hex Shank are available)
Surface Finish	Sand Blasted, (Color Painted , Nickel Plated, Chrome Plated, Titanium Coated and Black Oxided are available)
Package	One Piece in One PVC Pouch, PVC Double Blister or PVC Blister Card
Features	1.Carbide-tipped tools feature cutting edges of carbide for wear resistance and a steel shank for toughness. 2.Three-Flat shank reduces slipping in standard chucks. 3.Color Painted for high corrosion resistance and low friction. 4.Twist flute design for chip ejection and increase the efficiency of drilling holes. 5.Can not be used on hammer mode, for use with rotary drills only. 6.Best result with lower rpm and good cooling with water, vinegar and turpentine

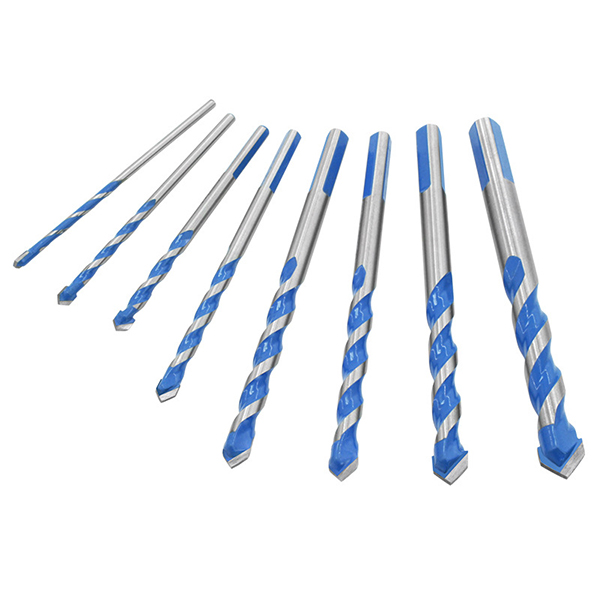

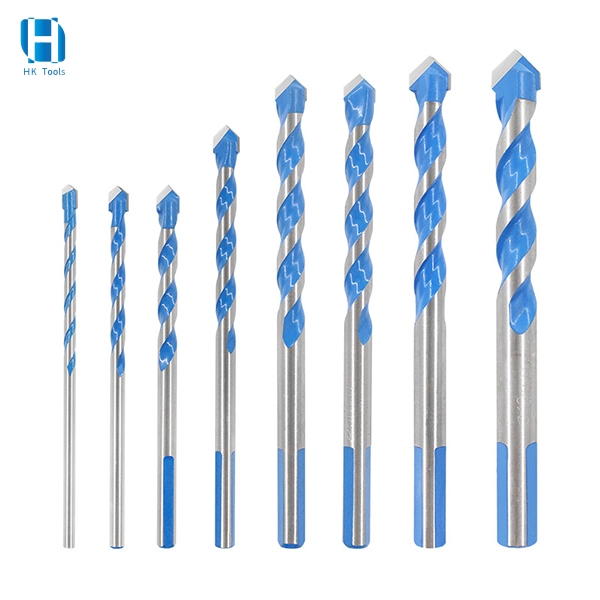

Product Size

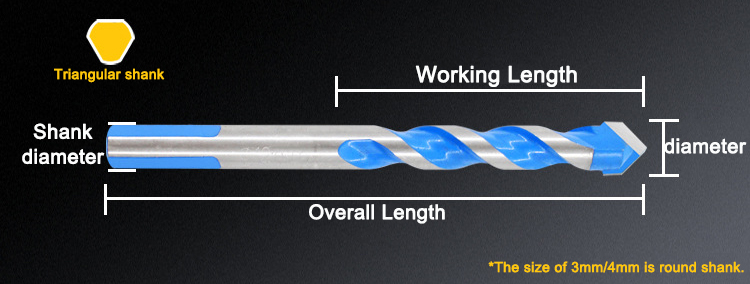

Size	Diameter	Working Length	Shank Diameter	Overall Length	Weight
3mm	3mm	43mm	2.8mm	83mm	4g
4mm	4mm	43mm	3.5mm	83mm	6g
5mm	5mm	43mm	4mm	83mm	9g
6mm	6mm	54mm	5mm	100mm	14g
7mm	7mm	66mm	6.5mm	116mm	29g
8mm	8mm	66mm	6.5mm	116mm	29g
10mm	10mm	68mm	7mm	118mm	37g
12mm	12mm	70mm	9mm	120mm	58g

Custom-tailor would be available against customers’ requirements

Application

Scope of application

Application Machines

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
