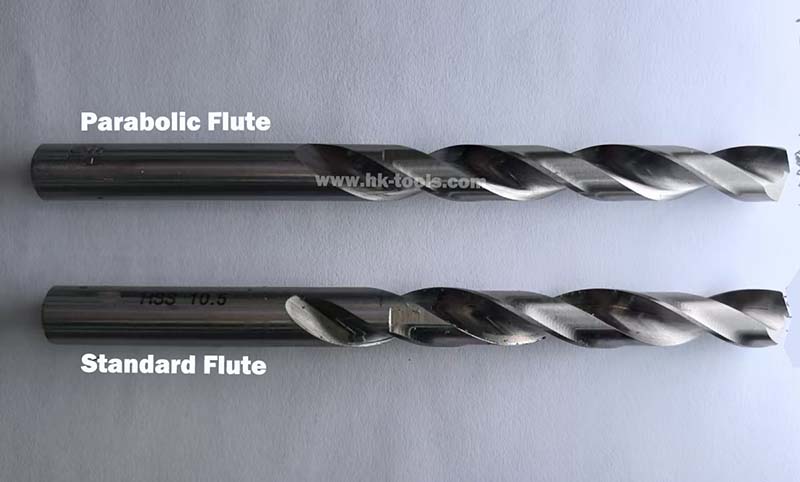

Parabolic Drill Bit vs Standard Flute Drill Bit
When comparing parabolic flute twist drills and standard flute twist drills, the primary distinction lies in their flute geometry and the applications they are designed for. Here's a breakdown of their key differences:
1. Flute Geometry:
■Parabolic Flute:
▪Features a deeper, broader flute with a parabolic curve.
▪Allows for more efficient chip evacuation, particularly in deep-hole drilling.
▪Has a smoother transition between the cutting edge and the flute
■Standard Flute:
▪Traditional spiral or helical flute design with a more uniform and less aggressive profile.
▪Typically shallower flutes compared to parabolic designs.
▪Suited for general-purpose drilling.
2. Applications:
■Parabolic Flute Drills:
▪Ideal for deep-hole drilling (typically beyond 3x the drill diameter).
▪Perform well in soft, gummy materials like aluminum, copper, and plastics, where chip evacuation is crucial.
▪Suitable for high-speed machining where heat and chips need to be managed effectively.
■Standard Flute Drills:
▪General-purpose use across a wide variety of materials and applications.
▪Preferred for shorter hole depths and harder materials where chip removal isn't as challenging.
3. Chip Evacuation:
■Parabolic Flute:
▪The larger flute volume facilitates faster chip removal, reducing the risk of clogging or overheating.
▪Minimizes the need for pecking in deep holes.
■Standard Flute:
▪Provides adequate chip clearance for shallow to moderate-depth holes.
▪May require pecking for deeper holes to avoid chip buildup.
4. Strength and Durability:
■Parabolic Flute:
▪While the broader flutes improve chip evacuation, they can slightly reduce the structural rigidity of the drill, making them less ideal for harder materials.
■Standard Flute:
▪Better suited for drilling harder materials due to their stiffer structure.
▪More resistant to deflection and breakage under high loads.
5. Cost and Availability:
■Parabolic Flute:
▪Generally more expensive due to specialized geometry and applications.
•Less common in general hardware stores but readily available for industrial use.
■Standard Flute:
•Widely available and cost-effective.
•Common for general workshop and hobbyist use.
Summary of Selection:
•Choose parabolic flute drills for deep-hole drilling, high-speed machining, or softer materials where chip evacuation is critical.
•Opt for standard flute drills for general-purpose drilling, especially in harder materials or shallow depths.
