Popular HRC 55 4 Flutes Square End Mill safety milling cutters

Short Description:

An end mill is a type of milling cutter, a cutting tool used in industrial milling applications. It is distinguished from the drill bit in its application, geometry, and manufacture. While a drill bit can only cut in the axial direction, a milling bit can generally cut in all directions, though some cannot cut axially.

End mills are used in milling applications such as profile milling, tracer milling, face milling, and plunging.

Send email to us

Product Detail

Product Tags

Product Information

Product Name	HRC55 4 Flute Standard Length Carbide square End Mills Cutter safety
Material	carbide.
Process	Milled
Flute Type	4Flutes
Size	Shank diameter: 4-12mm, Overall length: 50-120mm
Surface Finish	Bright Finish (AlTiN, Tin, are Available)
End type	Center cutting
Package	One Piece in One Plastic Calm Shell
Features	1.Coating: TiSiN, containing silicon, with high surface hardness and high thermal resistance 2.Spiral angle 35 degrees, adaptable to the material and hardness of the material to be processed; 3.Widely used in mould and product processing, with high-cost performance ratio; 4.Chamfered edge, not easy to break, widely used in high-speed processing. 5.Suitable for carbon steel, alloy steel, cast iron and hardened steel etc.

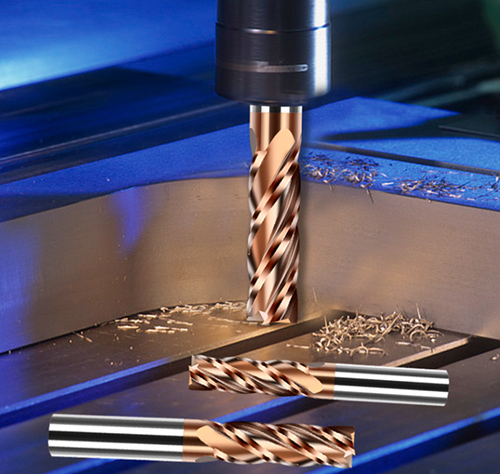

Machining center	CNC machining/NC machining/CNC engraving and milling machine/High speed machine/Wooding work cutters
Application	Suitable for carbon structural steel, mold steel, alloy steel and below HRC60 steel

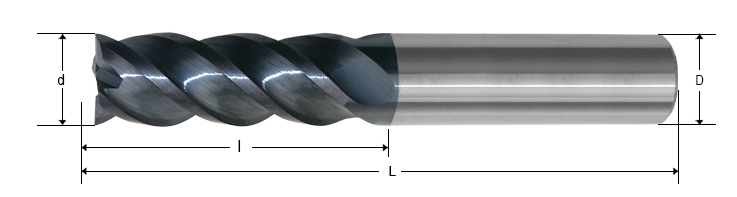

Product Size

Outside Diameter	Flute Length	Overall Length	Shank Diameter	Outside Diameter	Flute Length	Overall Length	Shank Diameter
d	l	L	D	D(mm)	l(mm)	L(mm)	D(mm)
1	3	50	4	18	48	100	18
1.5	4.5	50	4	20	50	100	20
2	6	50	4	2	9	60	6
2.5	7	50	4	2.5	10	60	6
3	8	50	4	3	12	60	6
3.5	10	50	4	3.5	15	60	6
4	11	50	4	4	16	60	6
5	13	50	6	5	25	75	6
6	16	50	6	6	25	75	6
7	17	60	8	7	30	75	8
8	20	60	8	8	30	75	8
9	25	75	10	8	35	100	8
10	25	75	10	10	40	100	10
11	28	75	12	12	45	100	12
12	30	75	12	14	45	100	14
14	35	80	14	16	65	150	16
16	45	100	16	20	75	150	20

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
