S4 Flutes SDS Plus Hammer Drill Bit Tungsten Carbide For Concrete Wall Stone Featured Image
  • S4 Flutes SDS Plus Hammer Drill Bit Tungsten Carbide For Concrete Wall Stone
  • S4 Flutes SDS Plus Hammer Drill Bit Tungsten Carbide For Concrete Wall Stone
  • S4 Flutes SDS Plus Hammer Drill Bit Tungsten Carbide For Concrete Wall Stone

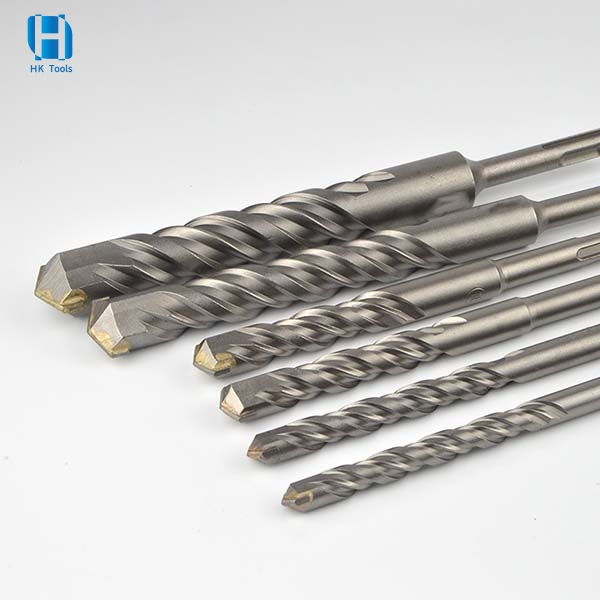

S4 Flutes SDS Plus Hammer Drill Bit Tungsten Carbide For Concrete Wall Stone

Short Description:

1.For drilling in granite, concrete, stone, masonry, tiles and marble.

2.Self-centering tip for clean entry and fast starts. Stays sharp longer.

3.SDS PLUS drill bits are machined from chrome steel fitted with carbide insert brazed at a very high temperature(1120 ºC ) to withstand severe heating when drilling hard materials.

4.Fits hammer drills with SDS-Plus chucking and 2-slot chucking system. It can be used with most popular types of Electric Hammer in the market.


Product Detail

Product Tags

Product Information

Product Name Carbide Single Tip SDS Plus Hammer Drill Bit for Concrete
Body Material 40Cr Steel with Heat Treatment
Tip Material Tungsten Carbide
Process Milled Flutes and Welded Tip
Tip Type Single Tip
Flute Type S4 Flute,L Flute, U Flute

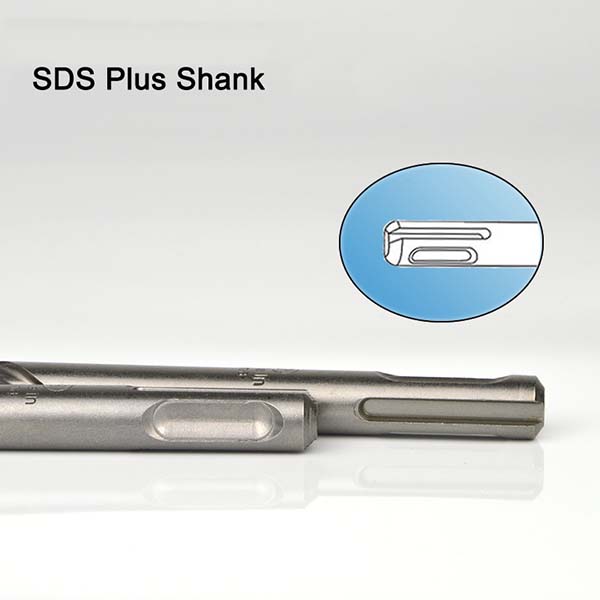

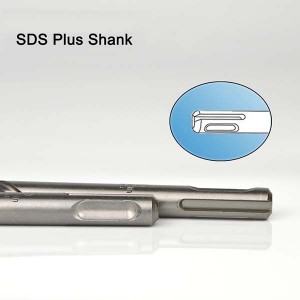

Shank  SDS Plus Shank
Surface Finish Sand Blasted
Package in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell, Metal Box
Features 1.Premium 40Cr steel with heat treatment improves core strength for maximum durability and extended life.
2.Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling.increases strength and durability.
3.Copper braze material gives high heat resistance for reduced tip loss,Carbide tip securely embedded in the steel body.

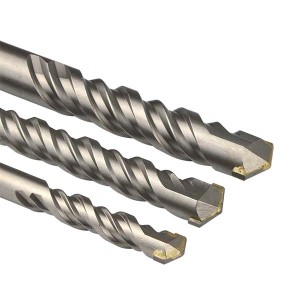

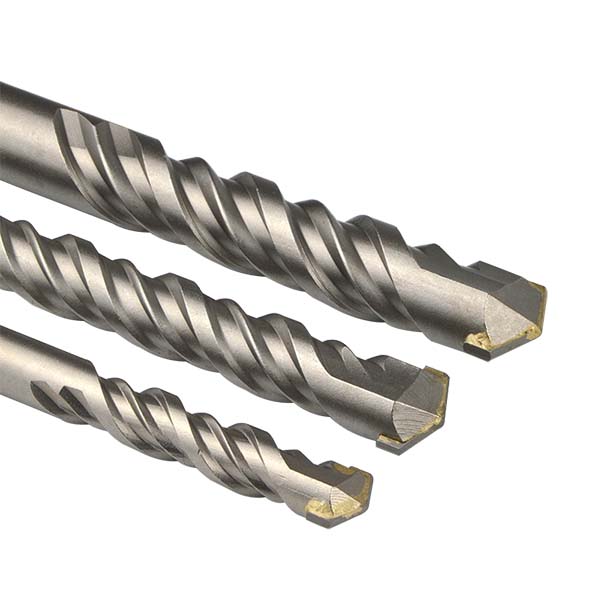

4.fold spiral flute (S4) for rapid drilling dust removal. With even less vibration and more precise guiding, the stability and service life of the drill bit are increased.

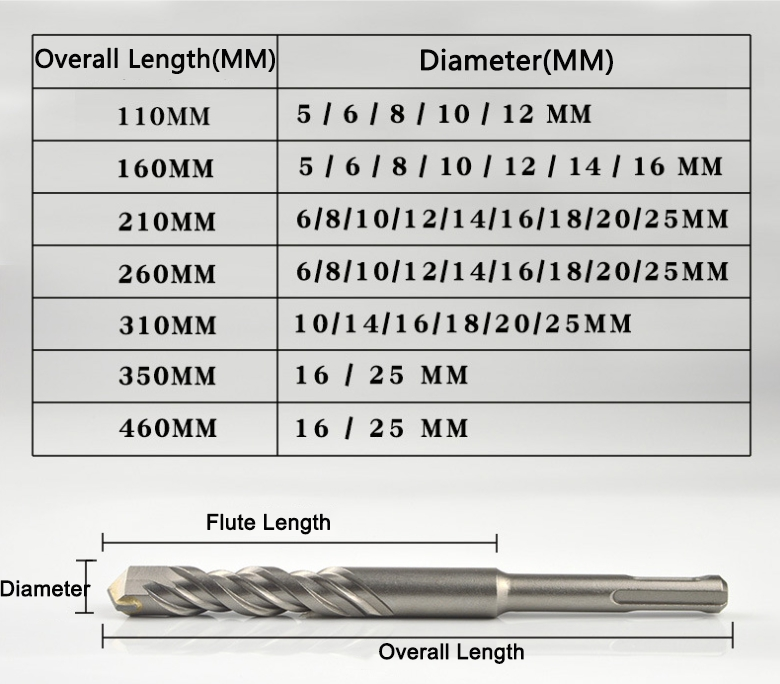

Product Size

sds plus drill bit

Custom-tailor would be available against customers’ requirements

Application

           Scope of application

material

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

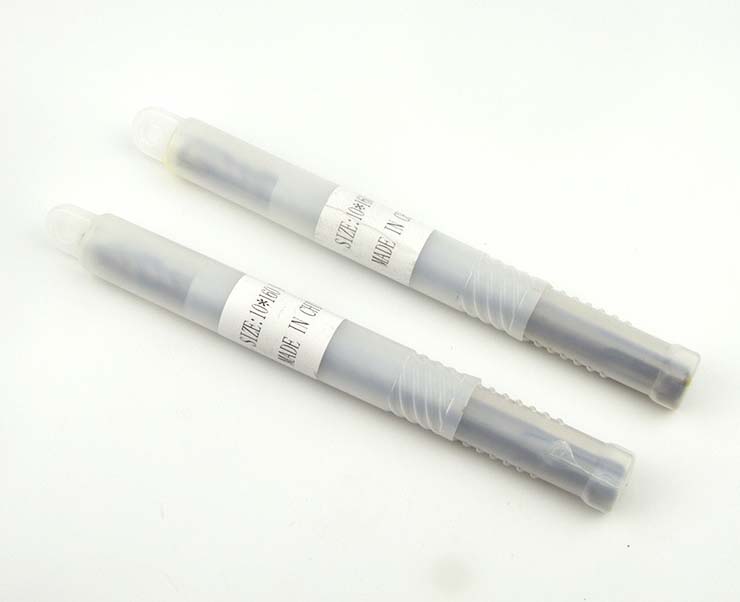

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

packing
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
