12mm-40mm SDS Max Hammer Drill Bits Single Tip”-” For Concrete

Short Description:

For best performance use slow speed and apply enough feed pressure to keep the drill cutting

Fast spiral flutes speed up dust removal

For hard concrete aggregates and similar materials


Product Detail

Product Tags

Product Information

Product Name 12mm-40mm SDS Max Hammer Drill Bits Single Tip"-" For Concrete
Shank Material 40cr alloy steel
Tip Material YG8C, YG8
Tip Type single tip/ cross tips
Surface Finish Sand Blasted , Zinc Plated, Nickel Plated, Chrome Plated, Copper Plated, Black & Bright ,
Black Oxide are available, Ni/Zin/Cr/Cu/Tin coated.
Process Milled Flutes and Welded Tip
Flute Type R Flute, L Flute, S4 Flute, Fast Spiral Flute are available
Shank Round Shank ,Quick Change Hex Shank, Three-Flat Shank, Double R Hex Shank, Tapcon Shank, Flexible Shank, Extra Long Shank are
available.
Package PVC bag(single sleeve). plastic tube, plastic box(5/10pcs), PVC(5/10pcs)
Features 1. Fast driling professional bit for SDS Max systems
2. Multi Cutter design (5/8" and above) for faster drilling, longer life and rounder holes
3. Double narrow land flute design for faster dust extraction, less vibration, less friction and more impact energy to the tip
4. Tool shaft is heat treated, annealed and shot peaned for longer life
5.Premium grade hammer carbide for use with heavy duty hammers

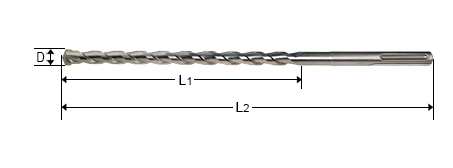

Product Size

size

Diameter

Flute Length

Overall Length

D

L1

L2

12

200

340

12

400

540

13

250

390

13

400

540

14

200

340

14

400

540

15

200

340

15

400

540

16

200

340

16

400

540

16

770

920

18

200

340

18

400

540

19

250

390

19

400

540

20

200

320

20

400

520

20

800

920

22

200

320

22

400

520

22

800

920

24

200

320

24

400

520

25

200

320

25

400

520

25

800

920

26

250

370

26

400

520

28

250

370

28

450

570

30

250

370

30

450

570

32

250

370

32

450

570

32

800

920

35

450

570

38

450

570

40

450

570

Custom-tailor would be available against customers’ requirements

Application

         Scope of application

material

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

packing-1
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
