Spiral Flute HSS Machine Taps for Tapping Buttress Thread Tools

Short Description:

Spiral flute taps are taps similar to twist drills because they have an open spiral shape. Due to the good drilling ability of spiral groove taps in blind holes, they are widely used in high speed, automatic tapping, and other drilling applications.


Product Detail

Product Tags

Product Information

Product name

Spiral Flute HSS Machine Taps for Tapping Buttress Thread Tools

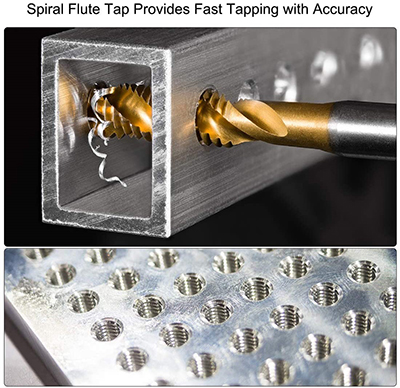

 spiral flute HSS machine taps1

Customized support

OEM

Place of Origin

jiangsu

Type

TAP

Flute type

Spiral flute

Material

HSS 4341,HSS 6542,HSS M35

Package

Plastic Bag, Plastic Hook, Plastic Tube

Application

tapping

Process

Fully ground,milled

MOQ

500pcs

Hardness

62-67

Standard

ISO,DIN,JIS,UNC,BSW

Threads Types

standard

Coating

Titanium,nitriding,bright finish



Features

1.It can effectively prevent chips from accumulating at the bottom of the hole.

2.When the machining process is interrupted, restarting tapping becomes easier

3.HSS tap can provide a right solution for tapping internal threads in soft/middle steels, ferrous and nonferrous materials.

Product Size

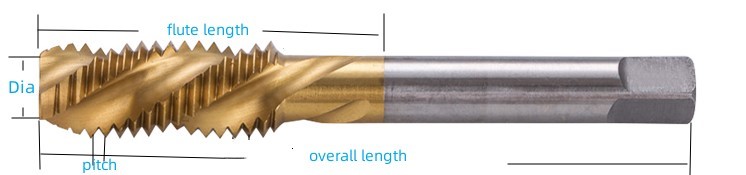

spiral flute HSS machine taps size
Diameters (mm) Flute length (mm) Overall length(mm) Ptich (mm)
M3 18.0 56 0.5
M4 22.2 63 0.7
M5 23.5 70 0.8
M6 28.2 80 1.00
M8 30.7 90 1.25
M10 33.5 100 1.50
M12 37.0 110 1.75
M14 44.5 110 2.00
M16 46.0 110 2.00

Product Application

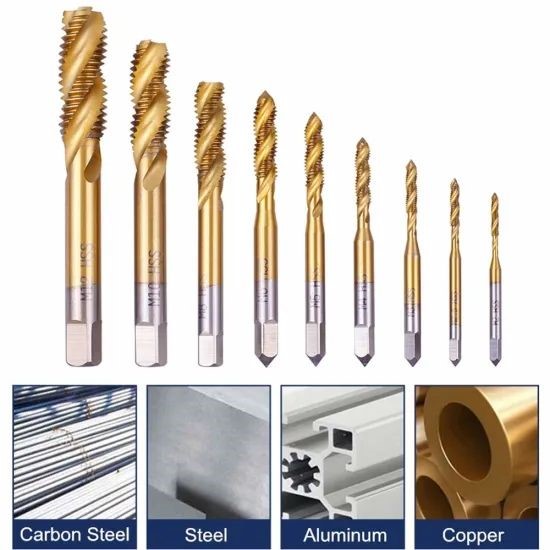

HSS Spiral flute taps are used to cut carbon steel ,steel,aluminum,copper

spiral flute HSS machine taps application

Application Equipment

applicable equipment
